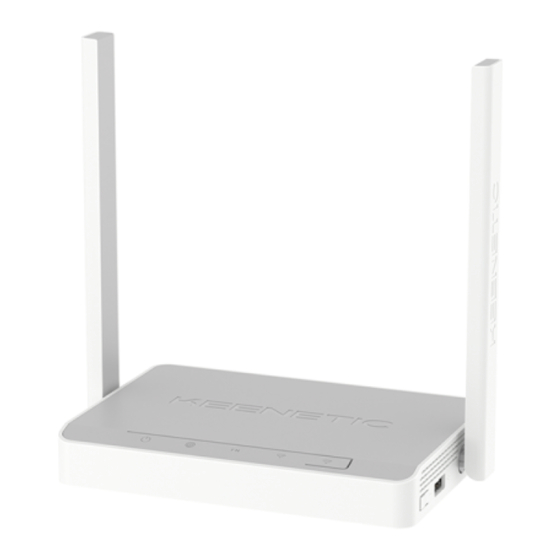

KeeNetic LAUNCHER DSL Quick Start Manual

KEENETIC
LAUNCHER Ñ
Quick Start Guide
N300 Mesh Wi-Fi VDSL2/ADSL2+ Modem Router with
a 3-Port Fast Ethernet and 1-Port Gigabit Ethernet
Smart Switch, USB Port
Model: KN-2012
2
1
3 2 1 0 DSL
3
10:00
Welcome
to Your Keenetic
4
Next
5
Installing Your Keenetic Launcher DSL
1. Position your Keenetic Launcher DSL (hereinafter 'Keenetic device') within
cable lengths of phone and power outlets. Place your Keenetic device
in an open area for better wireless coverage.
2. Connect your Keenetic device to a power source. Check that both the
Status LED C and Wi-Fi LED D are illuminated and not blinking.
3. Connect a mobile device to your Keenetic device via Wi-Fi. The default
Wi-Fi name (SSID) and the Wi-Fi password are printed on your Keenetic
device's back label along with a QR code that will automatically connect
your mobile device to the Keenetic device's Wi-Fi when scanned.
Alternatively, connect a computer to any gray Ethernet port on your
Keenetic device using the included Ethernet cable.
4. Once connected, an Initial Setup Wizard window will appear on your
mobile device / computer. If the Wizard does not appear, using a browser
go to my.keenetic.net.
Note: If the Initial Setup Wizard doesn't appear, please refer to the
Frequently Asked Questions section below.
5. In the Initial Setup Wizard window select the configuration option and
follow the setup instructions.
For technical support and other information, please visit
help.keenetic.com
