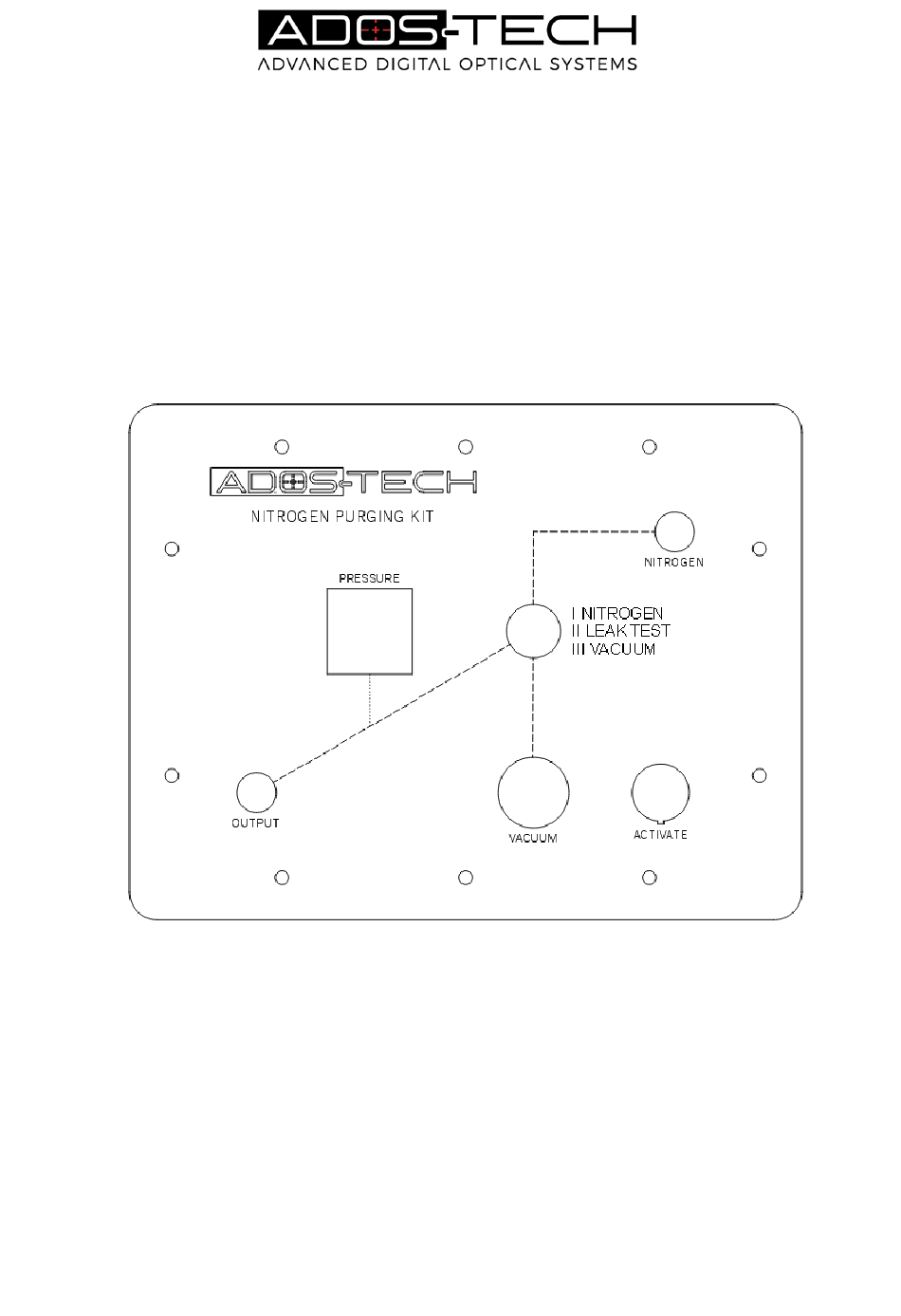

  • Page 1 NITROGEN PURGING KIT USER MANUAL...

  • Page 2: Table Of Contents

    Contents Safety Introduction Package Description Set-up Operation...

  • Page 3: Safety

    Safety • Purging equipment must be used with all safety precautions required using pressurized equipment and devices. • Purging equipment is delivered without gas cylinder or other pressurized containers. • Purging kit operator must be instructed to work with pressurized containers and gasses used in purging.

  • Page 4: Introduction

    Introduction 1. Nitrogen purging kit is intended for purging various devices with nitrogen gas and removing moisture and oxygen. Block diagram explains main components and work principle of equipment. (Figure 1) Figure 1. Purging kit block diagram 2. Main specifications for the purging kit are listed in Table 1.

  • Page 5: Package

    Package Nitrogen purging kit package contents show in Figure 2: 1. Control box 2. Nitrogen pressure regulator 3. Pneumatic tubes 4. Battery charger 5. Purging adapter 6. Manual...

  • Page 6: Description

    Description Main functions and components explanation: Connections. 1.1 Nitrogen gas 6mm tube inlet 1.2 Nitrogen/vacuum 6mm tube outlet 1.3 Battery charger DC connector (back of the device) 1. Switches 1.1 Power switch activates device 1.2 Vacuum switch activates vacuum pump 1.3 Mode selector switches between nitrogen, leak test and vacuum 2.

  • Page 7: Set-Up

    Equipment set-up 1. Prepare nitrogen supply: 1.1 Adjust gas tank pressure regulator to required pressure. Different devices and methods require different pressures. Example, when purging night vision devices pressure should not exceed 3 PSI of nitrogen. ± 1.2 Connect nitrogen gas tube to pressure regulator at tank side, then connect other end of the tube to nitrogen inlet of the purging kit.

  • Page 8: Operation

    Operation Before operating purging kit equipment set-up must be completed. 1. Preparation for operation 1.1 Turn on purging kit by pressing ACTIVATE switch. 1.2 Check nitrogen pressure on regulator on the tank. 1.3 Switch purging kit mode selector to middle position LEAK TEST. 1.4 Connect tube from nitrogen pressure regulator to NITROGEN inlet of purging kit.
