Summary of Contents for Armada Power Optimizer LCS2400 Wi-Fi

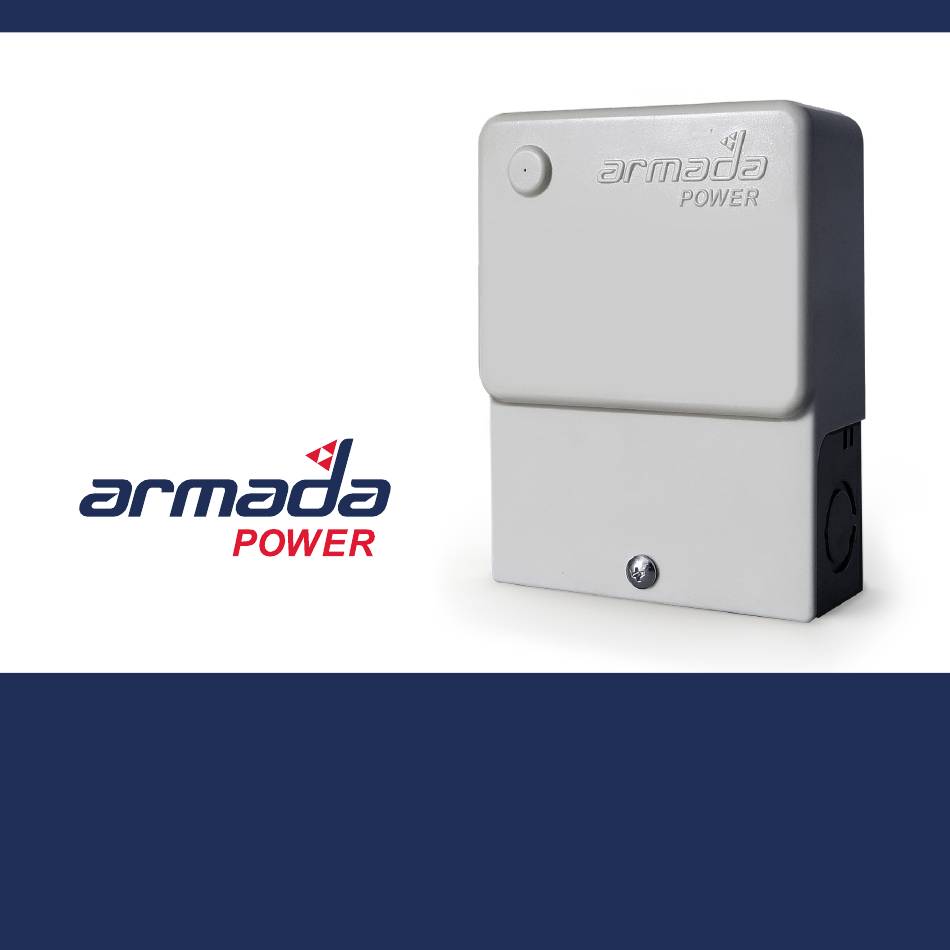

- Page 1 Armada Power Optimizer™ Electric Water Heater Installation Guide Model LCS2400 Wi-Fi or LCS2400 Wi-Fi Cellular Hybrid...
- Page 2 Armada Power Optimizer™ Installation Guide | Welcome Welcome Thanks for purchasing the Armada Power Optimizer.™ We’re excited to help you turn your electric water heater into one of the smartest appliances in your home. Please read the Safety Considerations and all instructions in this Installation Guide carefully before installing the Armada Power Optimizer™.
-
Page 3: Table Of Contents
Armada Power Optimizer™ Installation Guide | Table of Contents The Armada Power Optimizer Installation Guide ™ Before You Get Started What’s in the Box Page 4 What You’ll Need Page 4 For Your Safety Page 5 Installation Instructions Section 1: Disconnect Power & Inspect Tank Page 6 Section 2: Optimizer™... -
Page 4: What's In The Box
Armada Power Optimizer™ Installation Guide | Before You Get Started What’s in the Box: What You’ll Need: • 1x The Armada Power Optimizer • A Set of Screwdrivers • 2x Temperature Sensors (Thermistors) • A Hex Nut Driver • 2x Temperature Sensor Sleeves (Thermistor Sleeves) •... -
Page 5: For Your Safety
*By attempting to install or otherwise use the Armada Power Optimizer™ you agree to release, indemnify, and hold harmless Armada Power from any claims or liabilities arising out of or in connection with your failure to adhere strictly to the requirements, procedures and/or safety recommendations set forth herein and/or from any negligent... -
Page 6: Section 1: Disconnect Power & Inspect Tank
Section 1 | Disconnect Power & Inspect Tank Proceed with caution and ensure all safety measures are in place before beginning the installation of the Armada Power Optimizer™. Turn off all power before initiating any electrical installation. Directions Thoroughly inspect the site for damage, leaks, or excessive corrosion. -
Page 7: Section 2: Optimizer™ Mounting
Section 2 | Optimizer™ Mounting Ensure you have completed Section 1 and that the power supply to the water heater has been fully disconnected. Preferred Method (Tank Top) Directions Figure 3 - Cover Screw Remove the Optimizer™ cover by removing the top screw and sliding the plastic shell from the metal base (Figure 3). -
Page 8: Alternate Method (Wall Or Other Surface)
Section 2 | Optimizer™ Mounting Ensure you have completed Section 1 and that the power supply to the water heater has been fully disconnected. Alternate Method (Wall or Other Surface) It is sometimes advantageous to mount the Optimizer™ on a nearby wall or other surface due to clearance issues on Figure 6 - Cover Screw top of the tank. -
Page 9: Section 3: Sensor Connection & Lug Verification
Section 3 | Sensor Connection & Lug Verification Directions Connect the Leak Sensor to the leak sensor port (Figure 9 and Figure 11 #1). Connect both Temperature Sensors (Thermistors) to the temperature sensor ports (Figure 10 and Figure 11 #2). There are two slots on each side of the metal base (Figure 12). Slide the groove on each Temperature Sensor (Thermistor) strain relief into a strain relief slot and check for Figure 9 - Leak Sensor proper placement. Proper placement will resemble (Figure13). -
Page 10: Section 4: Wiring
Section 4 | Wiring Do you have a Single-Phase or a 3-Phase water heater? The LCS2400 Optimizer™ is intended to operate on any single-phase (120V, 208V, 240V) dual or single-element water heater rated 5500W or less. The Optimizer™ is also compatible with 3-phase water heaters wired for non-simultaneous single-phase operation. The easiest way to determine what type of water heater the Optimizer™... -
Page 11: 2-Wire Source No Red Wire (120V/208V/240V Single-Phase Tank)
Section 4 | Wiring 2-Wire Source Red Wire (120V / 208V / 240V Single-Phase Tank) Directions Push the source power cable through the hole previously punched out and secure it with the lever nut wire connector. Connect the power wiring as shown in (Figure 16). Once the wires are connected, give them a final check to ensure that the insulation is not cut and that the wires are properly secured in the wire connectors. With the breaker still in the off position, use a multimeter in resistance mode and verify that there are no short circuits between any of the terminals of the Optimizer™... -
Page 12: 3-Wire Source With Red Wire (208V/240V Single-Phase Tank)
Section 4 | Wiring Continued 2-Wire Source WITH Red Wire (120V / 208V / 240V Single-Phase Tank) Directions Push the source power cable through the hole previously punched out and secure it with the lever nut wire connectors. Connect the power wiring as shown in (Figure 17). Once the wires are connected, give them a final check to ensure that the insulation is not cut and that the wires are properly secured in the lever nut connectors. -
Page 13: 2-Wire Source No Red Wire (3-Phase Tank)
Section 4 | Wiring Continued 3-Wire Source Red Wire (3-Phase Tank) Directions Push the source power cable through the hole previously punched out and secure it with the lever nut wire connectors. Connect the power wiring as shown in (Figure 18). Once the wires are connected, give them a final check to ensure that the insulation is not cut and that the wires are properly secured in the lever nut connectors. With the breaker still in the off position, use a multimeter in resistance mode and verify that there are no short circuits between any of the terminals of the Optimizer™... -
Page 14: 3-Wire Source With Red Wire (3-Phase Tank)
Section 4 | Wiring Continued 3-Wire Source WITH Red Wire (3-Phase Tank) Directions Push the source power cable through the hole previously punched out and secure it with the lever nut wire connectors. Connect the power wiring as shown in (Figure 19). Once the wires are connected, give them a final check to ensure that the insulation is not cut and that the wires are properly secured in the lever nut connectors. With the breaker still in the off position, use a multimeter in resistance mode and verify that there are no short circuits between any of the terminals of the Optimizer™... -
Page 15: Section 5: Securing The Top Cover
Section 5 | Securing the Top Cover Directions Before placing the top cover on the Optimizer™, use a 3/32 Allen wrench to verify the terminal lug screws are tight. You will access these screws through the terminal lug access holes in the circuit board cover (Figure 20). Locate the breakaway tabs that need to be removed to allow clearance for the sensor strain relief. -
Page 16: Section 6: Sensor Placement
Section 6 | Sensor Placement Only Use the Temperature Sensors (Thermistors) Supplied with the Optimizer™ Directions Remove the bottom and top element access panels (Figure 25). Slide the protection sleeve over the end of each Temperature Sensor (Thermistor) wire (Figure 26). Figure 25 - Access Panels Apply the adhesive strip to the probe end (Figure 27). - Page 17 Section 6 | Sensor Placement Only Use the Leak Sensor Supplied with the Optimizer™ Directions Place the Leak Sensor (not the wire) in the leak tray at the bottom of the tank. If there is no tray, the sensor can be coiled around the bottom of the tank itself (Figure 29). Figure 29 - Leak Sensor Reinstall the upper and lower element access panels, replace any removed insulation, and ensure the wire protection sleeves cover the wires where the covers...
-
Page 18: Section 7: Final Steps
Section 7 | Final Steps Final Steps Directions Re-energize the breaker. If the breaker panel is near the water heater, you should hear an audible click from the Optimizer™ as the relay is energized. At the same access panel where you tested, the power was of, use the multimeter or contactless voltage detector to verify that power has been restored to the water heater. -
Page 19: Section 8: Communication Configuration
Communications Configuration Directions 1. Have your home Wi-Fi password handy. 2. Search for the Armada Power App in the App Store or on Google Play. 3. Install the App on your mobile device and open it. 4. Tap the “Sign Up” Button on the home screen (Figure 32). - Page 20 1 (855) 820-7500 Optimizer™ Serial Number: Please keep your Armada Power Optimizer™ serial number in a safe place – this number is unique to you and your device. Armada Power Optimizer™ Electric Water Heater Installation Guide Model LCS2400 Wi-Fi...
