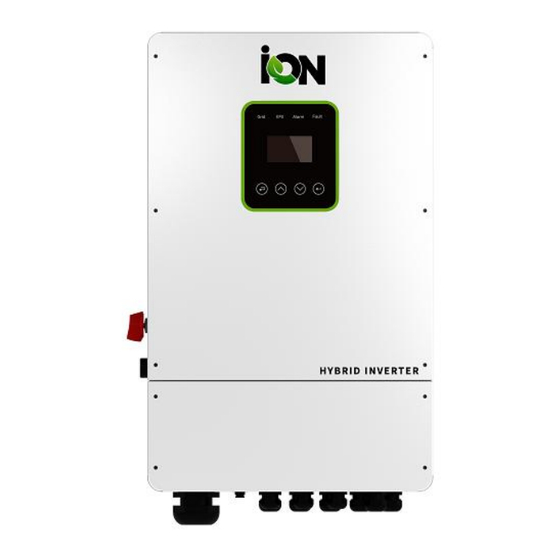

ION 8KW-US User Manual

Hybrid inverter

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

USER MANUAL

Hybrid Inverter User Manual

Table of Contents

Need help?

Do you have a question about the 8KW-US and is the answer not in the manual?

Questions and answers

Summary of Contents for ION 8KW-US

Page 1 USER MANUAL Hybrid Inverter User Manual...
Page 2: Table Of Contents
CONTENTS 1 NOTES ON THIS MANUAL ..............2 1.1 S ................2 COPE OF ALIDITY 1.2 T ................... 2 ARGET ROUP 1.3 S ................... 2 YMBOLS 2 SAFETY ....................3 2.1 I ............3 MPORTANT AFETY NSTRUCTIONS 2.2 E ..............7 XPLANATION OF YMBOL 3.
Page 3: Notes On This Manual
This manual is an integral part of Hybrid, It describes the assembly, installation, commissioning, maintenance and failure type of the product. Please read it carefully before operating. Model Number: ion 8KW-US Store this manual where it will be accessible at all times. 1.2 Target Group This manual is for qualified electricians.
Page 4: Safety
2 Safety 2.1 Important Safety Instructions Danger! Danger to life due to high voltages in the inverter!  All work must be carried out by qualified electrician.  The appliance is not to be used by children or persons with reduced ...
Page 5 Warning！  Authorized service personnel must disconnect both AC and DC power from inverter before attempting any maintenance or cleaning or working on any circuits connected to inverter. Warning!  Do not operate the inverter when the device is running . Warning！...
Page 6 plug and MAINS couplers. When accessing the internal circuit of inverter, it is very important to wait 5 minutes  before operating the power circuit or demounting the electrolyte capacitors inside the device. Do not open the device beforehand since the capacitors require time suﬃciently discharge! Surge protection devices (SPDs) for PV installation ...
Page 7 won’t stop conducting until the voltage across their terminals is typically more than 30 volts. Anti-Islanding Eﬀect  Islanding eﬀect is a special phenomenon that grid-connected PV system still supply power to the nearby grid when the voltage loss is happened in the power system. It is dangerous for maintenance personnel and the public.
Page 8: Explanation Of Symbol
2.2 Explanation of Symbol This section gives an explanation of all the symbols shown on the inverter and on the type label. Symbols on the Type Label CSA certified This symbol indicates that you should wait at least 5mins after disconnecting the inverter from the utility grid and from the PV panel before touching any inner live parts.
Page 9: Introduction
3. Introduction 3.1 Basic features Hybrid Series is a high-quality inverter which can convert solar energy to AC energy and store energy into battery. The inverter can be used to optimize self-consumption, store in the battery for future use or feed in to public grid.
Page 10 Note! Please control the home loads, and make sure it’s within the “BACK-UP output rating” under BACK-UP mode, otherwise the inverter will shut down with an “overload fault” warning. Please conﬁrm with the mains grid operator whether there is any special regulations for grid connection.
Page 11 Note! The arrow on the CT points to the power grid, as shown. If the CT connector is improperly connected, the inverter cannot read the data correctly, so that the relevant working conditions cannot be realized normally.
Page 12: Work Modes
3.3 Work Modes Inverter provides multiple work modes based on diﬀerent requirements.
Page 13: Dimension
3.4 Dimension...
Page 14: Terminals Of Hybrid Inverter
3.5 Terminals of hybrid inverter Object Description DC switch BAT input WiFi CAN1/CAN2/RS485/BMS485,BMSCAN/CTL1/CTL2/Type-c upgrade PV1~PV4 input Generator Grid BACK-UP1 output BACK-UP2 output RSD button WARNING ! Qualified electrician will be required for the installation.
Page 15 * Port Function CAN1/CAN2: Communication interface for connecting inverters. RS485: Read the internal data of inverter. BMS-485/ BMS-CAN: BMS communication for lithium batteries. CT L1/CT L2: For external grid side CT to detect current size. TYPE-C UPDATE: Update inverter software locally on PC via USB-A port.
Page 16 Nominal voltage (Vdc) MAX.Charging/Discharging Current 190A/190A Battery Voltage Range 40-60V Battery Type Lithium and Lead Acid Battery Charging Strategy for Li-Ion Battery Self-adaption to BMS AC Output Data(On-Grid) Nominal output power Output to Grid 8KVA MAX. Apparent Power Output to Grid 8.8KVA Output Voltage Range 110-120/220-240V split phase, 1Ø, 230 1 phase...
Page 17 Insulation Resistor Detection Residual Current Monitoring Unit Output Over Current Protection Back-up Output Short Protection Terminal temperature detection Output Over Voltage Protection Output Under Voltage Protection General Data Output Conduit 25.4mm PV Input Conduit 25.4mm BAT Input Conduit 34.5mm Operating Temperature Range -25 ~ +60°C Relative Humidity 0-95%...
Page 18: Installation
5. Installation 5.1 Check for Physical Damage Make sure the inverter is intact during transportation. If there is any visible damage, such as cracks, please contact your dealer immediately. 5.2 Packing List Open the package and take out the product, please check the accessories first. The packing list shown as below.
Page 19: Mounting
5.3 Mounting Installation Precaution  Inverter is designed for outdoor installation (IP 65).Make sure the installation site meets the following conditions:  Not in direct sunlight.  Not in areas where highly Flammable materials are stored.  Not in potential explosive areas. ...
Page 20 Space Requirement  Position Min. size Left 300mm Right 300mm 500mm Bottom 500mm Front 1000mm Mounting  Tools required for installation. Installation tools : crimping pliers for binding post and RJ45, screwdriver, manual wrench Step 1: Drill 4 holes in the wall according to the following distance dimensions, 50~60mm depth.
Page 21 Step 4: Remove the cover screws by Allen Wrench and remove the c over. Remove the waterproof cover by a flat blade screwdriver. Wiring box conduit plugs, Conduit plugs are provided for 1 inch conduit fittings. If used conduit fitting is not 1 inch, an appropriate conduit adaptor should be used.
Page 22: Electrical Connection
6. Electrical Connection 6.1 PV connection Hybrid can be connected in series with 4-strings PV modules for 8kW. Select PV modules with excellent function and reliable quality. Open-circuit voltage of module arrays connected in series should be <Max. DC input voltage; operating voltage should be conformed to MPPT voltage range.
Page 23: Grid Connection
Step2. Grid cables choose Use the right pin terminal from the accessory box. Press the connectors on cable conductor core tightly. Model ion 8KW-US Cable 10AWG Step3. Choose the wire to connect with the cold-pressed terminal. (Remove 18mm of insulation from the end of wire.) 18mm Step4.
Page 24: Back-Up:load1 And Load2 Connection
6.3 Back-up:Load1 and Load2 Connection Inverter has On and Oﬀ grid function, the inverter will deliver output power through AC port when the grid is on, and it will deliver output power through back-up port when the grid is oﬀ. Auto &...
Page 25 When using the off grid function, please add off grid AC breaker in off grid output cable to ensure safety. Model ion 8KW-US Micro-breaker Note: The absence of AC breaker on back-up side will lead to inverter damage if an electrical short circuit happens on back-up side.
Page 26: Battery Connection
Hybrid inverter. Battery breaker  Before connecting to battery, please install a no-polarized DC breaker to make sure inverter can be securely disconnected during maintenance. Model ion 8KW-US Current[A] 250A Battery connection diagram  BMS PIN Definition ...
Page 27  Power Connection Battery: Step1 Choose the 2 AWG wire and strip the cable to 15mm. Select two O-terminals with an aperture of M8. Insert the stripping line into the O-terminal and clamp it with a crimping clamp. Step2. Cross the battery cable although the battery port. Connect battery cable to battery terminal BATTERY INTERFACE...
Page 28: Wifi Connection (Optional)
6.5 WiFi Connection (optional) Inverter provides a WiFi port which can collect data from inverter and transmit it to monitoring-website by WiFi.(Purchase the product from supplier if needed) 1) Diagram Cloud Router 2)WiFi Connection : Step1. Plug WiFi into “WiFi” port at the bottom of the inverter. Step2.
Page 29 6.7 CT Installation instructions CT is short for “current transform”,is used to detect Grid current . Note! If CT is not installed or installed reversely, the functions of "Anti-reflux", "Self-use", "Peak-shift "… will not be realized. The direction of the arrow on the CT points from this inverter to the GRID. When connected to single-phase power grid (Europe, Africa, Asia, Australia).
Page 30: Lcd Operation
7. LCD Operation .1 Control Panel Object Description Name Display the information of the inverter. Screen lit in green: The inverter is in grid mode. Oﬀ: The inverter is in not in grid mode. lit in green: The inverter is in oﬀ-grid mode. Indicator Oﬀ: The inverter is in not in oﬀ-grid mode.
Page 31: Instructions For The Use Of Three Modes
7.3 Instructions for the use of three modes...
Page 33: Lcd Interface
LCD Operation 8.1 LCD Interface 8.1.1 Error information Interface Description Numbers represent error codes and text is error information. ERROR NO. Refer to Chapter 9 for speciﬁc contents. 02:BatDisconnect NOTE: When there is a lock mark in the upper right corner of the screen, you cannot turn the page, you need to press Enter to 27:BMS Comm.fail unlock it ﬁrst.
Page 34 8.1.5 PV1 Input display interface Interface Description PV1 INPUT PV1 input real-time voltage VOLT: 0.0V PV1 input real-time current CURR: 0.00A PV1 input real-time power. POWER: 8.1.6 PV2 Input display interface Interface Description PV2 INPUT PV2 input real-time voltage VOLT: 0.0V PV2 input real-time current CURR:...
Page 35 8.1.10 Battery interface Interface Description Battery real-time voltage BATTERY Battery real-time current VOLT: 0.0V STA: Battery status CURR: 0.0 A C : Indicates that the battery is rechargeable (From the BMS) STA: C D F D : Indicates that the battery can discharge (From the BMS) F : The battery requests a forcible charge (From the BMS) 8.1.11 Battery current interface Interface...
Page 36 8.1.15 LOAD Interface Description LOAD: L1: LOAD-L1 real-time voltage. LOAD-L1 real-time current. L1: 0.0V 0.00A L2: LOAD-L2 real-time voltage. LOAD-L2 real-time current. L2: 0.0V 0.00A 8.1.16 ON GRID POWER Interface Description The CT arrow points to the power grid. The discharge from the POWER inverter to the grid is “+”, and the opposite is “-“.
Page 37 8.1.20 Temperature Interface Description INVER: INV Temperature. TEMPERATURE DCDC: DCDC Temperature. INVER: 0℃ INSIDE: Internal ambient temperature of the inverter. DCDC: 0℃ INSIDE: 0℃ 8.1.21 State Interface Description System information: Display complete inverter status STATE information, Including: Initialization, Standby, PV grid connection, Grid connection of battery, Hybrid power supply, SYS: STANDBY...
Page 38: Setting
8.2 SETTING 8.2.1 State Interface Description SETUP: Press Enter to user settings interface. USER INQUIRE: Query inverter model, serial number, software version. 1:SETUP STATISTIC: View inverter run statistics. 2:INQUIRE 3:STATISTIC 8.2.2 SET Password Interface Description Enter the password required for setting. The default password PASSWORD is“00000”.
Page 39 8.2.4 System setting 8.2.4.0 System setting Interface Description This interface is used to access system information. SYS SETTING Press Up/Down button to move corresponding options. 1: WORK MODE Press Enter to enter the selected menu. 2: EPS ENABLE Press ESC button to return to the setting interface. 3: BAT WAKE-UP There are 8 options in total.
Page 40: Remote Ctrl
8.2.4.2 EPS enable Interface Description When the Grid and PV are powered oﬀ, Enable the battery to EPS ENABLE supply power to the load, default option is enable. 1:DISABLE 2:ENABLE 8.2.4.3 Battery wake-up Interface Description When the battery is low and the battery relay has been WAKE-UP EN disconnected, the inverter will send instructions to the battery forcibly sucking relay by BMS, and the inverter will charge.
Page 41 8.2.4.7 Anti Reverse Interface Description Anti- Reverse: Whether Inverter isn’t allowed to generate Anti Reverse electricity to the Grid. 1.DISABLE The default option is disable. 2.ENABLE 8.2.4.8 ARC ENABLE Interface Description Enable or disable arc pull function detection. -ARC- 1.DISABLE 2.ENABLE 8.2.4.9 BUTT ENABLE Interface...
Page 42 8.2.5.1 BAT TYPE Interface Description This interface is used to select battery type. BAT TYPE Press Up/Down button to move corresponding options; 1.DC-SOURCE Press Enter button to enter the selected menu. 2.LEAD-ACID Select the LEAD-ACID enter button to enter LEAD-ACID interface;...
Page 43 8.2.5.2 DISC-DEPTH Grid DOD/ OFF Grid DOD: When the battery discharge is DISC DEPTH higher than the set parameter, the inverter generates a Grid DOD: 080% battery low voltage alarm. OFF Grid DOD: 080% Return: When a low-voltage alarm is generated, the alarm is cleared if the battery charge is higher than the specified Return: 020%...
Page 44 8.2.6.1 Grid set Description GRID 220V single：220V Single-phase electric. 1.220V single 120/240V：120/240V Bipolar electric. 2:120/240V 120/208V：120/208V Bipolar electric. 3:120/208V 120V single：120V Single-phase electric. 4:120V single 8.2.7 RUN SETTING 8.2.7.0 RUN SETTING Interface Description This interface is used to select run setting. RUN SETTING Press Up/Down button to move corresponding options;...
Page 45: Discharge Power
8.2.7.1 REACT MODE Interface Description This interface is used to select react mode. RUN SETTING Press Up/Down button to move corresponding options; 1.REACT MODE Press Enter button to enter the selected menu. 2.GRID POWER 3.DISC POWER QU WAVE (Reserved) REACT MODE QP WAVE (Reserved) POWER FACTOR 2.REACT POWER...
Page 46 8.2.7.4 CHAG POWER Interface Description The input value is power percent of battery charge. CHAG PERCENT INPUT: 100% 8.2.7.5 PV POWER Interface Description The input value is power percent of PV. PV PERCENT INPUT: 100% 8.2.7.6 VAC-MIN Interface Description The input value of Grid low voltage. GRID VOLT LOW (This is valid only if the grid standard is "custom") INPUT:...
Page 47 8.2.7.9 FAC-MAX Interface Description The input value of Grid high frequency. GRID FREQ HIGH (This is valid only if the grid standard is "custom) INPUT: 58.0 UNIT: 8.2.7.10 ACTIVE REF. Interface Description This interface is used to select active reference. ACTIVE Type Press Up/Down button to move corresponding options;...
Page 48: Date/Time Setting
8.2.10 LANGUAGE SETTING 8.2.10.0 LANGUAGE Interface Description This interface is used to select language. LANGUAGE 1.Chinese 2.English 8.2.11 BACKLIGHT 8.2.11.0 BACKLIGHT Interface Description This interface is used to set light time. LIGHT TIME INPUT: UNIT: 8.2.12 DATE/TIME SETTING 8.2.12.0 DATE/TIME Interface Description This screen is used to set the screen light time.
Page 49: Maintenance
8.2.14 PASSWORD 8.2.14.0 PASSWORD Interface Description This interface is used to set password. PASSWORD OLD: XXXXX NEW: XXXXX CONFIRM: XXXXX 8.2.15 MAINTENANCE 8.2.15.0 MAINTENANCE Interface Description This interface is used to enter maintenance. PASSWORD INPUT: XXXXX 8.2.16 FCTRY RESET 8.2.16.0 FACTORY RESET Interface Description This interface is used to reset the inverter.
Page 50 8.3.1 INV MODULE Interface Description This interface show inverter model.. MODEL 8.3.2 MODULE SN Interface Description This interface show module SN. S / N GUID: XXXXXXXX XXXXXXXXXXXXXX SN:FXXXXXXXXXXX 8.3.3 FIRMWARE Interface Description This interface show Software version. FIRMWARE ARM: V1.XX.XX DSP: V1.XX.XX...
Page 51 8.3.4 RUNNING RECORDS Interface Description This interface show running recodes. REC(01) 02:Batdisconnect 12-25 23:00 DOWN: 8.3.5 DIAGNOSE Interface Description Factory internal use. DIAGNOSE 000000 000000 000000 000000 000000 000000 8.4 STATISTIC 8.4.0 STATISTIC Interface Description This interface show inverter operation statistic. STAT.
Page 52: Fault Diagnosis And Solutions
9. Fault diagnosis and solutions The inverter is easy to maintain. When you encounter the following problems, please refer to the Solutions below, and contact the local distributor if the problem remains unsolved. The following table lists some of the basic problems that may occur during the actual operation as well as their corresponding basic solutions.
Page 53 abnormal (2) Restart the inverter and wait until it functions normally. Grid over vol (3) Contact customer service if error warning continues. Grid Frequency is (1) Check if the grid is abnormal. Grid low freq abnormal. (2) Restart the inverter and wait until it functions normally.
Page 54 The inverter (1) Cut oﬀ all the power of the inverter and wait one temperature is higher hour, then turn on the power of the inverter. igbt temp high than the allowed value Battery temperature is (1) Disconnect the battery and reconnect it after an higher than the hour.
Page 55 The inverter may be (1) Restart the inverter and wait until it functions Bus Relay Fault damaged normally. Grid Relay Fault (2) Contact customer service if error warning EPS rly fault continues. Gfci fault Selftest fail System fault Current DCover Voltage DCover Note: If an error occurs that is not listed in the table, Please Contact customer service.
