- Page 2 Overview The Serge GTS XL is the extended version of the latest generation of Serge’s famous slew generator, the Universal Slope Generator (USG). Essentially it is an integrator or slew generator that alters the rate of change of a signal.

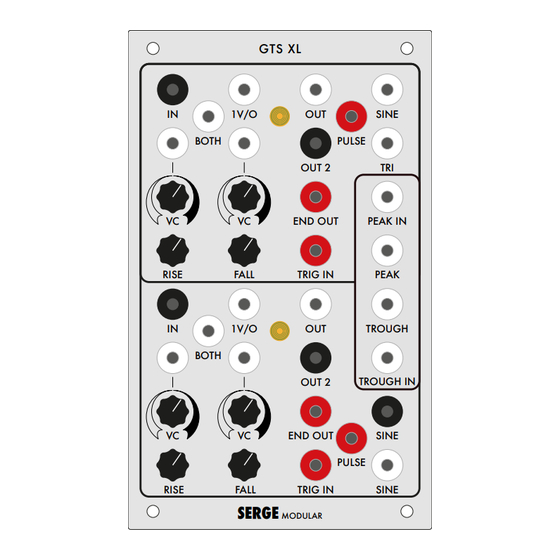

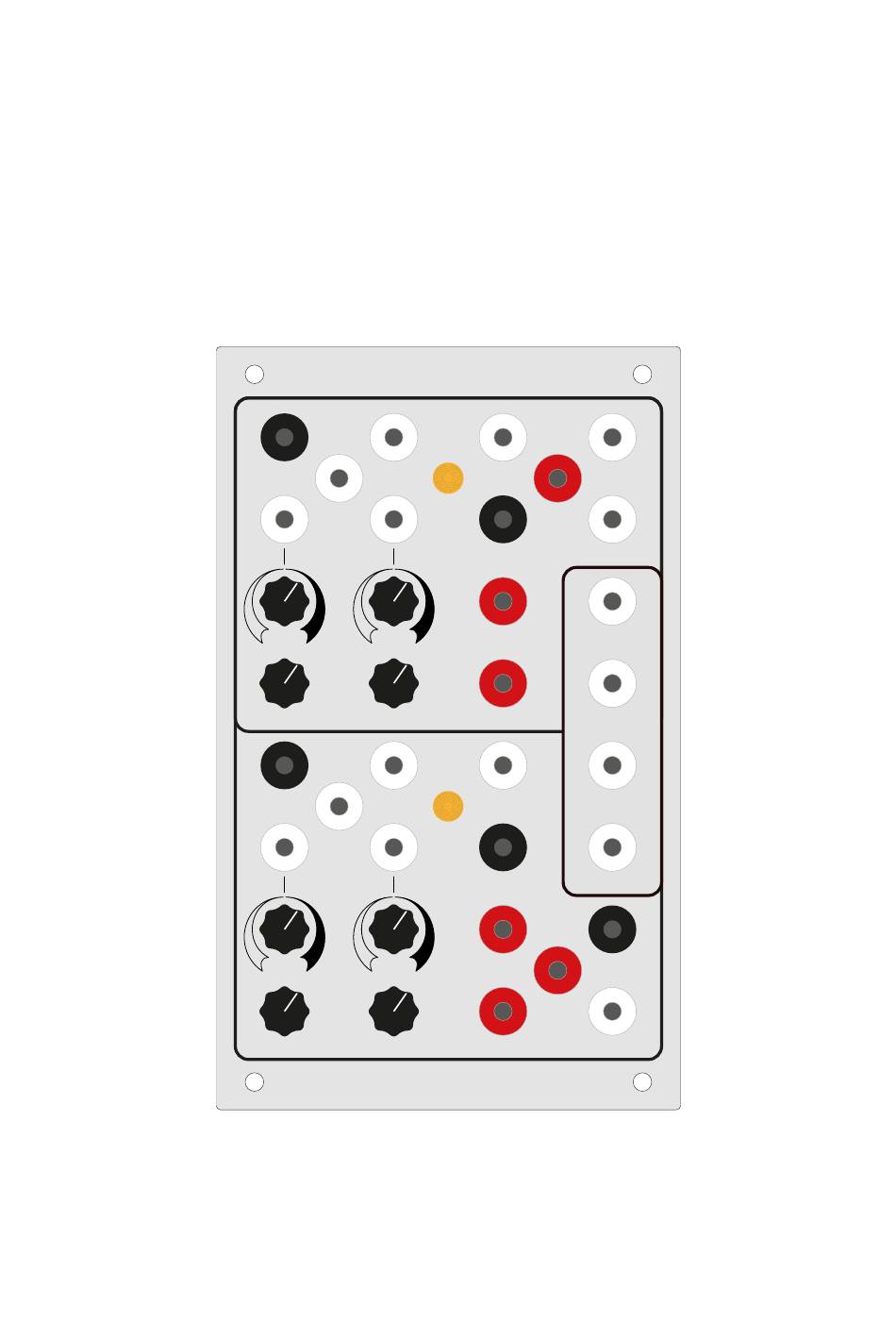

- Page 3 GTS XL - User interface The GTS XL has two sides which are widely, but not entirely identical. The top section features a new TRI(anguloid) waveshaper (10) while the SINE output (4) is by default unipolar (DC coupled, 0-5V), but can be configured via a jumper on the back of the pcb to bipolar (AC coupled).
- Page 4 SERGE MODULAR Serge GTS - Basic Slope Operation MAIN OUT (3) Connecting END OUT (13) to TRIG IN (16) puts the GTS in CYCLE mode: the MAIN OUT provides a triangular waveform whose symmetry can be adjusted from sawtooth to triangle to ramp using the RISE (14) and FALL (15) knobs.
- Page 5 SERGE MODULAR INPUT (1) Signal Input: Direct Coupled input to the GTS. Use for Lag, Portamento, (pseudo-)filtering, ASR (Attack Sustain Release) type envelopes. Also input to the middle section when not Cycling (CV-Processor, MAX, MIN). 1V/OCT (2) CV input calibrated for use of the GTS as sawtooth oscillator. When the GTS is set to...
- Page 6 SERGE MODULAR PEAK and TROUGH (#11, #12) The PEAK and TROUGH section contains a mathematical comparison that yields the MAXIMUM (PEAK) and MINIMUM (TROUGH) of 2 signals: PEAK OUT (19) Compares the MAIN OUT of the top section with the signal present at PEAK IN (18) and provides the largest value of these waveforms at any time.
