Summary of Contents for FLEET HOSTER FleetFlix FFLITE-RC

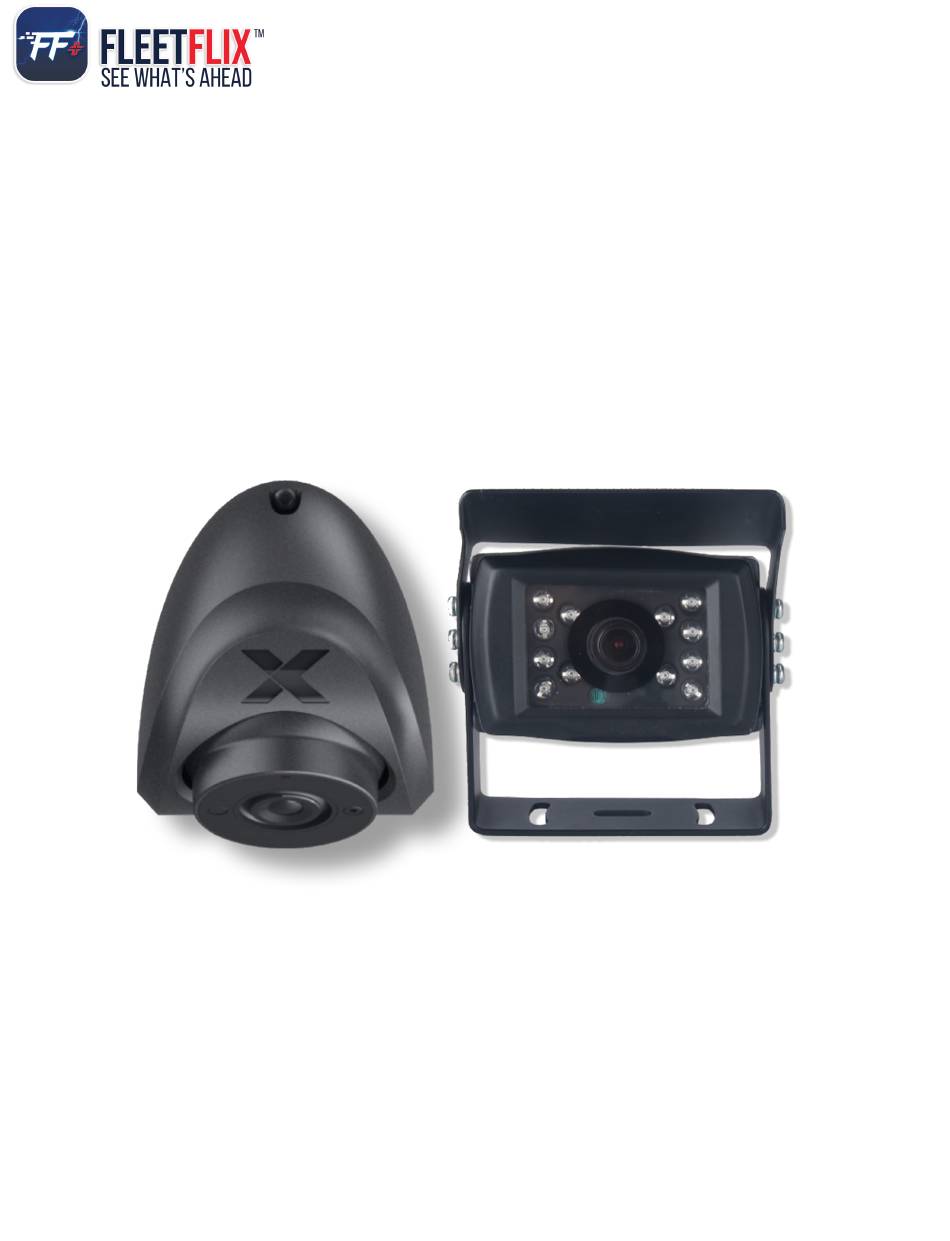

- Page 1 FleetFlix™ Lite Aux Cam Install Guide 678.759.2544 | sales@fleethoster.com | www.fleethoster.com...

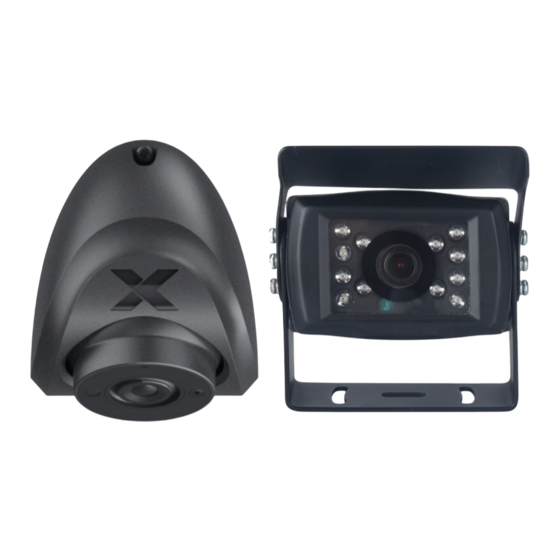

- Page 2 FFLITE-RC/FFLITE-SC Auxiliary Cameras Preface This installation guide for FleetFlix™ Lite Aux Cams is designed to assist installers in the proper and efficient installation of FleetFlix™ Lite and FleetFlix™ Lite Pro+ and its associated accessories. The goal is to streamline the installation process and enhance overall efficiency. This guide is intended specifically for installation engineering personnel.
- Page 3 Preparation for Installation Relevant personnel must have a comprehensive understanding of the product's functions, applications, and overall components. They should possess knowledge of electrical circuits and vehicle structures, as well as common installation techniques for in-vehicle devices. Prior to device installation, relevant personnel should be familiar with the specific vehicle model, the optimal installation locations for the dashcam and auxiliary cameras, the types and lengths of cables required for each vehicle model, and the list of supplementary materials needed.
- Page 4 FleetFlix™ Lite steps: 1. Remove rubber flap from top of DCC01-FFLITE-S. 2. Mount rectangular video extension cable from HRN01-FFLITE-VOUT-S into top of DCC01-FFLITE-S. 3. Insert wire from DCA01-FFLITE-RC-AHD/DCA01-FFLITE-SC-CA39-AHD to VIN cable from HRN01-FFLITE-VOUT-S. 4. If more length is needed, please use the HRN01-FFLITE-EXT-AHD-5M, HRN01-FFLITE- EXT-AHD-11M, or HRN01-FFLITE-EXT-AHD-19M cable.
- Page 5 FleetFlix™ Lite Pro+ steps: 1. Remove rubber flap from top of DCC01-FFLITE-DP. 2. Mount rectangular video extension cable from HRN01-FFLITE-VOUT-D into top of DCC01-FFLITE-DP. 3. Insert wire from DCA01-FFLITE-RC-AHD/DCA01-FFLITE-SC-CA39-AHD to VIN cable from HRN01- FFLITE-VOUT-D. 4. If more length is needed, please use the HRN01-FFLITE-EXT-AHD-5M, HRN01-FFLITE-EXT-AHD-11M, or HRN01-FFLITE-EXT-AHD-19M cable.
- Page 6 Schematic Diagram of System Connection-Power Supply through OBD Schematic Diagram of System Connection-Power Supply through Standard Power Cable Schematic Diagram of System Connection-Power Supply through Standard Power Cable Schematic Diagram of System Connection-Power Supply through Power Box Max FF Lite Pro+ FF Lite Pro+ FF Lite Pro+ chematic Diagram of Syst...
- Page 7 Product Usage Examples 678.759.2544 | sales@fleethoster.com | www.fleethoster.com...
