- Page 1 4KHDMIUF USER MANUAL 4KHDMIUF User Manual Models: 4KHDMIUF...
-
Page 2: Table Of Contents
4KHDMIUF USER MANUAL Contents 1. Overview ..............................1 2. Functions and Features ......................... 1 3. Typical Application ..........................1 4. Specifications ............................1 5. Panel Instruction ............................2 5.1 Front and Rear Panel ................................2 5.2 Front and Rear Pane ................................3 6. -
Page 3: Overview
4KHDMIUF USER MANUAL 1. Overview Thank you for using our HDMI digital transmitter/receiver over fiber. All products comply with ISO9001 quality system, and we provide customers with high-reliable equipment and good services. This HDMI fiber transceiver supports many resolutions up to 4K@30Hz. Longest distance could be up to 60Km; widely used in video conference, video wall, remote teaching, remote control and surveillance and so on 2. -
Page 4: Panel Instruction
4KHDMIUF USER MANUAL HDMI Video Standard: HDMI 1.4 Reflection loss: >15db HDMI Bandwidth: 10Gbps HDMI Video Format: support: 480p, 576P, 720P, 1080I, 1080P, 4K@30Hz Input/output Level: 1000 mVp-p Connector: HDMI Optic Parameter Wavelength: 1310 or 1550nm Fiber Type: single mode is 0-60KM(SM) or multimode is 0-300M(MM) Standard is 10KM for single mode Reflection loss: >40db... -
Page 5: Front And Rear Pane

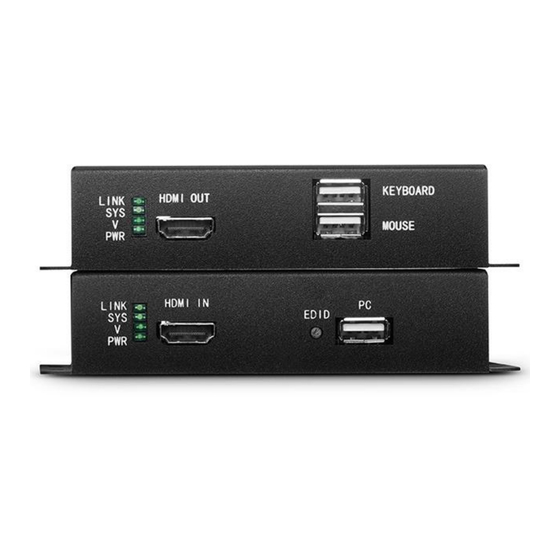

4KHDMIUF USER MANUAL 5.2 Front and Rear Pane LED /Status Definition Light No Light LINK Video cable indication HDMI cable link is normal HDMI cable link is abnormal Transmitter: System System works Abnormal indicationn Receiver: fiber indication Fiber cable link is normal... -
Page 6: Installation Steps
4KHDMIUF USER MANUAL 7.1 Installation Steps Make sure that transmitter/receiver are in the correct position; Cable and fiber jumpers are available Away from strong sources of electromagnetic interference. Prevent water and moisture into the device To access the OSD menu through keyboard: 7.2 Preparation...
