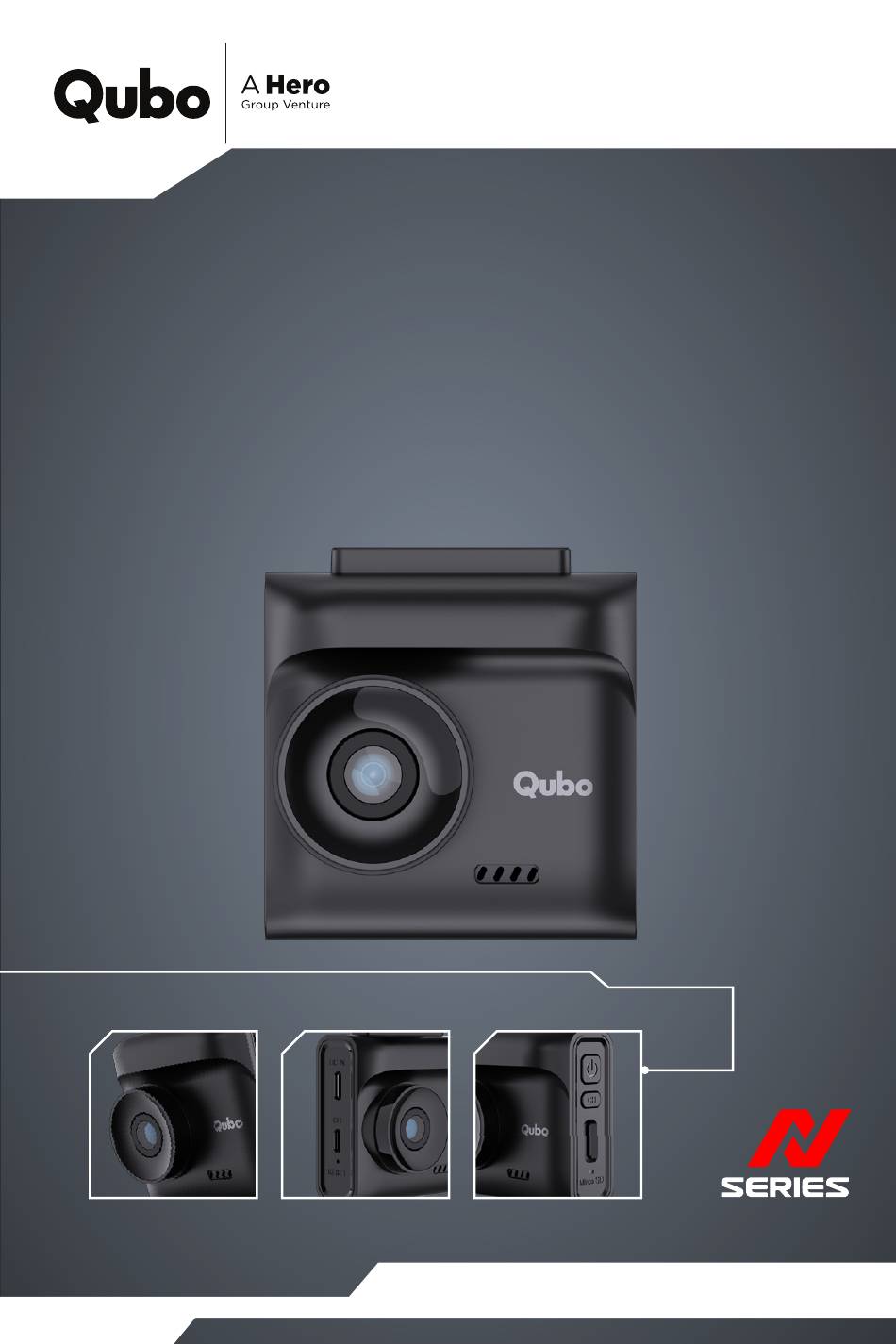

- Page 1 QBOOK Qubo Dashcam Pro 2.7K N Series...
-
Page 2: Product Introduction
Product Introduction A smart video camera for your car to record events happening on the road. Qubo Dashcam Pro 2.7K... - Page 3 Know your Dashcam Pro 2.7K Mount Display Screen Function Buttons Camera Lens Power Input Power On/Off Button Switch between Front & Rear Rear Cam view Connection Slot Reset Slot Micro SD card Slot...
- Page 4 Product Specifications & Packaging Contents Parameter : Description Model Number HCA08 Connectivity Wi-Fi (2.4GHz) Battery Type Super Capacitor (5.4V /2.5F) G-Sensor : Display Size 2 inches Display Type LCD IPS Storage Upto 1TB (Supported SD Card: C10, U3, V30, 4K UHD cards) Power Port Type Type C Power Input...
- Page 5 In Box Items 2.7 K Front Camera Rear Camera Hardwiring Kit for Power Supply Power Cable for Rear Camera (Length-7m) Mount with double side adhesive tape Digital QR Card (Digital User Manual+Warranty Card) Pry Tool...
-
Page 6: Button Functionality
Button Functionality Power Button Functionality Function Action Press Once Power Key Display On Display Off Press Once Power Key Long press Power Key & Hold for 10 Sec Factory Reset till the LED stops Blinking Function Keys Function Action a) Press any Function key for enabling key functionality b) Press Function Key SD Card Format... - Page 7 Function Keys a) Press any Function key for enabling key functionality Sleep Mode b) Press the function key and then > press function key to confirm a) Press any Function key for enabling key functionality Devic Speaker Mute/Unmute b) Press the function key mute/unmute a) Press any Function key for enabling key functionality...
- Page 8 Display Screen Status GPS Indicator SD Card Indicator Recording Wifi Indicator Indicator Microphone Sleep Mode Device Setting Device Speaker...
- Page 9 Dashcam Features: Journey Vlogging: Users can utilize the dashcam for vlogging while traveling through scenic routes, capturing their journey in real time. GPS Logging: With GPS logging, users can view events and trips, complete with access to maps for precise location tracking. Video Quality: The Qubo Dashcam 2.7K offers QHD+ video quality for recording purposes, with a live view resolution of 2880 x 1620p, ensuring clear and sharp footage.
- Page 10 Installation Process Front Camera 1. Install the Dashcam 1. Clean the Windshield area where the Dashcam is to be installed. 2. Remove the Protective Film from the Double Sided Adhesive and attach it on the windshield such that the view of the Driver is not blocked and proper view of the Front in correct orientation is present.
- Page 11 Important notes: • The actual installation and wiring path of the Hardwiring Kit may differ from the illustrations in the manual. Please seek assistance from a professional technician • Before installation and wiring, please turn on the car engine and power to prevent short circuit. •...
- Page 12 Precautions (Do’s/Don’t) • Please ask a professional technician to perform the installation. Our company is not liable for any short-circuiting of the car power supply and damage to the car battery or interior due to improper installation. • Our company is not liable for any losses resulting from the installation of the product unless they are caused by product quality issues.
-
Page 13: Specifications
Rear Camera - Product Instructions 1. Rear Camera with Mount 2. Rear Camera Power Cable (Type C to Micro USB) Note: Note: We recommend to first install the dashcam and then mount it on the Windshield for your convenience. Specifications: Input: 5V= 0.5A Resolution: 1920×1080... - Page 14 How to Use: The camera is used as an accessory Qubo Smart Dashcam cam Pro 2.7K in-car products and needs to be used with a main device. After the camera is installed and connected with the front/main camera correctly, the camera can record and store the image from the rear of the vehicle. •...
- Page 15 Rear Camera - Installation Process Paste the electrostatic sticker: Clean the rear windshield and apply electrostatic sticker. Step back from edge of the windshield and choose a flat and smooth installation surface. Installing the rear camera. Peel off the protective film from the adhesive sticker on the base of the mount, and paste the rear camera onto the electrostatic sticker in the dotted area.
- Page 16 App Download Instructions Step 1. Download the Qubo Pro App Search for “Qubo Pro” in the Google Play Store or Apple App Store, or you can scan the QR code provided below to download the app. App Link - https://bit.ly/3Pjsl2n Step 2. Install and Connect the Qubo Pro App to the 2.7K Dashcam After installing the Qubo Pro app: Step 3.
- Page 17 App Screen Attributes Help Settings Delete Mute/Unmute Screenshot Download Full Screen View Time Lapse Calendar Wi-Fi Connectivity On-Demand Time Recording Scrubber Trips Log Events Downloaded Images/Videos Disclaimer: The app images displayed are representative and may vary slightly from the actual app interface and options due to ongoing performance upgrades and improvements...
- Page 18 Settings Screen Attributes Option to enable/ disable audio track recordings To enable/ Sensitivity of the Jolts disable audio alerts and sound from Dashcam To enable/ disable parking mode (works with Hardwiring Kit only) SD Card Storage Select the number of occupied emergency recordings to be kept in the SD Card...
- Page 19 Recording Access Options CONTINUOUS RECORDING To access all the captured recordings, please use the Timeline Bar (Marked in red). Green color marks the area which has the stored recordings. EVENT BASED The Dashcam 2.7k records specific Events like Jolt detection, ride start & Ride stop etc which can be accessed from the Events tab.
-
Page 20: Safety Precautions
Safety Precautions Qubo Smart Dashcam Pro 2.7K records videos of outside moving vehicles. It can’t protect drivers and passengers from any accidents. We shall not take any responsibility if the user gets involved in any traffic accident and/or bear any loss due to product failure, information loss, or product operation. -
Page 21: Troubleshooting
12. Do not clean this product by chemical solvents or cleansers. 13. Use this product within the scope of the law. 14. Avoid chemical cleansers and solvent that can damage plastic components You should clean the camera lens regularly to improve the quality of recorded video. - Page 22 My video recordings are blurry • Clean the camera lens • Clean the windshield in front of the camera • Verify the area of the windshield in front of the camera is cleared by the windshield wipers, and move the device, if necessary My video recordings are choppy or incomplete •...
- Page 23 IMPORTANT : Please retain your receipt as proof of purchase. HERO Electronix Private Limited warrants to the owner of the Qubo Dashcam Pro 2.7k, (henceforth referred as Device) that the Device will be free of defects in material and workmanship for a period as mentioned below.
- Page 24 In general, you will need to deliver the Device in either its original packing or in equally protective packing to the address specified by Customer Service. HERO Electronix will bear all the cost of the return shipping to the owner except with respect to any Ineligible Product (defined below), for which owner will have to bear all the cost.
