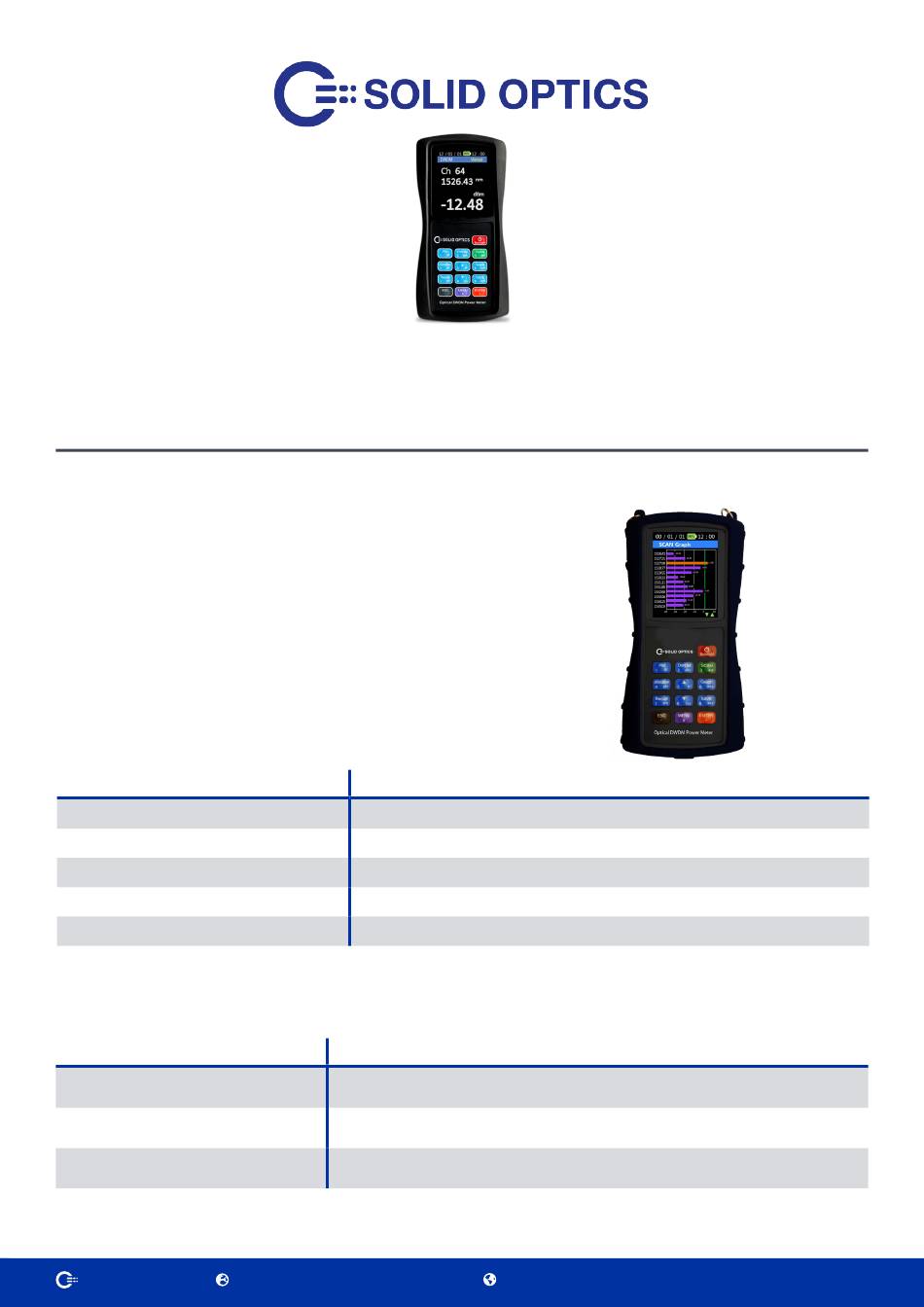

1. PRODUCT INTRODUCTION
• Automatic wavelength & Power detection
• Compact size and light weight for portable
• Easy for hand operating
• Storage of large data
• Auto shut off function
• Fast response
• High-quality graphics
• CE approved
1.1 Accessories
Description
Body
Body Rubber Case
USB Data Cable
Typical 5pin Charger
User's Manual
1.2 Optical Standards | Wavelength
Parameter
Number of Channels
Channel Spacing
Channel Frequencies
www.solid-optics.com
SO-OSA-DWDM-48Ch
Tech Specs
Unit
-
GHz
THz
EU Customer Support +31 (0) 88 342 3776
Quantity
1EA
1EA
1EA
1EA
1EA
Specification
48
100
fc 196.4 ~ 191.7 (1526.43 ~ 1563.86 nm)
US Customer Support +1 855 678 4271
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SO-OSA-DWDM-48Ch and is the answer not in the manual?

Questions and answers

Summary of Contents for Solid Optics SO-OSA-DWDM-48Ch

  • Page 1 SO-OSA-DWDM-48Ch Tech Specs 1. PRODUCT INTRODUCTION • Automatic wavelength & Power detection • Compact size and light weight for portable • Easy for hand operating • Storage of large data • Auto shut off function • Fast response • High-quality graphics •...
  • Page 2 1.3 Optical Standards | Optical Power Parameter Unit Specification Range of Display +10 ~ -40 Absolute Power Accuracy ±1.0@ -30 Optical Power Resolution 0.01 Measuring Unit dB / dBm - Optical Connector Optical connector interchangeable adapter. FC, ST, SC, LC 1.4 Specification •...
  • Page 3 1.5 About the charger A rechargeable battery is installed inside the measuring instrument, and this charger module has the MOI (Ministry of Information) and Communication standard 5 pin charger phot. Connect the connecting point to the top of the ODPM-48 after the included cable is connected to the charger. Standard 5pin Charger * This Charger is subject to change - Charging Conditions:...

  • Page 4: Getting Started

    2. GETTING STARTED 2.1 Explanation of user interface and operating buttons Buttons Function Backlight Power ON/OFF Power Display DWDM Scanned dBm value of the wavelength is represented as a data. SCAN Wavelength is scanned and dBm value is represented. dB/dBm Each time you press the key, dB and dBm are repeated.
  • Page 5 • Press the Backlight button more than 2 seconds to turn the power off. 2.2.2 Power Meter • Power Measurement is divided into ‘Auto’ and ‘Manual’. If you select 'Auto', the instrument automatically scans the optical input and displays the wavelength which has been detected with the highest level of power.
  • Page 6 2.2.3 DWDM • Press the (DWDM) button, then the display will show as the figure below. • The moment you click on the (DWDM) button, the light source is scanned only once in Manual mode. • You can select the different wavelengths using 2.2.4 SCAN •...
  • Page 7 2.2.5 dB/dBm • The light source is based the moment you press the (dB/dBm) button. In other words, the light source is 0.00 dB. • Then it measure automatically dB of light source. • If you want to re-select ‘dBm’, click (dB/dBm) button.
  • Page 8 2.2.6 Graph • If you press the (Graph) button after scanning, a graph shows like the below. • If you press the (Graph) button again it returns to text mode. www.solid-optics.com EU Customer Support +31 (0) 88 342 3776 US Customer Support +1 855 678 4271...
  • Page 9 2.2.7 Recall • Press the (Recall) button, you will recall the data which you have measured and saved. • Press the (Enter) button to select the data you want, the screen display stored data. www.solid-optics.com EU Customer Support +31 (0) 88 342 3776 US Customer Support +1 855 678 4271...
  • Page 10 2.2.8 Save • When you press the (save) button, the following message shows and asks the name of the data, and the data based on the current data and time is saved if you press the (Enter) button. • If you want to stop saving, press (ESC).
  • Page 11 2.3.1 Scan set • When you choose the SCAN Set, ‘All Scan’, ‘Selected’, ‘Odd chan.’ and ‘Even chan.’ are displayed. • ‘All Scan’ is registered 48 wavelength. • ‘Selected’ is registered user-selected wavelength. • If you press the ‘Selected’, you can see the screen below. •...
  • Page 12 2.3.2 Offset • If you press the (Enter) button after selecting ‘Off Set’, you can set up dBm value and the optical power value on the screen. • You can set the ‘Off Set’ by pressing the (ESC) key and (Enter).
  • Page 13 2.3.3 Auto Power Off • The power automatically goes off if the user does not input any key in the determined time. • If you press the (Enter) button after selecting ‘Auto Power OFF’, you can set the Auto power off time in minutes. •...
  • Page 14 2.3.4 Time Set • If you press the (Enter) button after selecting ‘Time Set’, you can set the today date and current time. • You can set the time by pressing the number key and (Enter) button. www.solid-optics.com EU Customer Support +31 (0) 88 342 3776 US Customer Support +1 855 678 4271...
  • Page 15 2.3.5 Data Delete • If you press the (Enter) button after selecting ‘Delete Data’, you can delete the data. • If you press the (Enter) key after choosing the data you want to delete, the message appears on the scree to confirm to delete or not. •...
  • Page 16 2.3.6 Data Format • You can delete all saved files by formatting the transportable memory. • If you press the (Enter) key after ‘Data Format’, message appears on the screen to confirm. • If you press the (Enter) button, all files are deleted from the memory. 2.3.7 System Info General information about the equipment.
  • Page 17 2.3.8 Scan Display • ‘Scan Display’ consists of ‘All’ and ‘Measured’. This can be selected using • If you choose the ‘All’, from 1526.43nm to 1563.86nm values of 48 wavelengths are output. • If you choose the ‘Measured’, the value of the wavelength to be measured are output. www.solid-optics.com EU Customer Support +31 (0) 88 342 3776 US Customer Support +1 855 678 4271...
  • Page 18 2.3.9 PM Scan Mode • The ‘Scan Mode’ consists of the ‘Auto’ and ‘Manual’. This can be selected using • If you choose the ‘Auto’, when selecting ‘DWDM’, shows the real time changing values. 2.3.10 Threshold • You can change the baseline. •...
  • Page 19 • If you press the (Enter) button after selecting ‘Threshold’, you can set the baseline. • Baseline changes can be found at the graph screen. 2.3.11 Display Unit • You can change the unit. • The ‘Display unit’ consists of the ‘Wavelength’ and ‘Frequency’. This can be selected using www.solid-optics.com EU Customer Support +31 (0) 88 342 3776...
  • Page 20 • If you choose the ‘Frequency’, shows the below screen. www.solid-optics.com EU Customer Support +31 (0) 88 342 3776 US Customer Support +1 855 678 4271...

  • Page 21: Disclaimer & Copyright

    Information is subject to change without notice. Solid Optics and the Solid Optics logo are registered trademarks of Solid Optics EU Holding N.V. All other trademarks are acknowledged as registered trademarks and proprietary to their respective owners. Copyright © 2019 Solid Optics EU N.V., Dutch Chamber of Commerce no.
