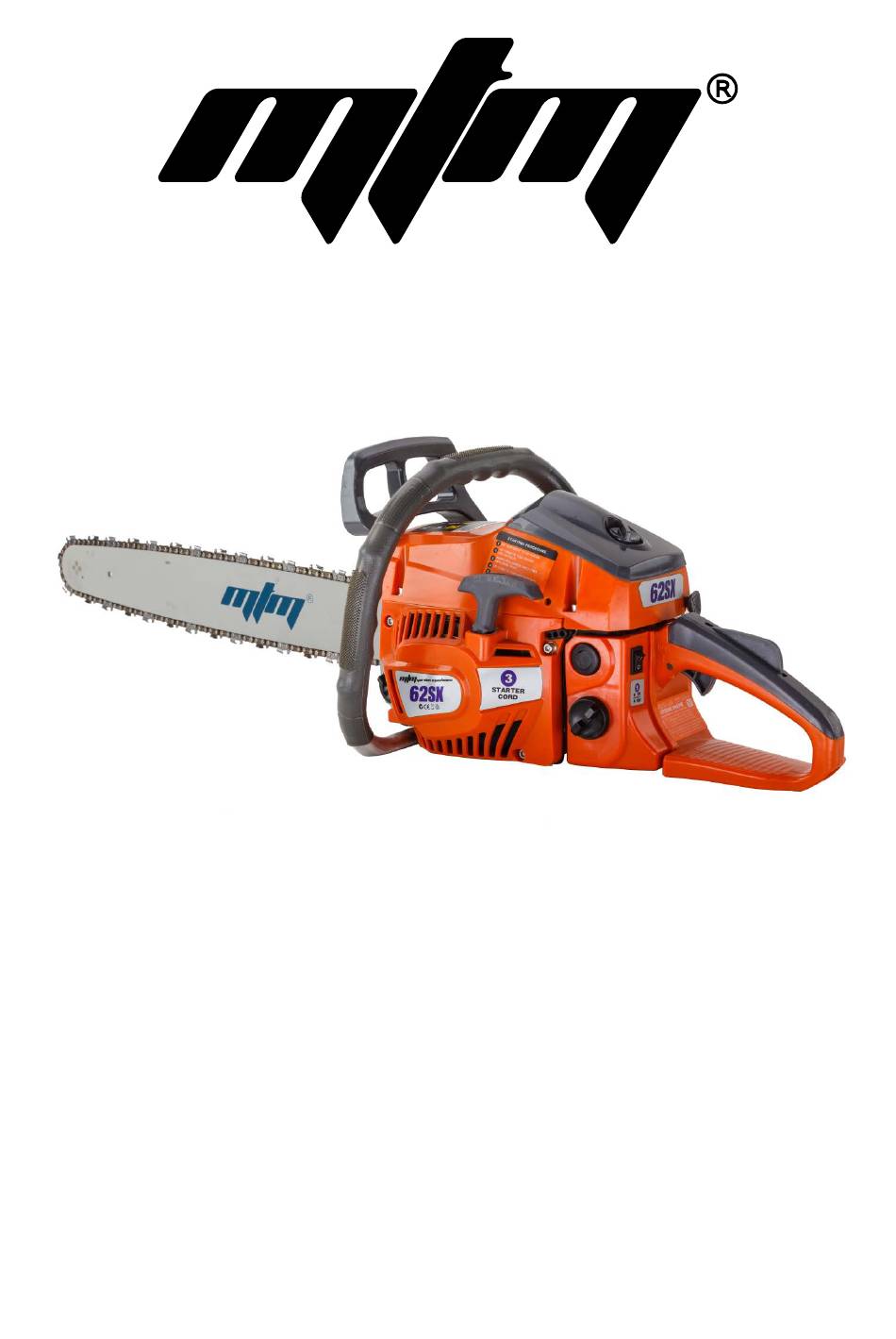

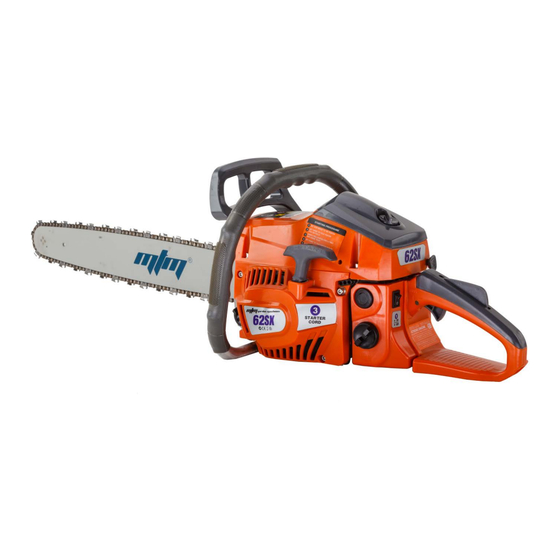

- Page 1 62SX Petrol Chainsaw User Manual [Revision 1.0 August 2016] RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...
-
Page 2: Table Of Contents
62SX Petrol Chainsaw Table of Contents Safety ................................. 3 Components ..............................6 Set-Up ................................7 Installing the Guide Bar and Saw Chain........................7 Fuel ....................................8 Chain Oil ..................................8 Operation ................................9 Symbols on the Chainsaw ............................9 Starting the Engine..............................10 Checking Chain Lubrication ............................ -
Page 3: Safety
62SX Petrol Chainsaw Safety If used correctly, the 62SX is a powerful, high performance tool. If used improperly or without due precaution, it may represent a hazard. For safe operation, always comply strictly with the safety rules that follow, as well as those found throughout this manual. - Page 4 62SX Petrol Chainsaw • WARNINGS ON THE HANDLING OF FUEL − The engine of this product is designed to run on a mixed fuel containing highly flammable gasoline. Never store fuel or refill the fuel tank in any place where there is a fire, electrical or welding sparks, or any other source of heat or fire which may ignite the fuel.
- Page 5 62SX Petrol Chainsaw − Do not rely exclusively on the safety devices built into your saw. As a chainsaw user, you should take several steps to keep cutting jobs free from accidents or injuries. • With a basic understanding of kickback, you can reduce or eliminate the element of surprise.
-
Page 6: Components
62SX Petrol Chainsaw Components No. Name No. Name Front guard Throttle lock button Starter knob Engine switch Air cleaner Fuel tank Choke knob Oil tank Throttle interlock Front handle Rear handle Saw chain Throttle trigger Guide bar... -
Page 7: Set-Up
62SX Petrol Chainsaw Set-Up Installing the Guide Bar and Saw Chain IMPORTANT! The chainsaw may come with plastic spacers over or around the bar studs - the spacer is for shipping purposes only and must be removed before mounting the chain guide bar. After removing the chain brake cover, remove any spacers, then mount the guide bar as described. -
Page 8: Fuel
62SX Petrol Chainsaw 5. Fit the chain brake cover to the power unit and fasten the nuts to “finger-tight”. 6. While holding up the guide bar, adjust the chain tension by turning the tensioner screw until the tie straps just touch the bottom side of the guide bar rail (see Figure F4). -
Page 9: Operation
62SX Petrol Chainsaw Operation It is important you read and Always wear ear protection. Loud understand the instruction manual noises for an extended period of time before first use and keep the manual may damage your hearing. in a safe place for future reference. -
Page 10: Starting The Engine
62SX Petrol Chainsaw Starting the Engine 1. Chain oil 5. Throttle lever 2. Fuel 6. Throttle interlock 3. Switch 7. Choke knob 4. Throttle lock button 1. Fill fuel and chain oil tanks respectively, and tighten the caps securely (Figure F7). -
Page 11: Checking Chain Lubrication
62SX Petrol Chainsaw 5. While holding the saw unit securely on the ground, gently pull the starter cord until you feel it engage the engine, then rapidly pull it (Figure F11 above). It may require several pulls to start the engine. -
Page 12: Carburettor Anti-Freeze Mechanism
62SX Petrol Chainsaw NOTE: Be sure to adjust the carburettor with the guide bar and chain installed. 1. With the engine stopped, screw in (rotate right) both H and L needles until they stop. Never force. Then, as an initial setting, screw them back out (rotate left) the following number of turns:... -
Page 13: Stopping The Engine
62SX Petrol Chainsaw For this reason you should always be sure to return the unit to normal operating mode if there is no danger of icing occurring. When using the saw in anti-freeze mode, frequently check the screen and keep it clean of saw dust. -
Page 14: Felling Trees
62SX Petrol Chainsaw How to confirm: Run the saw at full throttle for 1 to 2 seconds and push the front hand guard forward. The chain should stop immediately with the engine at full speed. If the chain is slow to stop or does not stop, replace the brake band and clutch drum before use (Figure F19). -
Page 15: Cutting A Log Suspended Off The Ground
62SX Petrol Chainsaw Cutting a Log Suspended Off the Ground In area A, saw up from the bottom one-third and finish by sawing down from the top. In area B, saw down from the top one-third and finish by sawing up from the bottom (Figure F22). -
Page 16: Maintenance
62SX Petrol Chainsaw Maintenance WARNING! Before cleaning, inspecting, or repairing your unit, make sure that the engine has stopped and is cool. Disconnect the spark plug to prevent accidental starting. Maintenance After Each Use Air Filter Dust on the cleaner surface can be removed by tapping a corner of the cleaner against a hard surface. -
Page 17: Periodical Service Points
62SX Petrol Chainsaw Periodical Service Points Cylinder Fins Dust clogging between the cylinder fins will cause overheating of the engine. Periodically check and clean the cylinder fins after removing the air cleaner and the cylinder cover. When installing the cylinder cover, make sure that switch wires and grommets are positioned correctly in place (Figure F29). -
Page 18: Fuel Filter
62SX Petrol Chainsaw Check for cracks and for excessive wear interfering with the chain drive. If wearing is found, replace it with new one. Never fit a new chain on a worn sprocket, or a worn chain on a new sprocket. -
Page 19: Guide Bar
62SX Petrol Chainsaw 1. Appropriate gauge checker 2. Make the shoulder round 3. Depth gauge standard 4. Cutter length 5. Filing angle 6. Side plate angle 7. Top plate cutting angle Guide Bar • Reverse the bar occasionally to prevent partial wear. -
Page 20: Technical Specifications
62SX Petrol Chainsaw Technical Specifications Engine Type 2-stroke, single cylinder Maximum Power 2 kW (peak) Displacement 62cc Maximum Engine Speed 10000 RPM Engine Idle Speed 2800 RPM Ignition Type Bar Type Sprocket nose Bar Length 22" Maximum Cutting Length 430mm... - Page 21 Some experts believe that the incorrect or prolonged use of almost any product may lead to serious injury or death. To help reduce your risk, refer to the information below. For more information, see www.datastreamserver.com/safety • Consult all documentation, packaging and product labelling before use. Note that •...
