Shenzhen Yangda Security Co., Ltd
Shenzhen Yangda Security Co., Ltd
Warning and Disclaimer
Make sure not to adjust the gimbal or change its mechanical structure by yourself. Be sure
tomount the camera to gimbal before power on,and then install the gimbal on the
aircraft.
To avoid gimbal performance degradation or damage caused by imbalanced
payload,please do not add otherperipherals for the gimbal camera (filter,hood,etc).
When in aerial photography,make sure your aircraft flight control system is working at the
safe mode.
We strongly recommend that you remove aircraft propellers before doing gimbal
configuration.Use extranon-power battery for gimbal.Keep children away from the preset
flight region.
Considering that we are not able to control user's specific usage,installation,
assembly,modification( including the use of non-specified parts ),and improper use. Direct
or indirect damage or injurycaused by the behavior above, our company will not cover
any loss and responsibility.

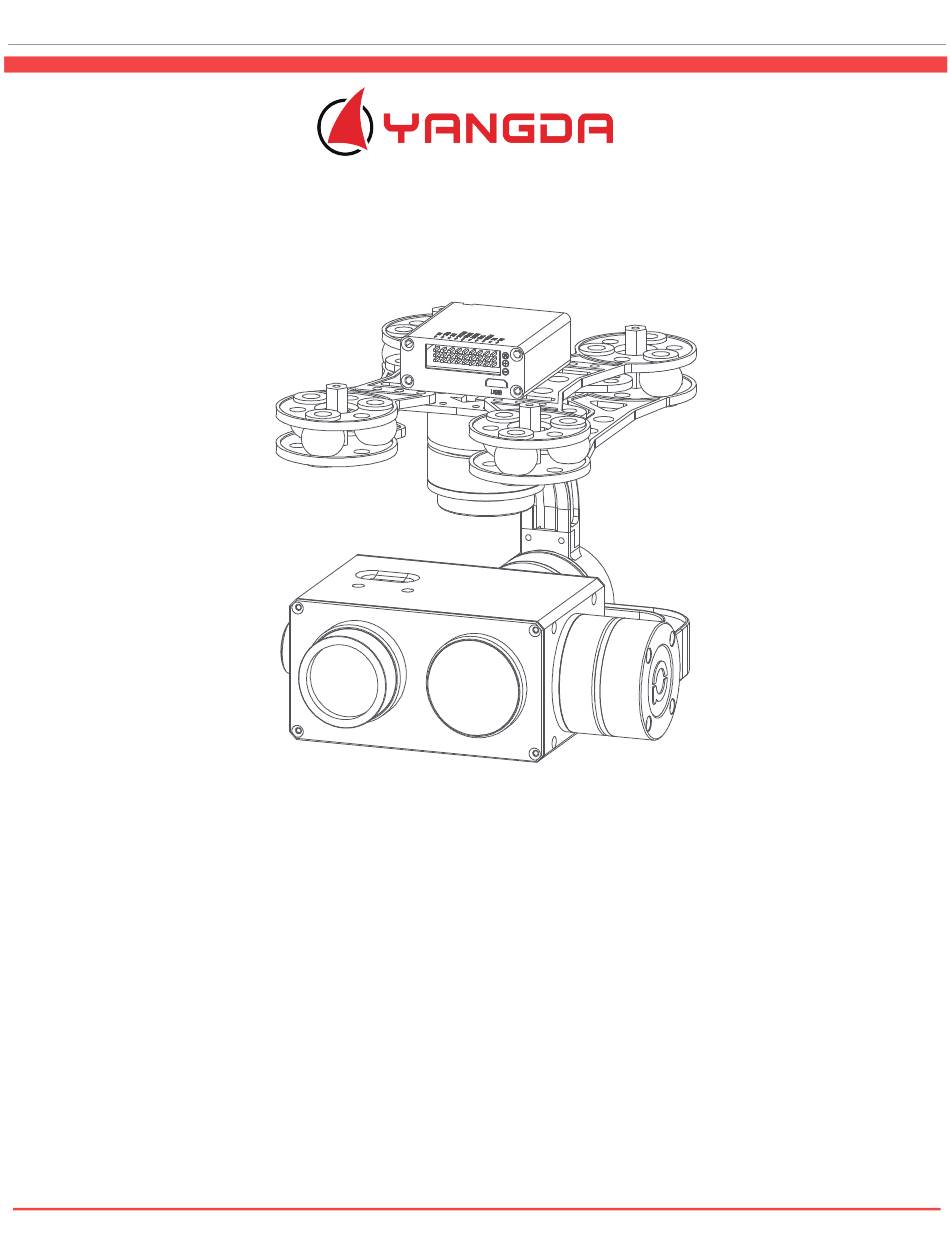

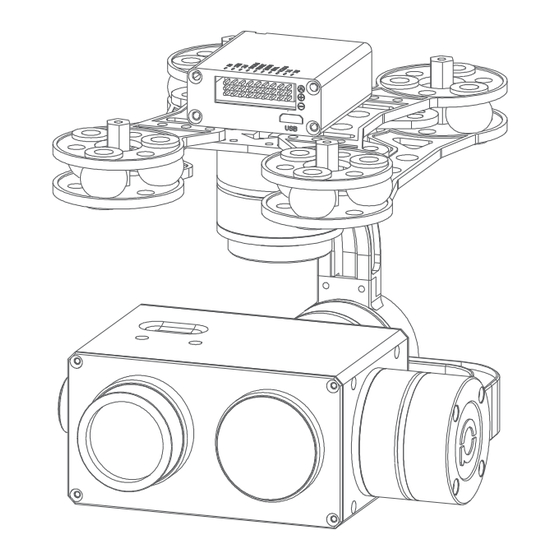

Eagle Eye-10IE
10X EO/IR Dual Sensor Zoom Camera
Website: www.yangdaonline.com Email: info@yangdaonline.com
Website: www.yangdaonline.com Email: info@yangdaonline.com
1
Advertisement
Related Manuals for Yangda Eagle Eye-10IE
Summary of Contents for Yangda Eagle Eye-10IE
- Page 1 Shenzhen Yangda Security Co., Ltd Shenzhen Yangda Security Co., Ltd Website: www.yangdaonline.com Email: info@yangdaonline.com Website: www.yangdaonline.com Email: info@yangdaonline.com Eagle Eye-10IE 10X EO/IR Dual Sensor Zoom Camera Warning and Disclaimer Make sure not to adjust the gimbal or change its mechanical structure by yourself. Be sure tomount the camera to gimbal before power on,and then install the gimbal on the aircraft.
- Page 2 Shenzhen Yangda Security Co., Ltd Shenzhen Yangda Security Co., Ltd Website: www.yangdaonline.com Email: info@yangdaonline.com Website: www.yangdaonline.com Email: info@yangdaonline.com Gimbal description [1]Upper damper board [2]Lower damper board [3]Rubber damper [4]Yaw axis motor [5]Roll axis motor [6]Pitch axis motor [7]Thermal camera [8]HD zoom camera Please make sure that the motor is not stopped by any object during the rotation, if the gimbal is blocked during rotation, please remove the obstruction immediately.
-
Page 3: Packing List
Shenzhen Yangda Security Co., Ltd Shenzhen Yangda Security Co., Ltd Website: www.yangdaonline.com Email: info@yangdaonline.com Website: www.yangdaonline.com Email: info@yangdaonline.com Packing List Copper cylindersr*4 Gimbal camera*1 USB to TTL *1 5mm*12 8mm*4 Button head hexagon screw*16 Anti shedding buckle*4 Gimbal Camera Dimension Unit :mm 135.6... - Page 4 Shenzhen Yangda Security Co., Ltd Shenzhen Yangda Security Co., Ltd Website: www.yangdaonline.com Email: info@yangdaonline.com Website: www.yangdaonline.com Email: info@yangdaonline.com Connection of Control Box and Wiring Instruction Control Box position 1. Insert SD card SD card: max 128G，class10 FAT32 or exFAT format SD card position 2.
- Page 5 Shenzhen Yangda Security Co., Ltd Shenzhen Yangda Security Co., Ltd Website: www.yangdaonline.com Email: info@yangdaonline.com Website: www.yangdaonline.com Email: info@yangdaonline.com 4. Power supply with 12V, red line is positive and black is negative. RX1 RX2 RX3 TX1 TX2 TX3 1 2 3 S.bus/ Rx...
-
Page 6: Camera Control
Shenzhen Yangda Security Co., Ltd Shenzhen Yangda Security Co., Ltd Website: www.yangdaonline.com Email: info@yangdaonline.com Website: www.yangdaonline.com Email: info@yangdaonline.com Camera control • Zoom control:daylight sensor zoom control,connect 3 gears or rocker channel • Focus:Picture in picture switch and palette switch,connect 3 gears channel. - Page 7 Shenzhen Yangda Security Co., Ltd Shenzhen Yangda Security Co., Ltd Website: www.yangdaonline.com Email: info@yangdaonline.com Website: www.yangdaonline.com Email: info@yangdaonline.com Pitch: PWM in, pitch control We have protocol for 1 pitch up c o n t ro l t h e g i m ba l...
- Page 8 Shenzhen Yangda Security Co., Ltd Shenzhen Yangda Security Co., Ltd Website: www.yangdaonline.com Email: info@yangdaonline.com Website: www.yangdaonline.com Email: info@yangdaonline.com ZOOM: Zoom the camera Focus: Focus the camera 1 zoom tele 1 focus tele 2 stop zoom 2 stop focus 3 zoom wide...
- Page 9 Shenzhen Yangda Security Co., Ltd Shenzhen Yangda Security Co., Ltd Website: www.yangdaonline.com Email: info@yangdaonline.com Website: www.yangdaonline.com Email: info@yangdaonline.com 10X zoom camera Sensor 1/2.9 inch 4MP CMOS SENSOR Video output 1080P/60 HDMI, 720P/30 Ethernet Video recorded 1080P/30 MP4 Focal length 10X optical focal zoom, 4.9-49mm...
