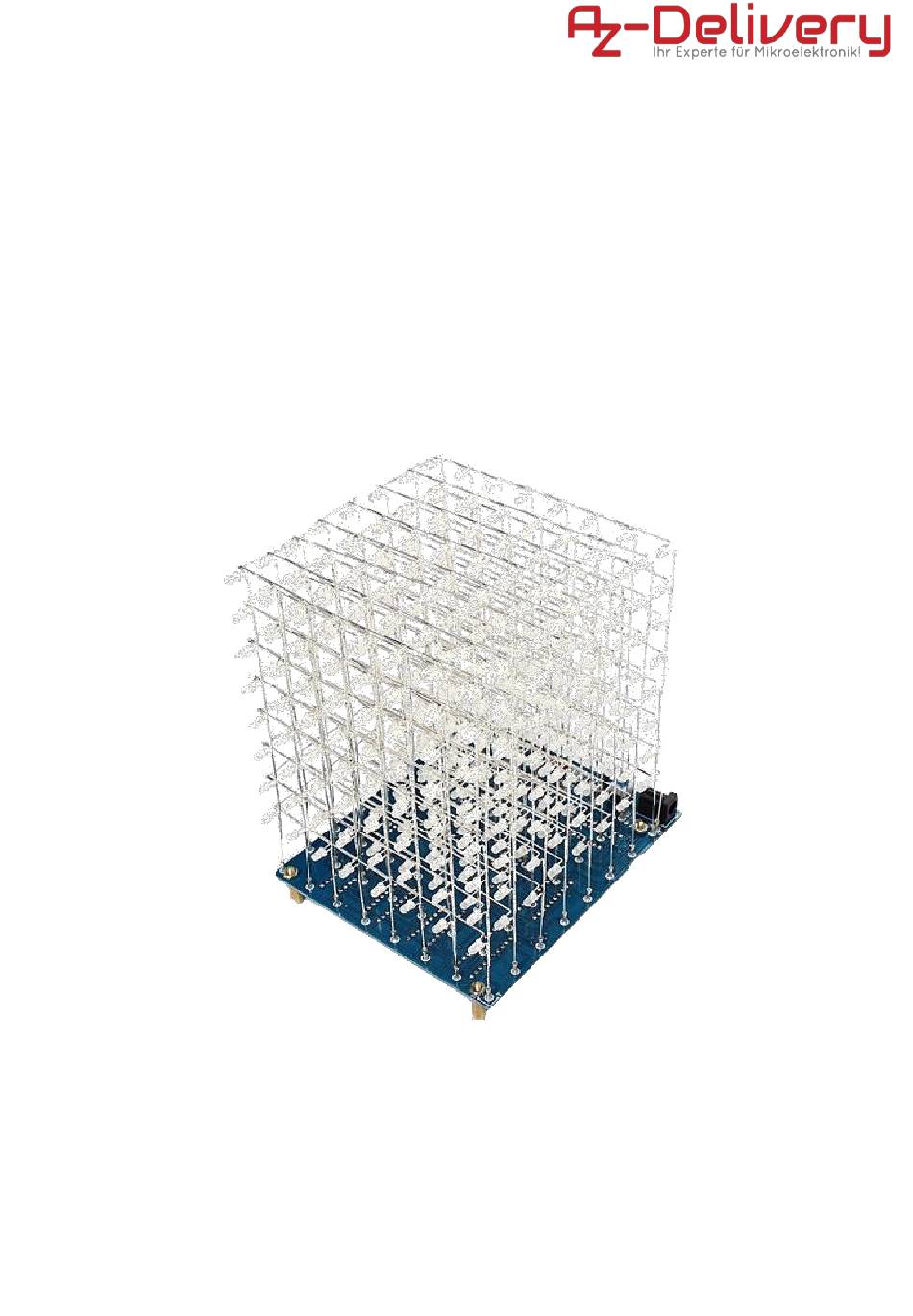

- Page 1 LED Cube 8x8x8 ebook LED Cube 8 x 8 x 8, 3mm Blau...
-
Page 2: Operating Conditions
Areas of application The kit serves the purpose of tinkering and experimenting in the areas of education, research and teaching. It is ideal for trainees, students and hobby electronics engineers to acquire and deepen basic knowledge of electrical engineering. Required knowledge and skills Users should have basic knowledge of electrical engineering and how to use tools such as soldering irons. - Page 3 small parts safely. Attention: Risk of injury from resilient components! Note: Do not apply excessive pressure to components and assemble them carefully. The kit works with electrical voltages and currents that, if used improperly, can lead to electric shocks, short circuits or fires. Please note the following safety instructions: Attention: Electrical voltage can be dangerous! Note: Never work on live parts and check whether the device is disconnected from the mains.
-
Page 4: Table Of Contents
LED Cube 8x8x8 Table of contents Scope of delivery Introduction Preliminary work The board LEDs bending LEDs soldering Inserting the panels into the sockets The last solder connections Software... -
Page 5: Scope Of Delivery
LED Cube 8x8x8 Scope of delivery Component Parameter Quantity 126.5 x 111.5 mm 1 Red LED 40 Pin female header DIP-20 IC Socket 74HC573 DIP-20 DIP-18 IC Socket ULN2803 DIP-18 DIP-40 IC Socket STC12C5A60S2 DIP-40 A09-103 Resistor 10K ohm Electrolytic Capacitor... -
Page 6: Introduction
LED Cube 8x8x8 Introduction Thank you for choosing our AZ-Delivery LED Cube with blue LEDs. On the following pages we will show you how to assemble this kit and use the cube. When assembling the cube, you should work as accurately as possible, as minor errors often affect the desired appearance of the final product. -
Page 7: Preliminary Work
LED Cube 8x8x8 Preliminary work In the first step, the circuit board is soldered as the basis for the kit. The two enclosed baseboards are separated into individual parts for this purpose and the plastic sheathing is removed:... -
Page 8: The Board
LED Cube 8x8x8 The board In the first step solder the prepared sockets for the LEDs and the two 4.7k resistors as shown in the figure:... - Page 9 LED Cube 8x8x8 In the next step solder the 8 resistors on the backside of the board as well as the enclosed sockets, the figure below shows the already assembled board: When soldering the sockets, pay attention to the auxiliary markings for orientation on the board (notch).
- Page 10 LED Cube 8x8x8 The next step is to solder the resistor network, the crystal and the two ceramic capacitors. Pay attention to the correct orientation of the component in the resistor network: In the last step, solder the missing components to the top side of the board.
- Page 11 LED Cube 8x8x8 This completes the soldering of the circuit board. In the next steps, the drilling template must be made. To do this, print out the "Drilling template" file and stick it onto a suitable support such as a piece of chipboard, a wooden board or, if necessary, onto a piece of thick cardboard.
-
Page 12: Leds Bending
LED Cube 8x8x8 LEDs bending Tip: A small pair of electronic needle-nose pliers is ideal for bending the LEDs as evenly and precisely as possible. To clarify the bending scheme, the individual steps for bending an LED are described: 1. Place the LED in front of you on a suitable surface, the diode with the "head"... -
Page 13: Leds Soldering
LED Cube 8x8x8 LEDs soldering Place the curved LEDs in the drilling template as shown in the following figures and solder the LEDs horizontally first: If the first row is soldered cleanly, the other diodes can be soldered in the... - Page 14 LED Cube 8x8x8 The anodes and cathodes of the LEDs must not touch each other when crossing, otherwise a short circuit will occur and the LED Cube will not work. A finished layer should look like in the picture: After soldering a layer, a function test of the LEDs is recommended, since these can be replaced later only with great difficulty.
-
Page 15: Inserting The Panels Into The Sockets
LED Cube 8x8x8 Inserting the panels into the sockets Insert the finished layer with the 8 x 8 soldered LEDs with the positive pin (anode) into the sockets on the board. Leave the first row of sockets (marked C1 - C8) free. -
Page 16: The Last Solder Connections
LED Cube 8x8x8 The last solder connections In the last step, the horizontal planes still have to be connected to the free sockets in the connection area of the board (riser). You can use the enclosed red cable for this or use your own wires for aesthetic reasons. -
Page 17: Software
LED Cube 8x8x8 Software For programming you need a USB-Serial adapter, such you can also purchase in our store. For example: https://www.az-delivery.de/products/usb-ttl-adapter-3-3v-oder- 5v-mit-ch340g-und-20cm-jumperkabel The connection is as follows:... - Page 18 LED Cube 8x8x8 To program the LED Cube you need the "STC-ISP" program. First download and unzip the following Github directory: https://github.com/tomazas/ledcube8x8x8 In the "Tools" folder you will find “stc-isp-15xx-v6.85.zip” unpack them. Now you can download stc-isp-15xx-v6.85.exe starten. First search for STC12C5A60S2 at "MCU Type".
- Page 19 LED Cube 8x8x8 Next, select the COM port to which the USB-Serial Adapter is connected.
- Page 20 LED Cube 8x8x8 Select the firmware (.hex) You can find the firmware in the downloaded Github directory under "Firmware" > "8X8X8.hex"...
- Page 21 LED Cube 8x8x8 Finally, click on "Download/Program" or "Re-Program". In order for the STC to be programmed, it must be reset shortly beforehand. To do this, simply switch the switch OFF and ON again.
