Summary of Contents for Ideal Heating iAssist Wi-Fi Module 21
- Page 1 Wi-Fi Module 21 Installation Guide Installation Guide...
- Page 2 SAFETY INDUSTRY CANADA (IC) The Wi-Fi Module 21 Kit must part 15 of the FCC Rules. the receiver is connected. COMPLIANCE NOTICE be installed by a qualified These limits are designed Consult the dealer or an person with the appropriate provide reasonable experienced...

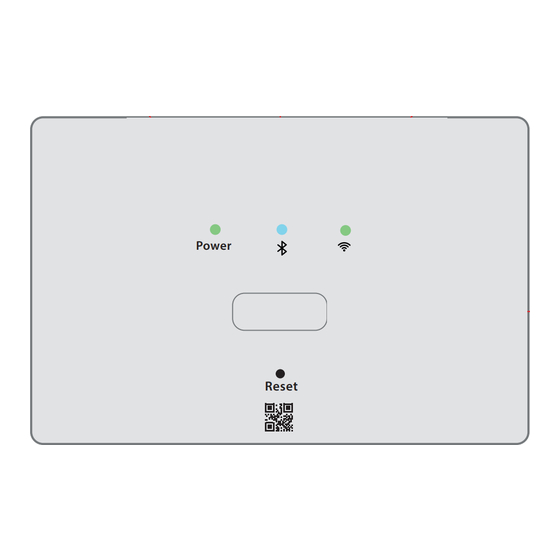

- Page 3 Wi-Fi Module 21 Overview Power LED Bluetooth Set-up Mode Wi-Fi LED Power Pair Button Reset PAIRING STEPS Locate the Wi-Fi Module 21 in the boiler LOCATION GUIDELINES The Module 21 (shown below) connects to the home Wi-Fi network through a Wi-Fi chip. The home Wi-Fi router should be positioned no more than 100ft from the Module 21.
- Page 4 LED KEY Description Green - Power On Power No Illumination - No Power Blue - Set-up mode enabled; cell phone connected to boiler Bluetooth Set-up Mode Blinking Blue - Set-up mode enabled; cell phone not connected to boiler No Illumination - Set-up mode disabled (this will occur after registration is complete) Green - Connected to Wi-Fi (router and cloud) Blue - Connected to the Wi-Fi but no cloud connection Wi-Fi...
