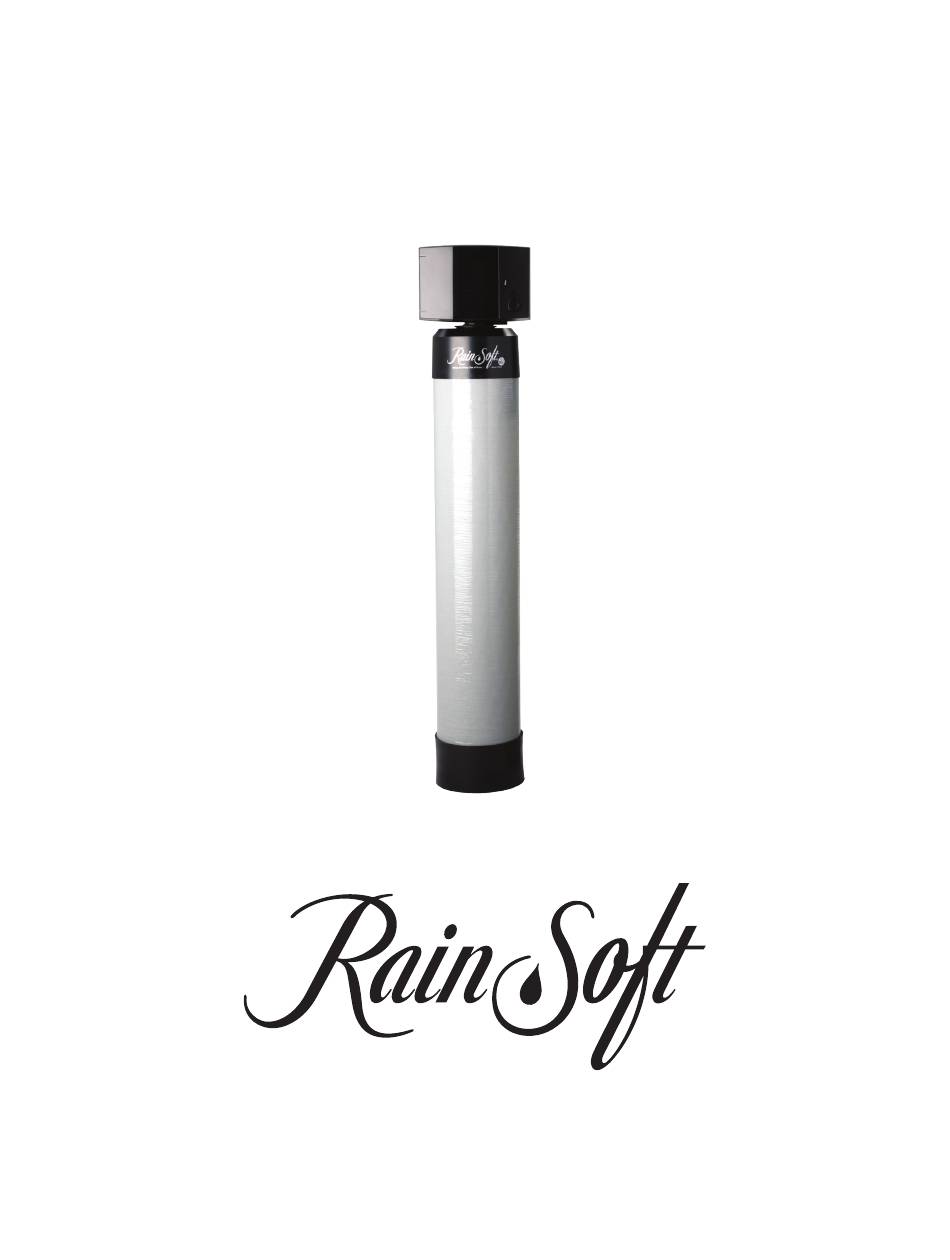

- Page 1 TC-FLT SERIES ACID NEUTRALIZING WATER TREATMENT SYSTEM (Generation 6 of Controls) Part No. 50034 Rev C 09/24 RAINSOFT TC-FLT K SERIES OWNER’S MANUAL RAINSOFT.COM...
-
Page 2: Table Of Contents
Warranty Information ......14 Installer Specification Sheet ......15 2 • RAINSOFT TC-FLT K SERIES OWNER’S MANUAL... -
Page 3: Application Limitations
Questions? If you have any questions regarding the installation, operation, or servicing of this system, please contact your local RainSoft Dealer. Your local RainSoft Dealer is familiar with your particular water conditions, and is able to address your concerns promptly and efficiently. -
Page 4: Product Certification Information
This is done primarily for aesthetics, however this will add stability to the system as well. • We recommend all systems installed outdoors include the valve weather cover part # 52562. 4 • RAINSOFT TC-FLT K SERIES OWNER’S MANUAL... - Page 5 (see figure 3). There is an arrow molded into the bypass valve indicating the Important Note: Too much weight on the plumbing connections will cause a leak. direction of flow. RAINSOFT TC-FLT K SERIES OWNER’S MANUAL • 5...
- Page 6 1 /2" DRAI N LI NE Figure 5 • The air gap should be installed between the end of the drain line and the drain to prevent possible back siphoning (see figure 6). 6 • RAINSOFT TC-FLT K SERIES OWNER’S MANUAL...
-
Page 7: System Start Up
• minutes. Let the solution stand for a minimum of thirty minutes. Run the hot water until the water looks clear and no bleach smell is detected. • Re-install the post filter. RAINSOFT TC-FLT K SERIES OWNER’S MANUAL • 7... -
Page 8: Maintenance Requirements
AN OVERVIEW OF THE REGENERATION PROCESS Your RainSoft TC Filter performs a periodic regeneration cycle to clean and refresh the media bed. How often it regenerates depends on your water use, incoming water conditions, and several other factors, but one (1) to two (2) regenerations per week can be typical. An automatic regeneration should never occur more than once a day, and the Regen Time is set to occur when you are unlikely to be using water (Default setting is 2:00 AM). -
Page 9: Tc Display
• The display will return to the home screen. Display will scroll between, the Current Time of Day, Regen at: (Time set). Note this regen later time is set to regen at the normally schedule regen. RAINSOFT TC-FLT K SERIES OWNER’S MANUAL • 9... -
Page 10: Installer Mode
Your system is equipped to alert you for alarm situations: When Alarm is active, your TC will display the Error Message and on the Display. Contact your RainSoft Dealer if an Error Message is present. SYSTEM TESTING To test the functions of your TC Product, example the key pad, the flow meter or motor. -
Page 11: Troubleshooting Guide
1. Call your RainSoft Dealer to clean the valve. If the troubleshooting guide did not resolve the symptom, please contact your local RainSoft Dealer for service. If you cannot locate your local RainSoft Dealer, please contact RainSoft Customer Service at 1-800-860-7638 or logon to www.rainsoft.com for the name and location of your nearest authorized Dealer. -
Page 12: Exploded Views And Parts Lists
1/2" NPT X 1/2" Barb Poly Elbow 13329 O-ring - 014 17949 Injector Seal 17950 Injector Cap 17951 10-24 x 1.0 Screw Hex Washer Head 18271 Brine Valve Plug 17958 O-ring - 015 18270 Filter Plug 12 • RAINSOFT TC-FLT K SERIES OWNER’S MANUAL... - Page 13 TC HYBRID FRONT HOUSING PCB ASSY 51912 WIRE HARNESS 1 POWER 24 VDC 52462 GEN6 DOOR TC 52491 GEN6 REAR HOUSING WITH INSERTS 51907 SPRING FRONT HOUSING DOOR 12280 7/8 SLEEVE CAP RAINSOFT TC-FLT K SERIES OWNER’S MANUAL • 13...
-
Page 14: Limited Lifetime Warranty
RainSoft part(s) furnished, for a nominal charge to cover labor, handling, packing and the increase, if any, in the retail price of the part(s) since the date of purchase. Genuine RainSoft parts must be used. Failure to use genuine RainSoft parts will void the warranty and certifications. -
Page 15: Installer Specification Sheet
INSTALLER SPECIFICATION SHEET Dealer Name: Phone Number: Installation Number: Installation Date: Model Number: Serial Number: Line Pressure: (psi) Iron: Sulfur: Backwash Flow Rate: (gpm) Recommended Regeneration Frequency: Days Recommended Backwash Time: (10 minutes minimum) RAINSOFT TC-FLT K SERIES OWNER’S MANUAL • 15... - Page 16 Rainsoft, A Division of Aquion | 101 S. Gary Avenue | Roselle, Illinois 60172 | Main: 847.437.9400 | Customer Service : 800.860.7638 | rainsoft.com All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners.
