Overview

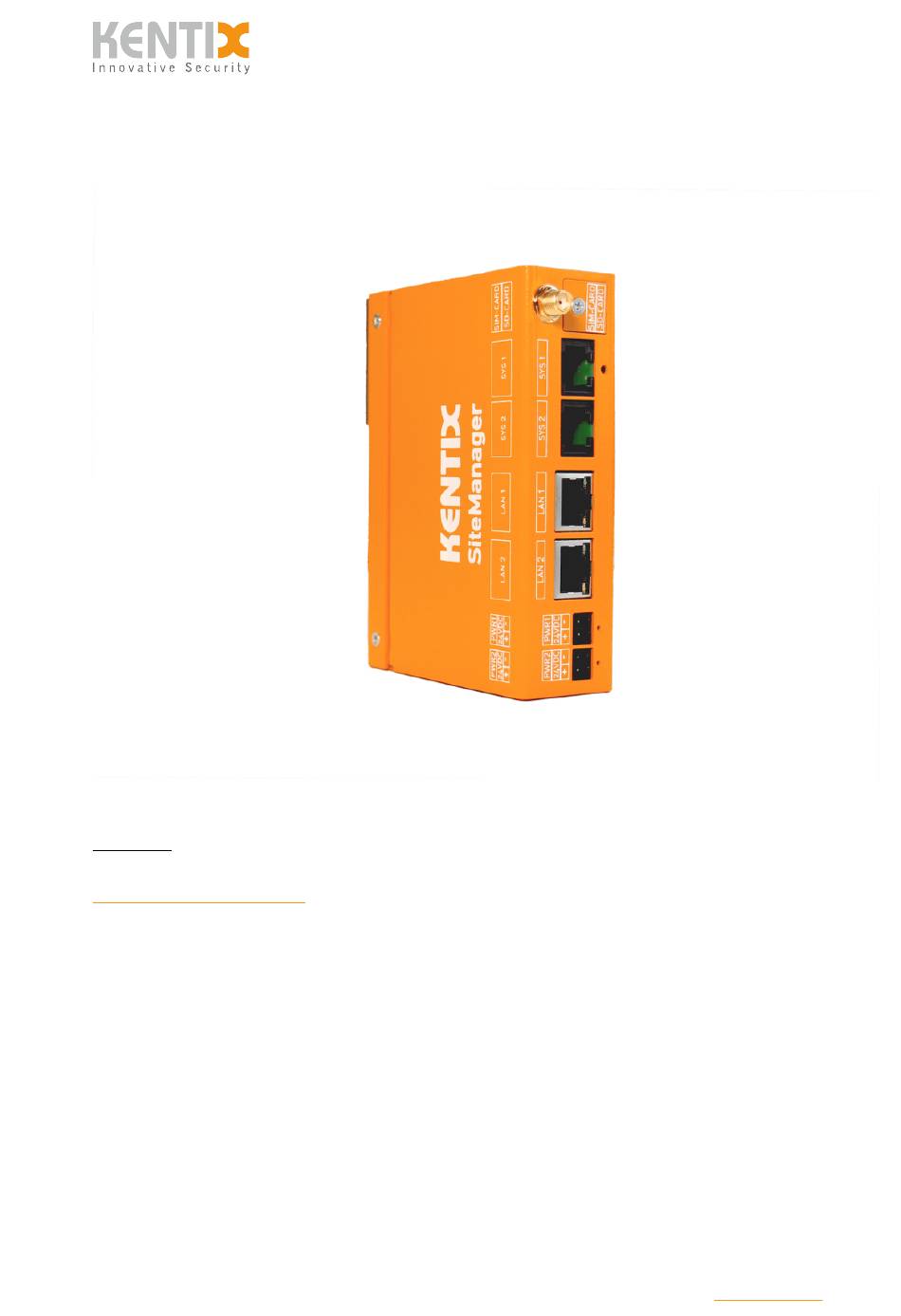

Kentix SiteManager is the central management unit for all Kentix installations. The SiteManager
always works in the Main-Device operating mode and brings together all functional areas such as
SmartAccess, SmartMonitoring, SmartPDU and SmartVideo. Up to 250 devices from different
functional areas can be managed. It also includes the functionality of an alarm control center with
various transmission paths (network, mobile radio) for alerting. The KentixONE software is already
integrated via the integrated web server (HTTPS). The configuration is done via web browser.
The SiteManager offers several installation options such as DIN rail mounting on 35mm DIN rail or
installation in a 19" IT rack with one height unit.
Power is supplied via the integrated redundancy module with two external power supplies.
© Kentix GmbH. This file was automatically generated on 2024-12-18 05:33:35. Please visit
docs.kentix.com
for the
latest documentation.
Advertisement
Table of Contents
Summary of Contents for Kentix SiteManager KSM-DR-02
- Page 1 Datasheet SiteManager Overview Kentix SiteManager is the central management unit for all Kentix installations. The SiteManager always works in the Main-Device operating mode and brings together all functional areas such as SmartAccess, SmartMonitoring, SmartPDU and SmartVideo. Up to 250 devices from different functional areas can be managed.
-
Page 2: Connection And Operating Elements
Kentix accepts no liability for damage to the equipment or components resulting from incorrect installation. No liability is accepted for incorrectly programmed units. Kentix shall not be liable in the event of malfunctions, damage to property or other damage. Use of the products, transport and storage Protect the device during transport, storage and operation from Protect moisture, dirt and damage. - Page 3 SiteManager with 4G modem (appliance) – MANUAL | 3 Connection 1 and connection 2 for the power supply (24VDC) of the Kentix SiteManager 1GBit LAN connection 1 and 100MBit LAN connection 2 System port 1 (type A) and system port 2 (type A) for connecting expansion sensors Nano SIM card (insert with the contacts facing downwards) and micro SD card (insert with the contacts facing upwards).
- Page 4 Status LED 1 and status LED 2 Reset button for resetting to factory settings SMA socket for connecting the included LTE/4G magnetic base antenna Dimensions © Kentix GmbH. This file was automatically generated on 2024-12-18 05:33:35. Please visit docs.kentix.com for the latest documentation.
- Page 5 SiteManager with 4G modem (appliance) – MANUAL | 5 Dimensions top view © Kentix GmbH. This file was automatically generated on 2024-12-18 05:33:35. Please visit docs.kentix.com for the latest documentation.
-
Page 6: Power Supply
TX10 hexagon socket is required for this purpose. In addition, the supplied Velcro strips for cable routing can be attached to the mounting brackets. © Kentix GmbH. This file was automatically generated on 2024-12-18 05:33:35. Please visit docs.kentix.com for the... -
Page 7: Reset To Factory Settings
Before you start the configuration, make sure that the software is up to date on all network-enabled Kentix devices. The version status must be the same on all devices. © Kentix GmbH. This file was automatically generated on 2024-12-18 05:33:35. Please visit docs.kentix.com for the latest documentation. -
Page 8: Further Information
KentixONE Further information For more information on how to build a KentixOne system and how to extend it, see the tutorial videos. © Kentix GmbH. This file was automatically generated on 2024-12-18 05:33:35. Please visit docs.kentix.com for the latest documentation.
