Radicson
Technology

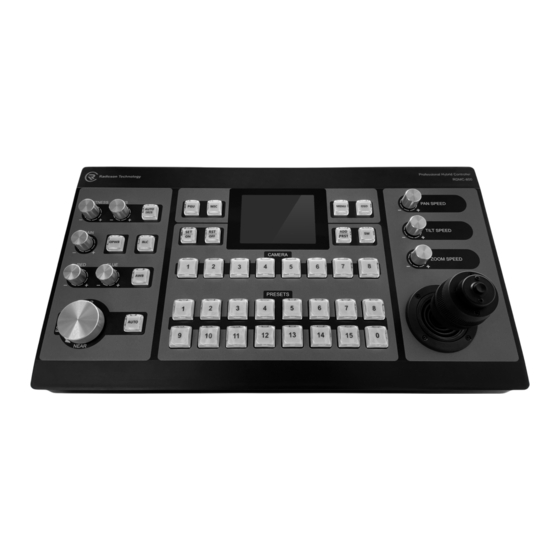

RDMC-800
Professional Hybrid Controller
Anodized Aluminum
Large 3.2 Inch
3D-AXIS
Integrated Case
Graphical LCD
Accurate Joystick
Supports Various
Full Function with
Special Features
Protocols &
37 Buttons & 9 Rotary
with PGU
Interfaces
info@radicson.com
www.radicson.com
5
Radicson
Technology
Advertisement
Table of Contents
Summary of Contents for Radicson RDMC-800
- Page 1 Radicson Technology RDMC-800 Professional Hybrid Controller Anodized Aluminum Large 3.2 Inch 3D-AXIS Integrated Case Graphical LCD Accurate Joystick Supports Various Full Function with Special Features Protocols & 37 Buttons & 9 Rotary with PGU Interfaces info@radicson.com www.radicson.com Radicson Technology...
-
Page 2: Table Of Contents
Radicson RDMC-800 Technology Professional Hybrid Controller Contents Safety Note ........................2 Contact Us ........................2 Features .......................... 3 Specification ......................... 4 Dimensions ......................4 Technical Specification ..................4 Physical Specification ..................4 Port Pinout ........................5 Buttons Function ......................6 Display Summary ...................... -
Page 3: Safety Note
Before using RDMC-800 device, please ensure that you read and understand the safety precautions below: - Do not attempt to open the case of RDMC-800 or modify it in any way, as this will void the warranty. - Keep the RDMC-800 away from water and other liquids, as this may cause the unit to malfunction. -
Page 4: Features
Radicson RDMC-800 Technology Professional Hybrid Controller Features Controls up to 8 Cameras via RS-232 / RS-422 / RS-485 Interface Supports Sony Visca, Pelco-D, Pelco-P and Panasonic Protocols Pan, Tilt and Zoom Controlling with speed definition for P/T/Z separately All camera settings can be accessed through the OSD menu from joystick Adjusment camera settings (Focus, IRIS, WB and etc.) via specific keys... -
Page 5: Specification
Radicson RDMC-800 Technology Professional Hybrid Controller Specification Professional Hybrid Controller BRIGHTNESS IRIS PAN SPEED 3.2” TILT SPEED GAIN CAMERA 198mm ZOOM SPEED BLUE PRESETS NEAR 361mm 44mm Interface 4x RJ-45 RS-232/422/485 Button 8x Setting Push-Button 1x RJ-45 Ethernet (LAN) 8x Camera Push-Button... -
Page 6: Port Pinout
Radicson RDMC-800 Technology Professional Hybrid Controller Port Pinout Switcher Channel RS-232 / RS-422 / RS-485 RS-232 RS-422 / RS-485 Serial 1 Serial 2 TX RX TX RX TX RX TX+ TX- 1 2 3 4 5 6 7 8 5V-DC... -
Page 7: Buttons Function
Radicson RDMC-800 Technology Professional Hybrid Controller Buttons Function Professional Hybrid Controller BRIGHTNESS IRIS PAN SPEED MENU AUTO IRIS TILT SPEED GAIN PRST OPWB CAMERA ZOOM SPEED BLUE PRESETS AUTO NEAR Camera horizontal movement speed (1 ~ 10) PAN SPEED Camera vertical movement speed (1 ~ 10) - Page 8 Radicson RDMC-800 Technology Professional Hybrid Controller When connected to PGU (Auto Tracking System) through ethernet (LAN) port, take the PGU to Auto/Manual mode PGU Button * in manual mode, auto track is disabled and you can control all cameras that...
-
Page 9: Display Summary
Radicson RDMC-800 Technology Professional Hybrid Controller Display Summary Camera: 1 Disconnected Switch Port 1 CH: 1 PT Stop Speed P: 7 T: 5 Z: 4 Camera Number The number of selected camera Camera 1 to 8 Camera Port The connection port of selected camera... -
Page 10: Setting Items
Radicson RDMC-800 Technology Professional Hybrid Controller Setting Items C.C.J Setting Cameras Setting Ports Setting LAN Setting Video Switch Setting Device Setting Connection: Port 1 to Port 4 / PGU Protocol: Visca Preset / Visca Position Cameras Setting Camera 1 to 8 Setting...
