- Page 1 LD6000-INX Online UPS Internal...
- Page 2 Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly. Please read safety information and operating instructions carefully before operating this unit. Internal...
-
Page 3: Table Of Contents
Table of Contents 1. SAFETY AND EMC INSTRUCTIONS ....................1 1-1. T ......................1 RANSPORTATION AND TORAGE 1-2. P ..........................1 REPARATION 1-3. I ..........................1 NSTALLATION 1-4......................2 ONNECTION ARNINGS 1-5. O ............................3 PERATION 1-6. S ............................3 TANDARDS 2. INSTALLATION AND OPERATION ....................4 2-1. -
Page 4: Safety And Emc Instructions
1. Safety and EMC instructions 1-1. Transportation and Storage Please transport the UPS only in the original package to protect against shocks and impacts. The UPS must be stored in the room which is ventilated and dry. 1-2. Preparation Condensation may occur if the UPS system is moved directly from cold to warm environment. The UPS system must be absolutely dry before being installed. -
Page 5: Connection Warnings
1-4. Connection Warnings • There is no standard backfeed protection inside the UPS, hence please isolate the UPS before working according to this circuit. The isolation device must be able to carry the UPS input current. • This UPS should be connected with TN earthing system. •... -
Page 6: Operation
1-5. Operation Do not disconnect the earth conductor cable on the UPS or the building wiring terminals at any time since this would cancel the protective earth of the UPS system and of all connected loads. The UPS system features its own current source (batteries). The UPS output sockets or output terminal blocks may be electrically live even if the UPS system is not connected to the building wiring outlet. -
Page 7: Installation And Operation
These UPS do not have internal batteries. It needs external SMF batteries. Model Power Rating LD6000-INX 6000VA NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged during transportation. Do not turn on the unit and notify the carrier and dealer immediately if there is any damage or missing parts. - Page 8 Output Battery Ground LD6000-INX NOTE: Selection of color of wires should be as per the local electrical laws and regulations. Remove the terminal block cover on the rear panel of UPS then connect the wires according to the following terminal block diagram: Connect the earth wire first when making wire connection.
-
Page 9: Software Installation
2-3. Software Installation For optimal computer system protection, install UPS monitoring software to fully configure UPS shutdown. 3. Operations 3-1. Button Operation Button Function Turn on the UPS: Press and hold the button more than 1s to turn on the ON/Enter Button UPS. -
Page 10: Fault Information

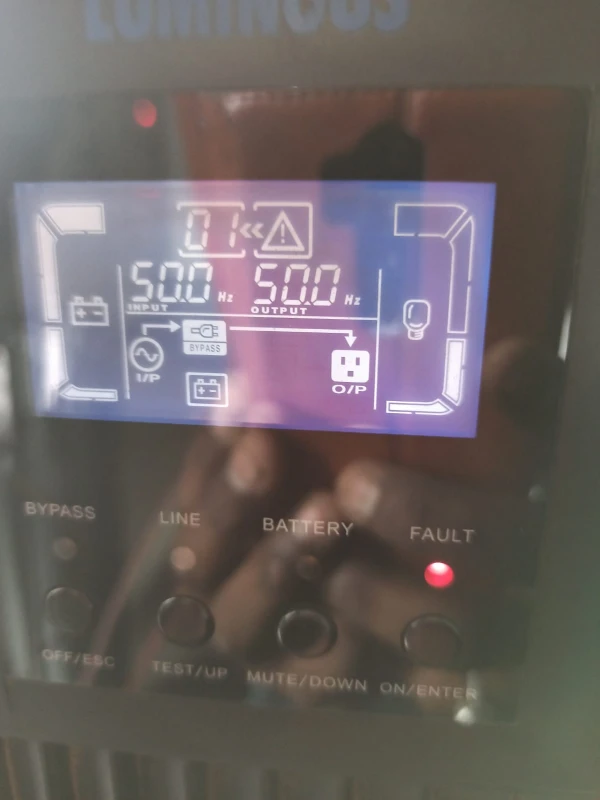

LCD Panel: Display Function Backup time information Indicates the backup time in numbers. H: hours, M: minutes, S: seconds Fault information Indicates that the warning and fault occurs. Indicates the fault codes, and the codes are listed in details in section 3- Mute operation Indicates that the UPS alarm is disabled. -
Page 11: Battery Information
Battery information Indicates the Battery capacity by 0-25%, 26-50%, 51-75%, and 76- 100%. Indicates the battery is fault. Indicates low battery level and low battery voltage. Input & Battery voltage information Indicates the input voltage or frequency or battery voltage. Vac: Input voltage, Vdc: battery voltage, Hz: input frequency 3-3. -
Page 12: Single Ups Operation
3-4. Single UPS Operation 1. Turn on the UPS with utility power supply (in AC mode) 1) After power supply is connected correctly, set the breaker of the battery pack at “ON” position (if available). Then, set the input breaker at “ON” position. At this time, the fan starts running and the UPS supplies power to the loads via the bypass. - Page 13 4) The charging current can be changed from 1A to 6A via LCD or software. Please make sure that the charging current is suitable to battery specification. 5. Battery mode operation 1) When the UPS is in Battery mode, the buzzer will beep according to different battery capacity. If the battery capacity is more than 25%, the buzzer will beep once every 4 seconds.
-
Page 14: Abbreviation Meaning In Lcd Display
2) Please check the loads, wiring, and ventilation, utility, battery and so on after the fault occurs. Don’t try to turn on the UPS again before solving the problems. If the problems can’t be fixed, please contact the Luminous service immediately. In case of emergency, please cut off the connection from utility, external battery and output immediately to avoid any risk. - Page 15 Programs available list for parameter 1: Code Description Bypass CVCF Battery Battery Test Output voltage Output frequency Voltage range for bypass Frequency range for bypass Reserved Reserved Reserved Bypass mode setting Battery maximum discharge time setting Reserved Reserved Reserved Battery voltage Calibration Reserved Inverter voltage Calibration Floating charger voltage adjustment...
- Page 16 CF: Setting UPS to CVCF mode. If selected, the output frequency will be fixed at 50Hz or 60Hz according to setting in parameter 2. The input frequency could be from 46Hz to 64Hz. NCF: Setting UPS to normal mode (non-CVCF mode). If selected, the output frequency will synchronize with the input frequency within 46~54 Hz at 50Hz or within 56~64 Hz at 60Hz according to setting in parameter 2.
-
Page 17: Reserved Interface
07: reserved Interface Setting reserved 08: Bypass mode setting Interface Setting Parameter 2: OPN: Bypass allowed. When selected, UPS will run at Bypass mode depending on bypass enabled/disabled setting. This is default setting. This is the default setting. FBD: Bypass not allowed. - Page 18 10: reserved Interface Setting reserved 11: reserved Interface Setting reserved 12: reserved Interface Setting reserved 13: Battery voltage calibration Interface Setting Parameter 2: Select “Add” or “Sub” function to calibrate battery voltage to real figure. Parameter 3: The voltage setting range is from 0V to 5.7V. The default value is 0V.
- Page 19 15: Inverter voltage calibration Interface Setting Parameter 2: you may choose Add or Sub to calibrate inverter voltage Parameter 3: The voltage setting range is from 0V to 6.4V. The default value is 0V. 16: Floating mode charger voltage adjustment ...
-
Page 20: Setting Parameter
20: Backup time calibration Interface Setting Parameter 3: Calibrate the displayed backup time by adjusting this multiplier factor. The formulation is listed below: Displayed backup time=Original calculated backup time x Multiplier factor The default value of multiplier factor is 1.0 and the setting range is from 0.5 to 2. -
Page 21: Fault Code
LCD display Battery Test Description When UPS is in AC mode or CVCF mode, press “Test” key for more than 1s. Then, the UPS will beep once and start “Battery Test”. The line between I/P and inverter icons will blink to remind users. This operation is used to check the battery status. -
Page 22: Maintenance Bypass Switch
EPO enable Beeping every second Over temperature Beeping every second Charger failure Beeping every second Overload 3 times in 30min Beeping every second Maintenance bypass switch Beeping every second handle lock is open 3-10. Maintenance Bypass Switch Maintenance Bypass Switch (MBS) is designed to provide power during UPS maintenance or replacement. - Page 23 Procedure to transfer the load from Maintenance Bypass to UPS mode a) Verify and ensure that Input circuit breaker is closed and battery is connected to the UPS. b) Verify and ensure that LCD screen is showing bypass mode. c) Transfer the rotary bypass switch from “Bypass” to “UPS” in clockwise rotation. d) Re-assemble and screw the MBS handle lock handle lock back to its original position.
-
Page 24: Trouble Shooting
4. Trouble Shooting If the UPS system does not operate correctly, you can try solving the problem by using the table below. Symptom Possible cause Remedy No indication and alarm in the front The AC input power is not Check if input cable is firmly display panel even though the mains connected properly. -
Page 25: Maintenance
5. Maintenance The UPS system operates with hazardous voltages. Repairs may be carried out only by qualified maintenance personnel. Even after the unit is disconnected from the mains, components inside the UPS system are still connected to the batteries which could be potentially dangerous. Before carrying out any kind of service and/or maintenance, disconnect the batteries and verify that no current is present and no hazardous voltage exists in the terminals of high capacity capacitor such as BUS-capacitors. -
Page 26: Specifications
6. Specifications CAPACITY* 6000 VA / 4800 W INPUT 110 VAC ± 3 % at 50% Load; Low Line Loss 176 VAC ± 3 % at 100% Load Low Line Comeback Low Line Loss Voltage + 10V Voltage Range High Line Loss 280 VAC ±... -
Page 27: Equipment Details
EQUIPMENT DETAILS SERIAL# INSPECTED BY DATE OF INSPECTION DISTRIBUTOR’S / RETAILER’S INVOICE NO. & DATE OF SALE SERVICE In the unlikely event if you are facing a problem that has not been sorted out by troubleshooting, complaints may be logged on our 24-hour service call-desk by calling toll free number 1860 103 0011 or 1800 419 4272 WARRANTY Schneider Electric IT Business India Private Ltd. - Page 28 EN 990-6530 09/2021 Internal...
