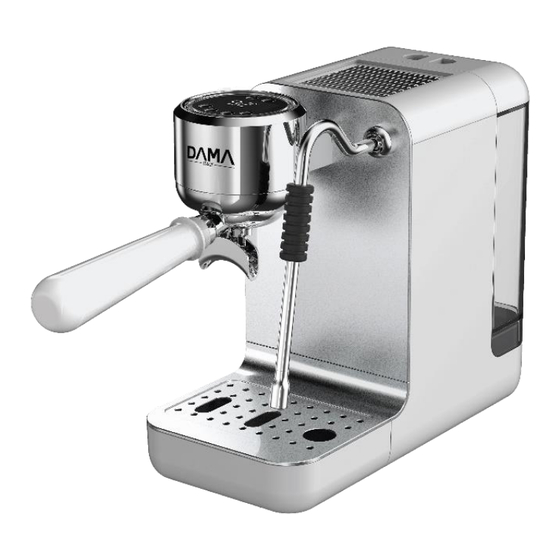

Summary of Contents for dama DCM200
-
Page 2: Important Safeguards
Item DCM200 Voltage 220-240V Frequency 50/60Hz Power 1350W Water tank 1.4L Pressure 19Bar IMPORTANT SAFEGUARDS Before using machine always carefully read and comply with allth ese instructions. W e cannot accept any resp onsibility for th e consequences of improper use. - Page 3 3. Do not allow children or disabled persons to operate without any guidance or supervision. 4. Do not place the coffee maker on hot surface or beside fire, avoid to be damaged 5. Remove plug from wall outlet before cleaning and when not in use. Allow appliance to cool down completely before taking off, attaching components or before cleaning 6.
- Page 4 it properly after reading Accessories 1. Power ON/OFF switch 2. Set up 3. Display 4. Hot water 5. Single-cup coffee 6.Double-cup coffee 7. Steam 8. Cup plate 9. Water tank cover 10. Water tank 11.Steam holder 12. Steam pipe 13. Steam nozzle 14.
- Page 5 Operation manual ⚫ “ ”ON/OFF switch: press ON/OFF one time, indicator lamp “ ” flashing 一一》machine start to preheat 一一》after preheated(indicator lamp lights on), the machine enters the making coffee or hot water mode, during the extraction processor preheat finished, press “ ”key one time,the machine stop working.
- Page 6 ⚫ “ ”Single cup:After preheated press single cup“ ”lights on 一一》start extracting coffee, display shows starting to process time, a utomatically machine stops working until the set coffee volume is reached 一一》lights on,or press “ ”one more time, lights on 一一》stop to work. ⚫...
- Page 7 Water t 3.To ensure the pure taste of the coffee made for the first time,you need to clean all the detachable components,the specific steps for cleaning are as follows: 1) Pour water into water tank and the water level should not exceed the "max" mark， Put back the water tank and close the water cover;...
- Page 8 are flashing，The machine starts to preheat, when the indicator lights on, the preheat is completed 6) After the preheating is completed, turn the steam knob counterclockwise to the maximum position, and the electromagnetic pump works until continuous hot water comes out from the steam pipe and at least 30 seconds (this process takes 1-2 minutes) to clean the steam pipe, then turn off the steam switch;...
- Page 9 position " " (must be tightened); 6..Put cup(s) under coffee outlet; 8.Press the automatic coffee function button, the machine starts to extract coffee, automatically extract coffee until the machine stops working (beeping prompt) Warning: Do not leave the coffee machine unattended during the coffee making process, as it sometimes requires manual operation.
- Page 10 range is 25 ~ 150ML, default 35ML ± 10g, release the button“ ”(the lights on) set to complete. 3. .Individual setting adjustment of doublee cup coffee volume) : long press the double cup button“ ”3 seconds later the walking lantern“Up and down flicker”(note: keep the long press and don't let go) , the setting range is 50~300mL, default 70mL±20, release the button“...
- Page 11 ★ How to make a good cup of coffee Grinding coffee bean and grinding quality largely determines the quality of coffee, the time should be 25s-30s to make a cup of coffee, if the powder is too coarse, coffee extract inadequate, the taste is light, and color is lighter, the cream also will be very thin, and color is white;...
- Page 12 2. It is recommended to weigh each time you make coffee to ensure the amount of coffee powder added (single cup: 12-13g; double cup: 18-19g), and compact the coffee powder with a powder press； 3. Distance to the surface of pressed coffee powder should be about 3mm away from the edge of the filter cup (important indicator).
-
Page 13: Making Hot Water
C. MAKE CAPPUCCINO 1. Prepare espresso first with a large enough cup according to part “B； 2. Use whole, fresh cold milk out of the fridge(4-8℃), and pour 1/3 milk in cup; Note: Use a stainless steel cup, and cup diameter should not less than 70 ± 5mm, due to the volume of milk will increase after frothing. -
Page 14: Clean And Maintenance
immediately: (steam pipe will have a delay of 8 seconds of steam cooling phenomenon) it is recommended to press the single/Double Cup button to cool down for 3 seconds before making hot water. E. HEATING LIQUID (Steam function) 1. Use a stainless steel cup, pour cold liquid to 1/2 cup; Note: Cup diameter should not less than 70 ±... - Page 15 and citric acid ratio is 100:3); 3. Lock the filter holder (no coffee powder) into the group head. According to part “B” MAKE ESPRESSO COFFEE; 4. Touch coffee button, make about 150ml coffee(or Make 3 cups of coffee) .then touch Steam warm-up switch, it starts preheating , open steam knob after steam indicator always lights on, release steam about 2min and turn off the knob, then make descales deposit in the machine at least 15min;...
-
Page 16: Troulbe Shooting
Steam pre heating Lights on finished Fash ing Making steam Lights on Steam finished Please contact Temperature sensor with authorized Lights off short circuit or open service facility for circuit repairing. water lack of water Display“ ” tank Turn off Please contact Lights off Thermal fuse open... - Page 17 holder Implementation of the above Please contact with the operation problems still exist authorized service Coffee coffee powder is too fine, With thicker coffee powder comes out and clogged filter too slow or Filter holes are blocked Brush / clean the filter no coffee Water tank is not inserted Insert the water tank in place...
- Page 18 This form is compiled in accordance with the provisions of SJ/T 11364. ○： Indicates that the content of the hazardous substance in all homogeneous materials of the part is within the limit requirement of GB/T 26572. ×： It means that the content of the hazardous substance in at least one of the homogeneous materials of the part exceeds the limit requirement of GB/T 26572.
