Summary of Contents for LINKVIL W710H

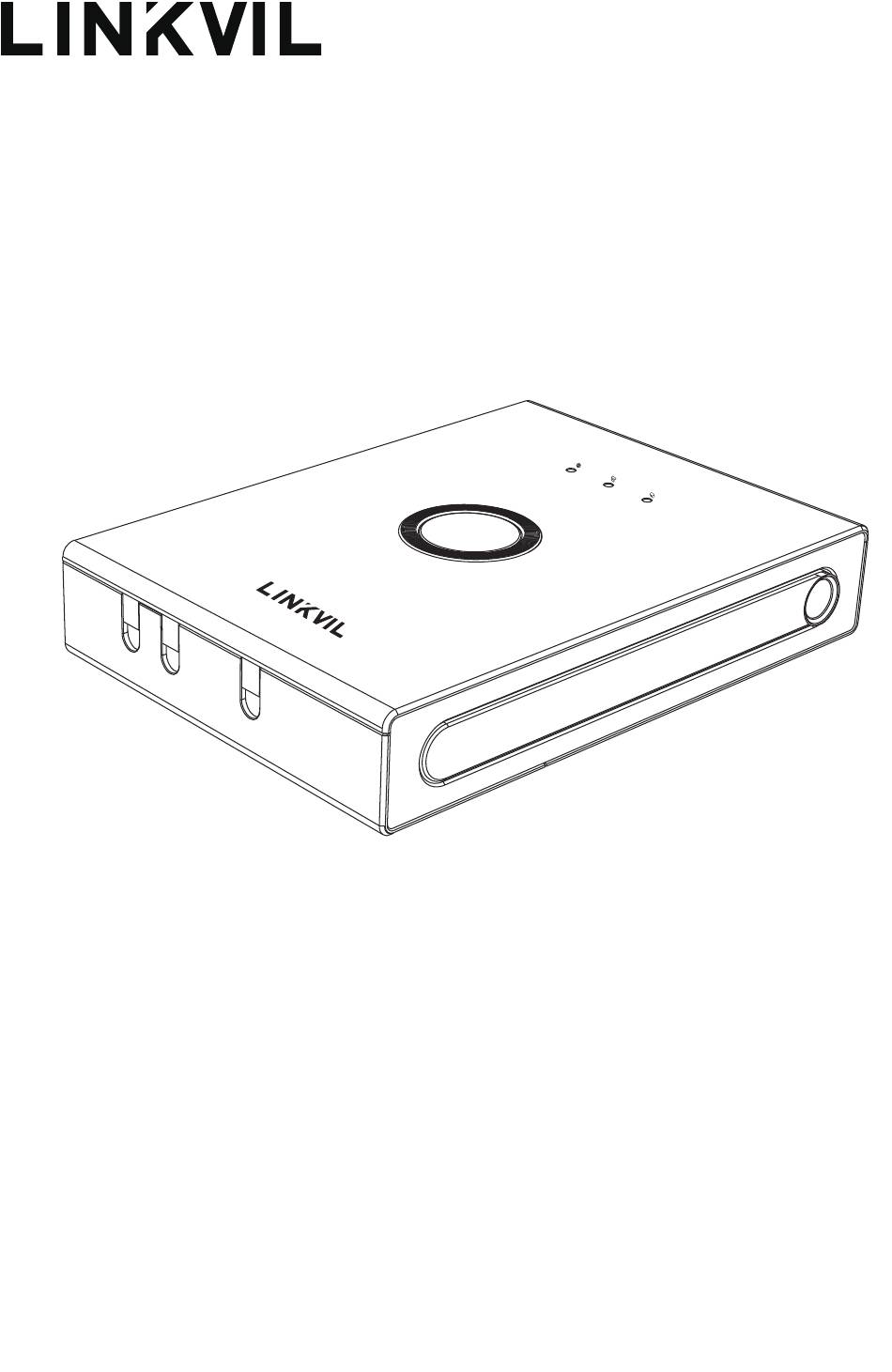

- Page 1 V1.0 W710H Quick Installation Guide...
- Page 2 Packaging list PA3*8mm Screw*1 PA4*30mm Screw*2 Screw Fixing Seat*2 Base station Quick Installation Guide Power Adapter(optional) Panel IPCT LED WAN LED ROLE LED Reset Key...
-
Page 3: Status Indicator
Status indicator Lights Description Function indicator Indicates On: Successfully Off：No Flash: Network the WAN connected to the anomalies such network connection network cable as IP conflict or status failure to obtain inserted WAN LED Indicates On: Device works Flash: Device the device role as Manager works as... -
Page 4: Device Connection
Device connection Step 1: Prepare before installation 1. Voltage check Check whether the voltage of DC power supply or external power supply is within the working range of this product (5V/1A). 2. Adjust the antenna (Figure 1) Press the heads of the antennas at both ends of the device (marked with red lines) with slightly, the antennas will automatically pop out, and then rotate the two antennas clockwise to the desired angle (the maximum rotatable angle is 190°). - Page 5 Step 3: Wall mounting 1. Close the back cover of the device after plugging in the cable, and punch the PA3*8mm Screw into the hole in the back cover (Figure 3) Figure 3 2. Wall mounting can be achieved by hanging the equipment on a screw suitable for the size and distance of the two holes above and below the back shell Obtaining the IP address...
-
Page 6: Multi-Cell System
Set Country/Region Navigate to the Manager webpage > Network > Connection Settings, Select the Country/Region where the device is located, then Apply. Note that the IPCT System can only work when the Country/Region are correct. Single-Cell System Enable Manager mode 1. -
Page 7: Device Management
Device management Once the terminal successfully connects to the Manager/ Base, administrators can perform information management and operations on the terminal in the"W710H-Manager" >> "Handset" page, including: 1. View terminal information Administrators can view the terminal's Online Status,MAC Address, Extension, SIP account, Name, Model, Software Version, and the current connected Base. -
Page 8: Factory Data Reset
2. Adding SIP Account: 2.1 Manually Adding a Single SIP Account: Access the Manager webpage > SIP Account > SIP Account, click Add button to add a SIP Account. Manually set the information for the SIP account, such as SIP Account Name, Server Name, User Number, Authentication User, Authentication Password and etc.,which provided by the SIP server administrator.
