Summary of Contents for Matrix Light ALL LIGHT5

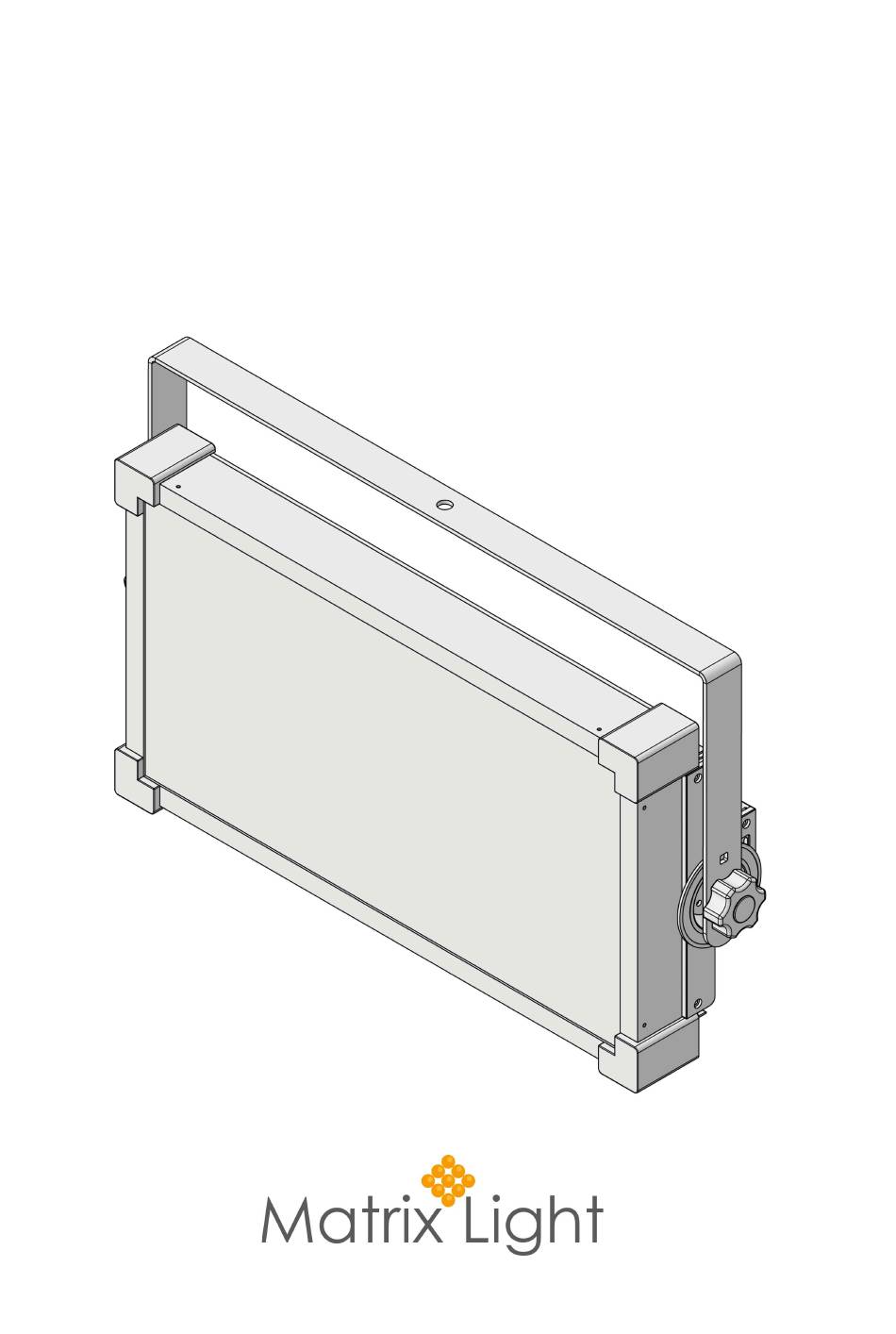

- Page 1 ALL LIGHT5 User Manual...
-
Page 2: Table Of Contents
04. PACKAGE CONTENTS ································································································· 6 ALL LIGHT5 FEATURES 01. LED LIGHT ····················································································································· 7 INSTALLING & OPERATION 01. ALL LIGHT5 INSTALLATION & USE ········································································ 8 02. CONTROL MENU ········································································································· 8 03. DMX MENU LAYOUT ································································································· 9 TROUBLESHOOTING 01. TROUBLESHOOTING CHECKLIST ·············································································· 9 ADDITIONAL INFORMATION 01. -
Page 3: About Product
◉ Please consult the ‘troubleshooting checklist’ before contacting Matrix Light for repair service. ◉ Matrix Light will charge a service fee for repair requests for a non-defective product. ◉ Matrix Light is not responsible for any injury or damage to property caused as a result of violating instructions in this manual. -
Page 4: Safety And Warnings
Overheating and fire hazards Do not operate the ALL LIGHT5 if the ambient temperature exceeds 45°C. Extended operation of the ALL LIGHT5 may result in hot surfaces (up to 80°C). Make sure that the product is sufficiently cooled before handling. - Page 5 The ALL LIGHT5 may cause injury or damage to objects when it falls onto safety cables due to its horizontal length (450mm). Matrix Light recommends installing 1 safety cable onto each fixing device.
- Page 6 Do not point an operating ALL LIGHT5 at the driver of a moving vehicle. Risk of accidents. Do not cover the sides and air vents of the ALL LIGHT5 while it is operating. Doing so may shorten the lifespan of internal components and cause fires.
-
Page 7: Package Contents
Do not clean the ALL LIGHT5 with benzene and paint thinners. Doing so may cause deformation and discoloration. Do not handle or operate the ALL LIGHT5 with wet hands. Risk of electric shock and damage to product. Store in a cool, ventilated area after use. -
Page 8: All Light5 Features
01. ALL LIGHT5 INSTALLATION & USE ••• AC power Matrix Light ALL LIGHT5 operates on AC power (AC 220V, 50/60 Hz). Ensure that the ALL LIGHT5 is disconnected from DMX controllers before connecting to an AC power source. Do not stare directly at the ALL LIGHT5 when powering on. -
Page 9: Dmx Menu Layout
Matrix Light All Light5 02. CONTROL INTERFACE ••• The control options of the Matrix Light ALL LIGHT5 are as follows: Button Options Dimming Up Dimming Down Color Temp. Up Color Temp. Down Menu Selection Button Input Menu Option 1&2 CCT Mode 3&4... -
Page 10: Troubleshooting
● Product damages caused by natural disasters or user negligence are not covered by warranty. ● To claim warranty, please send the defective product and purchase receipt to the Matrix Light head office or authorized dealer, or visit the Matrix Light service center in person. -
Page 11: Product Specifications
03. PRODUCT SPECIFICATIONS ••• Lamp Head Optical System Soft Diffusion Panel Light Aperture ALL LIGHT5: 410 x 210 mm / 16.1 x 8.3“ Beam Angle 115º (Half Peak Angle) 4.7kg/10.4lbs Weight Handling Steel Yoke, High Strength Tilt Lock, Pole Operation Option (Pan & Tilt) Mounting 16 mm / 28 mm Combo Pin (Baby 5/8”... -
Page 12: Product Dimension
Matrix Light All Light5 Product Dimension ALL LIGHT5 04. AFTER SALES SERVICE ••• ● Please visit www.matrixlight.com or call 010-7232-2888 for after sales service inquiries in South Korea. ● Please visit www.matrixlight.com or email csmatrixlight@gmail.com for international after sales service inquiries.
