360STA Rhardware Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 360STAR and is the answer not in the manual?

Questions and answers

Related Manuals for Teche 360STAR

Summary of Contents for Teche 360STAR

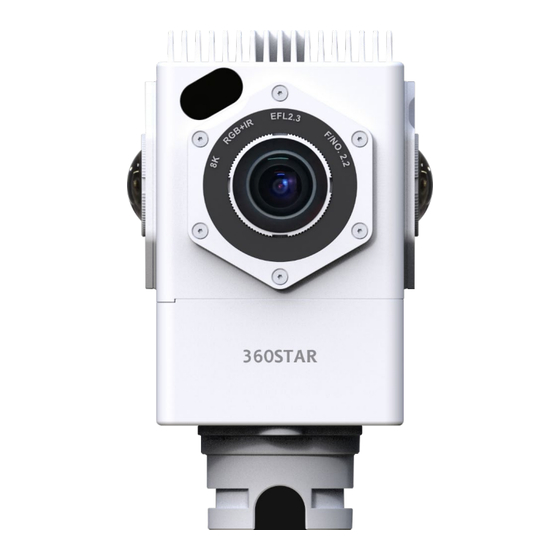

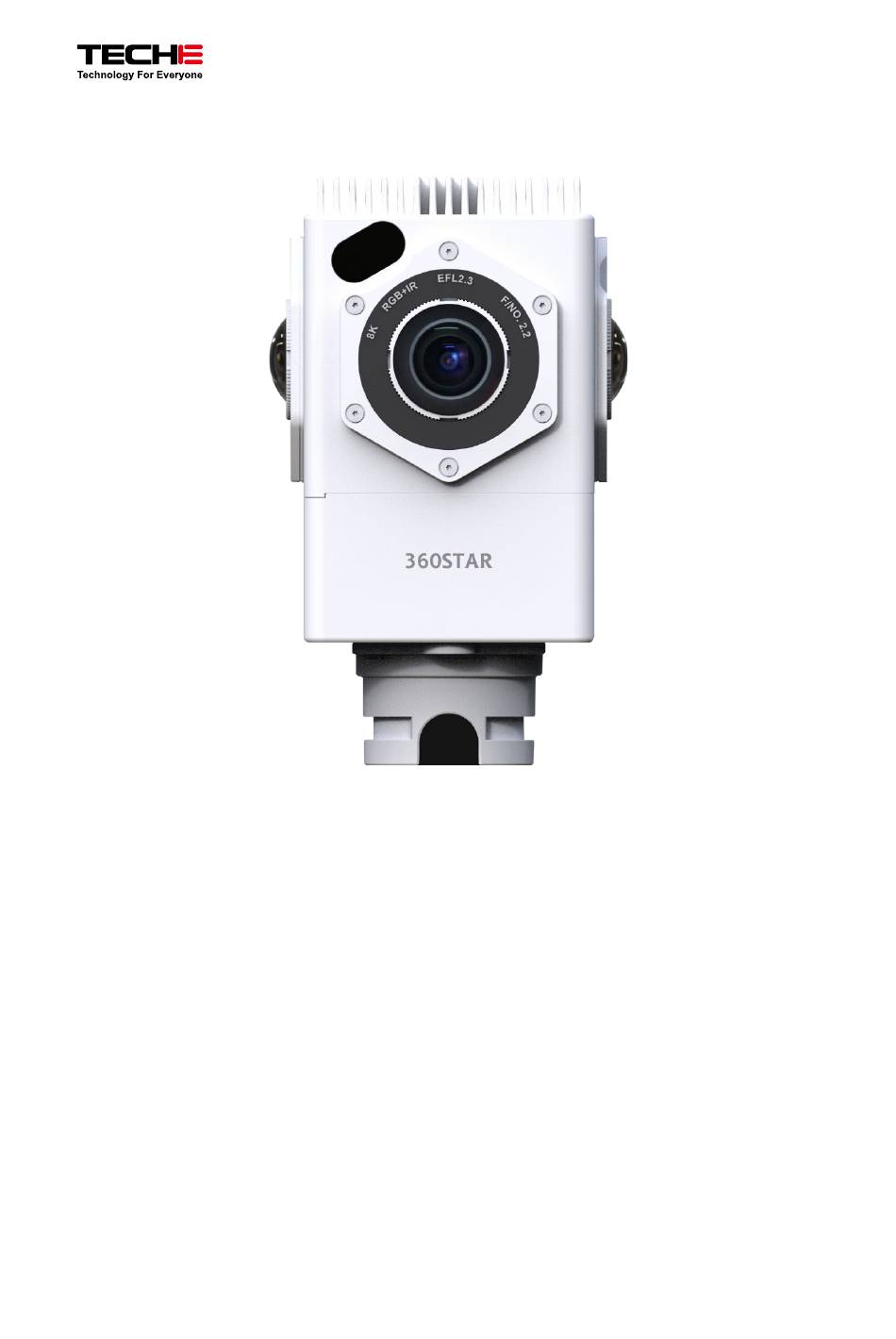

  • Page 1 360STA Rhardware Manual...
  • Page 2 Disclaimer Please read this statement carefully. Once you use 360STAR and its related accessories, it is considered that you fully recognize and accept this statement. Before each use, please carefully inspect the camera and its related accessories. If any damage or deformation is found, do not use it and contact our after-sales service personnel in time.

  • Page 3: Table Of Contents

    Contents 1. Camera Parts Introduction 2. Camera Specifications and Parameters 3. Accessory Installation 4. Camera Usage Introduction 4.1. Camera Interface （1）External Microphone (MIC) Jack （2）Power Cable Interface （3）Ethernet Cable Interface 4.2. Powering On or Off the Camera 4.3. Camera Main View 4.4.

  • Page 4: Camera Parts Introduction

    （Used for cooling the fill light, increasing the heat dissipation area） Lens Logo Indicator Light Main View Angle Identifier Mic Sound Collection Hole Infrared Fill Light 2. Camera Specifications and Parameters Camera Model EF2380 Camera Name 360STAR Lens 4*F2.2 Fisheye Lens Weight Approximately 1 kg...
  • Page 5 Dimensions 125*75*75mm Material Aerospace-grade Aluminum Alloy Protection IP67 Rating Operating Temperature -20 - 45℃ and Humidity sensor 1/1.8 exposure Automatic/Manual Focal Length 2.3mm Field of View 190° Wifi Standard 802.11ac Frequency 5.765Ghz Range Channel 40Mhz Bandwidth Effective Transmission Distance Power Interface Power Supply 12.6V/4A POE+...
  • Page 6 Power Consumption Battery and No Built-in Battery Endurance Interface Standard Power Interface / External MIC Interface / RJ45 1000M Ethernet Port Storage Medium TF Memory Card Storage Space 32GB emmc Built-in Mic Infrared Fill Light Five Low Light Support 3D Noise Support Reduction Video Image Size...

  • Page 7: Accessory Installation

    Audio Sampling Rate Live Streaming RTMP/RTSP/RTMPS/GB28181 Protocol H265,H264 Encoding Live Streaming Maximum Bitrate Inside the Device 45Mbps Support 7680*3840@20FPS 3．Accessory Installation English 1/4-20 Threaded Hole for Extension Pole Three-in-one Interface Cable (The tail cable is integrated with the camera and cannot be pulled out or subjected to tensile force) Secure the camera to the mounting bracket and the anti-fall wire rope...

  • Page 8: 2）Power Cable Interface

    operation (the connection device is shown in the figure below). （2）Power Cable Interface: It is an external power supply interface, equipped with a standard power charger (please do not use other charging devices to power the camera). （3）Ethernet Port: Used to provide network access to the camera, simply insert the standard blue Ethernet cable.

  • Page 9: Camera Main View

    360STAR logo on the camera body. 4.4. Camera Operation （1）Live Streaming Mode: The camera switches to the push-stream mode for live streaming. For specific usage methods, please refer to the TECHE Center user guide. （2）Stop Live Streaming: Press the capture button to stop the push stream, or you can achieve this through the built-in software program.

  • Page 10: Camera Wi-Fi Setup

    4.6. Camera Wi-Fi Setup （1） Turn on the mobile phone or PC network and search for the network named "360star". （2）Enter the network password, which is "teche720". （3）Once the AP is set up successfully, you can connect to the camera.
  • Page 11 4.7. Matching Software and Camera Connection The camera is connected to the network via an Ethernet port or Wi-Fi, ensuring that the camera is on the same network as the mobile phone or PC. Open the software, and the camera will be automatically detected on the software.

  • Page 12: Contact Information

    This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body Contact Information Shenyang Teche Technology Co., Ltd. After-sales Support：13252879046 Email: support@te720.com Official Website: https://www.teche720.com Address: Room 2302, Changfeng Building, No.

This manual is also suitable for:

Ef2380
