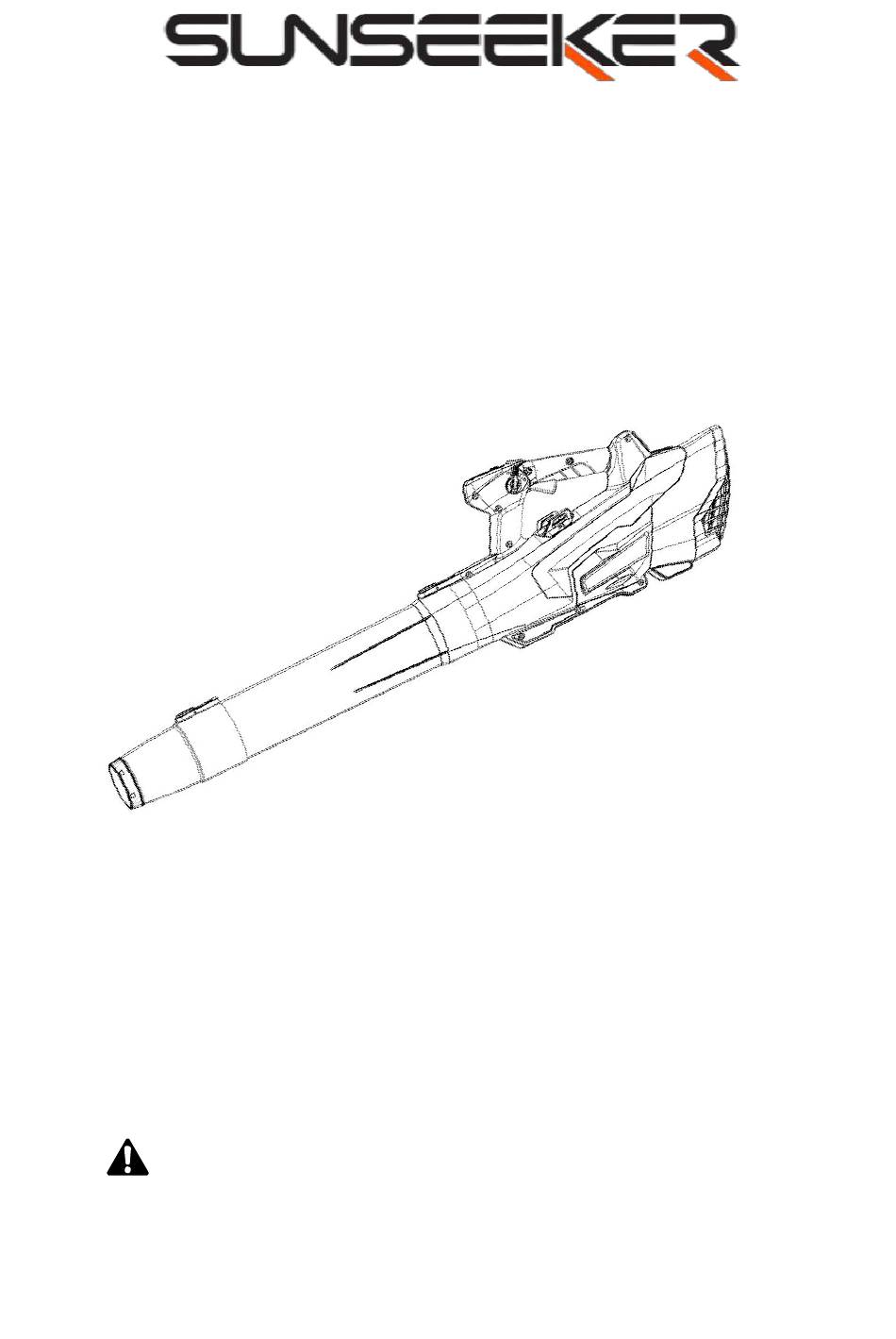

OPERATOR'S MANUAL
60V Lithium-Ion Cordless Commercial Series
Handheld Blower
Model number:
CBL7614
Battery and Charger Sold Separately
WARNING: To reduce the risk of injury, the user must
read and understand the Operator's Manual before using this
product. Save these instructions for future reference.
Advertisement
Table of Contents
Related Manuals for SUNSEEKER CBL7614
Summary of Contents for SUNSEEKER CBL7614
- Page 1 OPERATOR’S MANUAL 60V Lithium-Ion Cordless Commercial Series Handheld Blower Model number: CBL7614 Battery and Charger Sold Separately WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference.
-
Page 2: Safety Symbols
READ ALL INSTRUCTIONS! READ & UNDERSTAND OPERATOR'S MANUAL WARNING: Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: Your risk from these exposures varies, depending on how often you do this type of work. -
Page 3: Safety Instructions
WARNING: The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full-face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. - Page 4 Do not expose Do not expose to rain. to rain Keep other people out of working area during operation. Safe distance The distance between the machine and bystanders should be at least 15 meters. Take the replaceable battery from the appliance before any extension, cleaning and servicing works Volt Voltage...
-
Page 5: Work Area Safety
WORK AREA SAFETY Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Page 6 If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. Do not let familiarity gained from frequent use of tools allow you to become ...
- Page 7 performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces may lead to unsafe handling and/or loss of control of the tool.
- Page 8 Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. ...
-
Page 9: Important Safety Instructions
Walk, never run. Stop the machine and remove the battery. Make sure that all moving parts have come to a complete stop, whenever the machine is left by the user before clearing a blockage before checking, cleaning or working on the machine after striking a foreign object to inspect the machine for damage If the machine starts to vibrate abnormally,inspect for damage replace or repair any ... -
Page 10: Specifications
If you lend this tool to someone else, also lend these instructions to them to prevent misuse of the product and possible injury. SAVE THESE INSTRUCTIONS! SPECIFICATIONS Model number CBL7614 Motor Power 1900W (max) Voltage Max Air speed... - Page 11 Fig. 1 1. Nozzle 7. Trigger 2. Nozzle release button 8. Carrying ring 3. Blower tube 9. Carry handle 4. MCDC 10. Air inlet 5. Turbo button 11. Battery socket 6. Cruise control lever Nozzle Directs and concentrates the airstream. Blower Tube Directs the airstream.
-
Page 12: Battery Socket
The trigger is for variable speed , on and off control of the blower Carry Handle For operating, controlling and carrying the blower. Carrying Ring For attaching carrying system. Turbo button Amply the air velocity to the maximum BATTERY SOCKET Directly insert the battery package. - Page 13 Inspect the tool carefully to make sure that no breakage or damage occurred during shipping. Do not discard the packing material until you have carefully inspected and satisfactorily operated the tool. If any part is damaged or missing, please return the product to the place of purchase. ...
-
Page 14: Operation
OPERATION WARNING: Make sure the blower tube is in position before operation WARNING: Always wear eye protection that is marked to comply with ANSI Z87.1. or EN 166. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries. - Page 15 and charger listed above on Battery Tool Use and Care section. The battery is not included in the packing ,both being sold separately. To Connect and disconnect with the Battery Align the battery plug with the tool 's electric socket, then insert the plug into the tool (Fig 6). When removing the cable plug, grip the cable plug with your hands, then pull the plug out of the socket (Fig 7).
-
Page 16: Starting/Stopping The Blower
protection. If they are approached, stop the motor immediately. ► Hold and control the blower with one hand on the carry handle - wrap your thumb around the handle (Fig 8). Fig 8 Fig 8 STARTING/STOPPING THE BLOWER To Start Press the power button “... - Page 17 Cruise control lever Trigger Power button Turbo button Fig 9 Fig 10 SWITCHING OFF THE BLOWER Release the trigger Press the power button on MCDU to shut down the tool to avoid accidental starting. WARNING: Always remove the battery from the tool during work breaks and after finishing work. WARNING: Never use water for cleaning your blower.
-
Page 18: Maintenance
All service, other than the items listed in these maintenance instructions, should be performed by an authorized dealer/distributor. MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use a clean cloth to remove dirt, dust, oil, grease, etc. -
Page 19: Troubleshooting
Clean the tool thoroughly before storing. Store the tool indoors, in a dry place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and deicing salts. TROUBLESHOOTING PROBLEM CAUSE SOLUTION The cable plug is not Attach the battery pack to the blower. - Page 20 Error alarm Cause Solution indicator Contact the service point for a professional The controller voltage consultant or repairing. wrongly starting Release the switch,and restart in the right way Over currency Release the switch Low speed Release the switch protection,blade blocked Release the switch,wait the machine The controller temperature protection...
