- Page 1 ASTERSOUN Gemini Made in Italy...

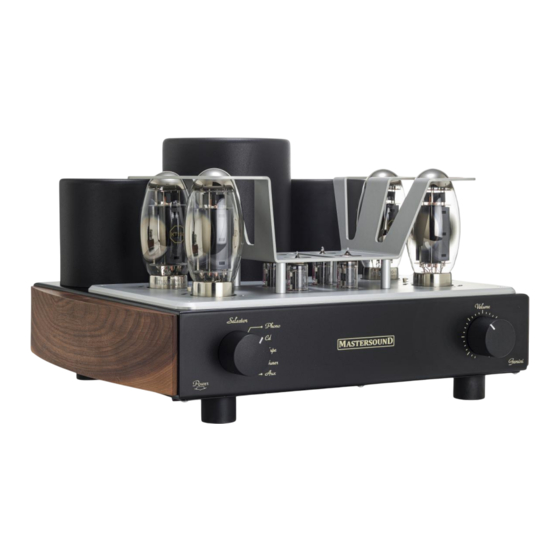

- Page 2 Gemini that is the first push pull amplifier of MastersounD grew from our careful research. Combined with our unique output transformer and powerful, the special tube KT150 work at his best in terms of dynamic and frequency response. We use a...
- Page 3 Inside Gemini Almost all the circuits and components used on like the capacitors and PCB board are result of a strict selection and are manufactured on MastersounD specifications. Gemini We built the with the utmost care an it passed the stricter quality tests with excellent results and is now ready to offer You many years of pleasant listening.
-
Page 4: Rear View
Rear view 1. The bias control input. 2. Holder containing a plug with incorporated fuse. 3. Six speakers connectors: two with black rings and four with red rings (8-4 ohms). 4. Eight RCA connectors for the inputs line & phono MM input (for turntable) and two XLR connectors for an additional line input. - Page 5 A red led start flashing lights when You switch ON the amplifier, indicating the correct functioning. When the inner tensions have reached the correct level, the red led light remains Gemini on, the is ready to work. Only after the amplifier be pre-heated for at least twenty minutes, it will reach the ideal temperature to get the best results in listening.
- Page 6 Last recommendations Never remove or insert the AC plug when the unit is ON. Any change of interconnectors (cables, etc...) must be done with the amplifier switched in the OFF position. Never move or remove the amplifier when tubes are still hot. Never install or remove tubes when the amplifier is still switched in the on position.
-
Page 7: Specifications
Input sensitivity 1 Volt Input impedance 50 K Ohm Load impedance 4 - 8 Ohm Output transformers MastersounD Negative feedback “non-existent” 0 db Frequency 12 Hz / 38 Khz – 0 db Volume with remote control ... -
Page 8: Warranty
Warranty Gemini Your , except the tubes, comes with a five years limited warranty covering defects in material and craftsmanship. During the warranty period, repairs are provided free of charge. Transportation costs and from the repair provider has to be paid by the owner.
