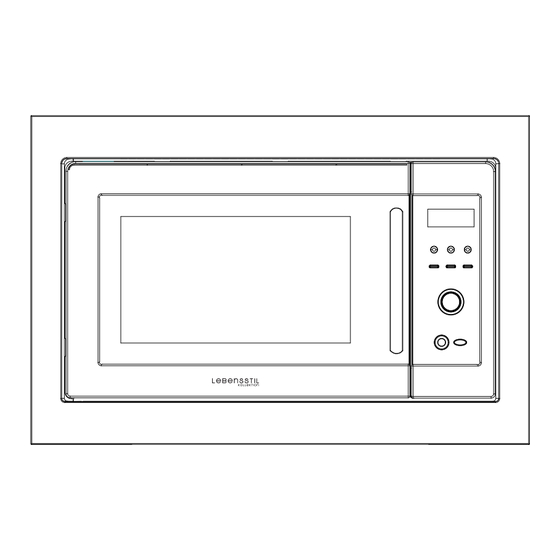

- Page 1 Instruction Manual Built in Microwave Oven MODEL:LKMW-2503WD Before operating this unit,please read these instructions completely.
-
Page 2: Important Safety Instructions
IMPORTANT NOTICE:THIS PRODUCT MUST NOT BE LEFT UNATTENDED WHILE IT IS CONNECTED WHILE IT IS CONNECTED. WHEN USING ELECTRICAL APPLIANCE BASIC SAFETY PRECAUTIONS SHOULD BE FOLLOWED, INCLUDING THE FOLLOWING: WAR NING: TO REDUCE THE RISK OF BURNS, ELECTRIC SHOCK, FIRE, INJURY TO PERSONS OR EXPOSURE TO EXCESSIVE MICROWAVE ENERGY: 1. - Page 3 17. THIS PRODUCT IS A GROUP 2 CLASS B ISM EQUIPMENT. THE DEFINITION OF GROUP 2 WHICH CONTAINS ALL ISM (INDUSTRIAL, SCIENTIFIC AND MEDICAL) EQUIPMENT IN WHICH RADIO-FREQUENCY ENERGY IS INTENTIONALLY GENERATED AND/OR USED IN THE FORM OF ELECTROMAGNETIC RADIATION FOR THE TREATMENT OF MATERIAL, AND SPARK EROSION EQUIPMENT.
-
Page 4: Before You Call For Service
SPECIFICATIONS 25L Power consumption 220-240V~50Hz,1400W Output 900W Grill Heater 1200W Operating Frequency 2,450MHz Product Dimensions 592mm(W) X 400mm(D) X 390mm(H) Oven Cavity Dimensions : 330mm(W) X 330mm(D) X 212mm(H) Uncrated Weight Approx. 17.5kg BEFORE YOU CALL FOR SERVICE 1. If the oven will not perform at all, the display does not appear or the display disappears : a) Check to ensure that the oven is plugged in securely. -
Page 5: Installation
INSTALLATION 1. Make sure all the packing materials are removed from the inside of the door. 2. Inspect the oven after unpacking for any visual damage such as: Misaligned Door Damaged Door Dents or Holes in Door Window and Screen Dents in Cavity If any of the above are visible, DO NOT use the oven. -
Page 6: Feature Diagram
6. Do not insert any object into the openings on the outer case. 7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc. 8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven. 9. -
Page 7: Control Panel
CONTROL PANEL (1) Display Window (2) Grill (3) Micro (4) Combination (5) Memory (6) Auto defrost (7) Auto menu (8) Time setting / Weight (10) Pause / Cancel (9) Start... - Page 8 etc. b) Press the button "Start", the microwave oven will work on 100% power for 1 minutes. a) Rotate the knob "Time setting . Weight" to untill "5:00" displayed. b) Press "Start". b) Rotate the knob "Time setting . Weight" to untill "10:00" displayed. c) Press "Start".
- Page 9 Weight Menu Touching Times Auto Reheat Vegetable Noodles Fish Chicken Beef 5. Grill This function has two patterns, you may press "grill" to select as follows: (the longest cooking time is 60 minutes). Pattern 1: 85% grill power, display G-1 Pattern 2: 50% grill power, display G-2 Example: Cooking food with grill for 20 minutes A) Press "Grill"...
-
Page 10: Care Of Your Microwave Oven
Example: Cooking food using option 2 for 15 minutes. a) Press "Combi" and select "C-2" b) Set cooking time for "15:00" by rotating the knob "Time setting . Weight" . c) Press "Start" 7. Memory cooking function: This function can memorize some useful cooking programes to avoid reseting time and power operation. a) If no memory has been set press "memory"... -
Page 11: Schematic Diagram
SCHEMATIC DIAGRAM ( DOOR OPENED,COOK OFF CONDITION) NOISE FILTER TRANSFORMER MAGNETRON N E L P( OUT) H( OUT) R4-2 T( IN) R4-1 D_ SW CONTROLLER L: LAMP SWA: PRIMARY INTERLOCK SWITCH SWB: SECONDARY INTERLOCK SWITCH FM: FAN MOTOR TM: TURNTABLE MOTOR SWC: THE MONITOR INTERLOCK SWITCH H: HEATER *CIRCUIT SUBJECT TO CHANGE WITHOUT NOTICE... - Page 15 DISTRIBUTED BY: Kollektion Distribution Sdn.Bhd. (596854-A) Lot 11B,Jalan 223,Section 51A, 46100 Petaling Jaya, Selangor Darul Ehsan,Malaysia. Tel:+603-7954 5200 Fax:+603-7954 5705 www.kollektion.com.my...
