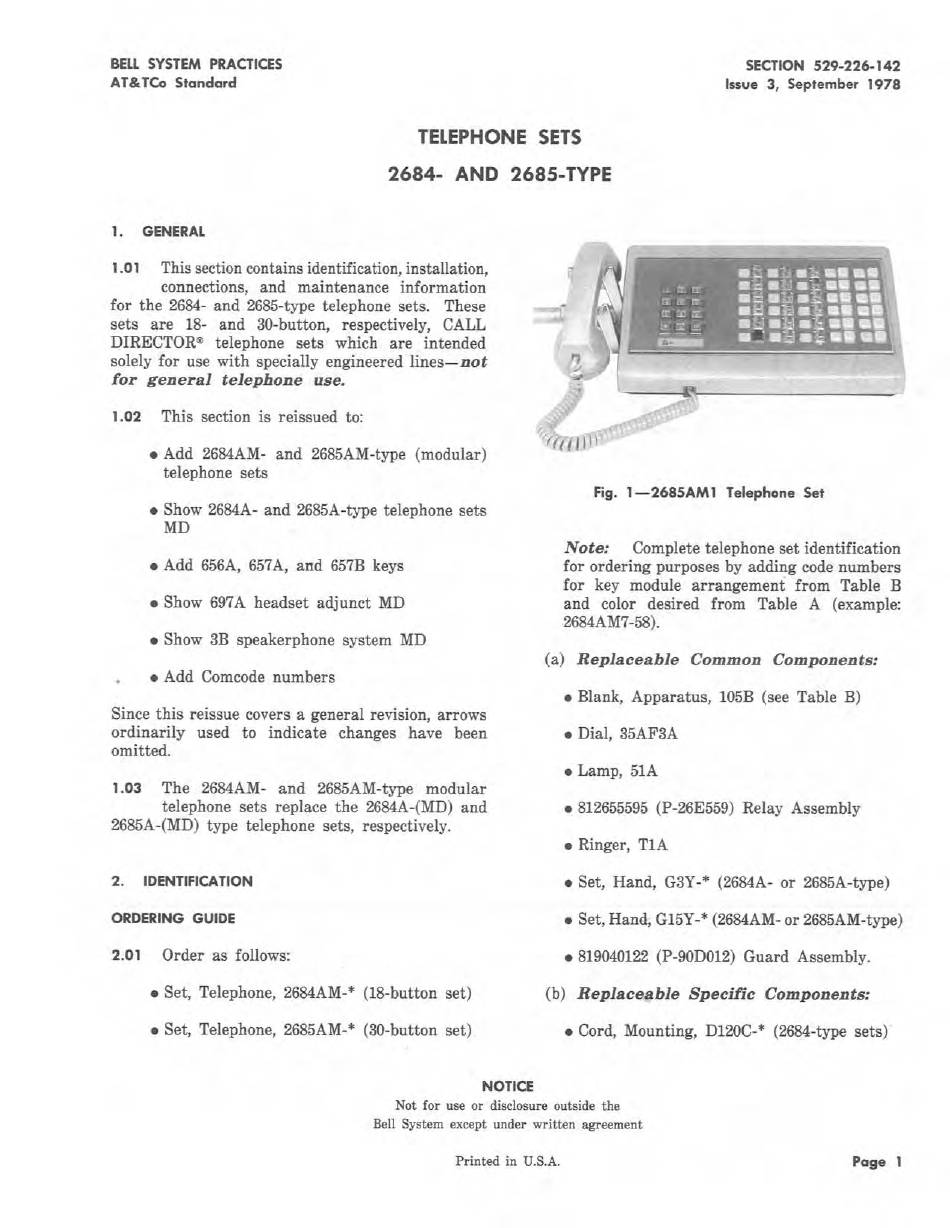

BELL SYSTEM PRACTICES
AT & TCo Standard
SECTION 529-226-142
Issue 3, September 1978
TELEPHONE SETS
2684- AND 2685-TYPE
1. GENERAL
1.01
This section contains identification, installation,
connections, and maintenance information
for the 2684- and 2685-type telephone sets. These
sets are 18- and 30-button, respectively, CALL
DIRECTOR® telephone sets which are intended
solely for use with specially engineered lines-not
for general telephone use.
1.02
This section is reissued to:
• Add 2684AM- and 2685AM-type (modular)
telephone sets
• Show 2684A- and 2685A-type telephone sets
MD
• Add 656A, 657 A, and 657B keys
• Show 697A headset adjunct MD
• Show 3B speakerphone system MD
• Add Comcode numbers
Since this reissue covers a general revision, arrows
ordinarily used to indicate changes have been
omitted.
1.03
The 2684AM- and 2685AM-type modular
telephone sets replace the 2684A-(MD) and
2685A-(MD) type telephone sets, respectively.
2. IDENTIFICATION
ORDERING GUIDE
2.01
Order as follows:
• Set, Telephone, 2684AM-* (18-button set)
• Set, Telephone, 2685AM-* (30-button set)
NOTICE

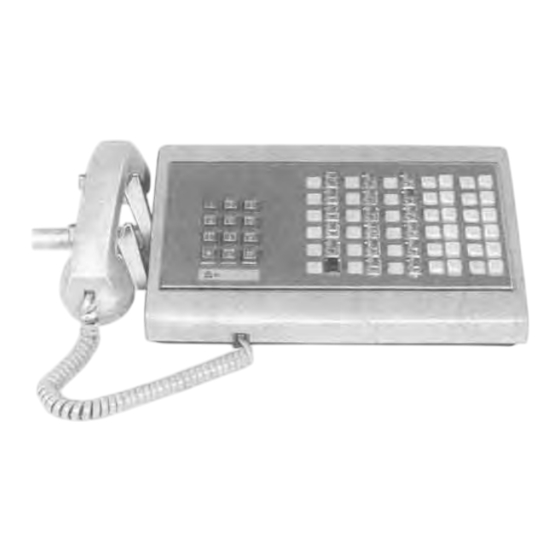

Fig. 1-2685AM1 Telephone Set
Note: Complete telephone set identification
for ordering purposes by adding code numbers
for key module arrangement from Table
B
and color desired from Table A (example:
2684AM7-58).
(a) Replaceable Common Components:
• Blank, Apparatus, 105B (see Table B)
• Dial, 35AF3A
• Lamp , 51A
• 812655595 (P-26E559) Relay Assembly
• Ringer, TIA
• Set, Hand, G3Y-* (2684A- or 2685A-type)
• Set, Hand, G15Y-* (2684AM-or 2685AM-type)
• 819040122 (P-90D012) Guard Assembly.
(b) Replaceable Specific Components:
• Cord, Mounting, D120C-* (2684-type sets)
