Amplifier
http://www.farnell.com
http://www.newark.com
http://www.cpc.co.uk

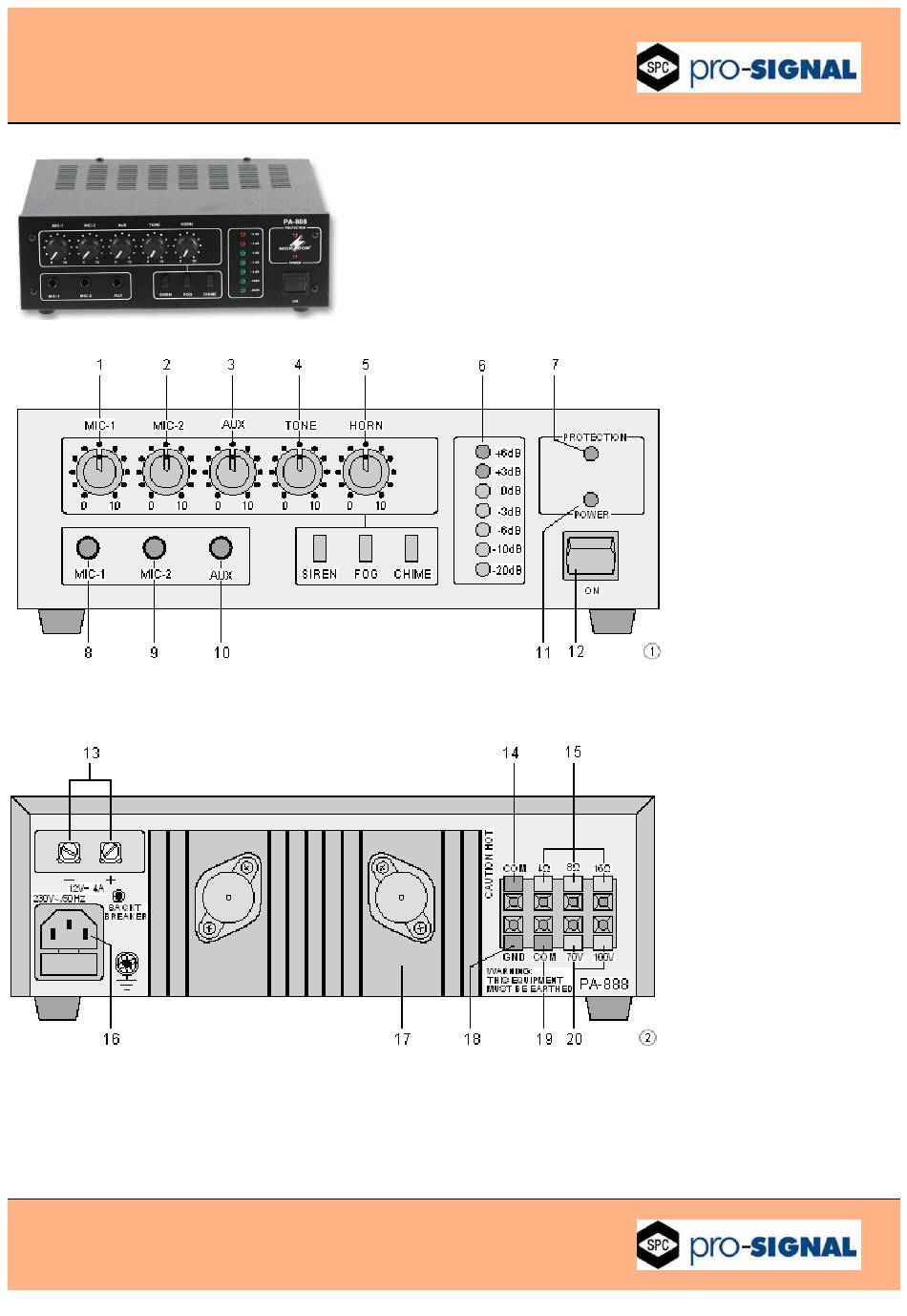

Page 1
1: MIC-1
2: MIC-2
3: AUX
4: Tone control
5: Horn control
6: 7-way LED row
7: LED protection
8: MIC-1
9: MIC-2
10: AUX jack
11: LED power
12: Power button switch
13: 12V
14: COM
15: 4Ω/8Ω/16Ω
16: Mains Jack
17: Heat sink
18: GND
19: COM
20: Speaker connection, 70/100V
05/05/09 V1.0
Advertisement
Summary of Contents for SRC pro-signal DP26036
- Page 1 Amplifier 1: MIC-1 2: MIC-2 3: AUX 4: Tone control 5: Horn control 6: 7-way LED row 7: LED protection 8: MIC-1 9: MIC-2 10: AUX jack 11: LED power 12: Power button switch 13: 12V 14: COM 15: 4Ω/8Ω/16Ω 16: Mains Jack 17: Heat sink 18: GND...
- Page 2 Amplifier Specifications: Output power : 45W , 100W : <2% (70W). Output impedance : 4/8/16Ω, 70/100V. Inputs : 2 x Mic : 2.8mV/10kΩ. 1 x Aux : 40mV/47kΩ. Frequency range : 40 to 20,000Hz. Tone control : -15dB/5kHz. Power supply : 230V ac/50Hz/150 VA or 12V = /ca.
- Page 3 Amplifier Important for U. K. Customers! The wires in this mains lead are coloured in accordance with the following code: green/yellow = earth blue = neutral brown = live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: 1.
