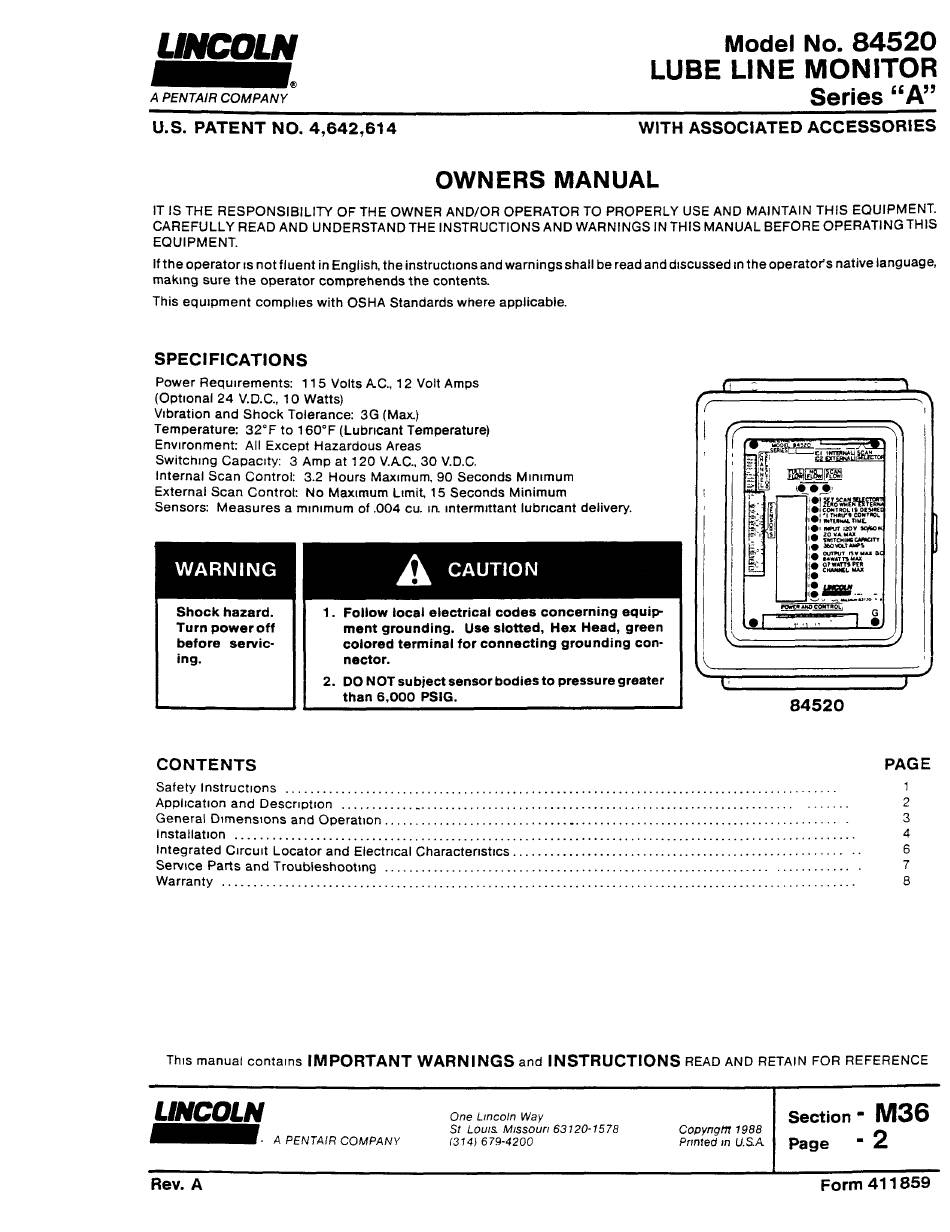

LINCOLN

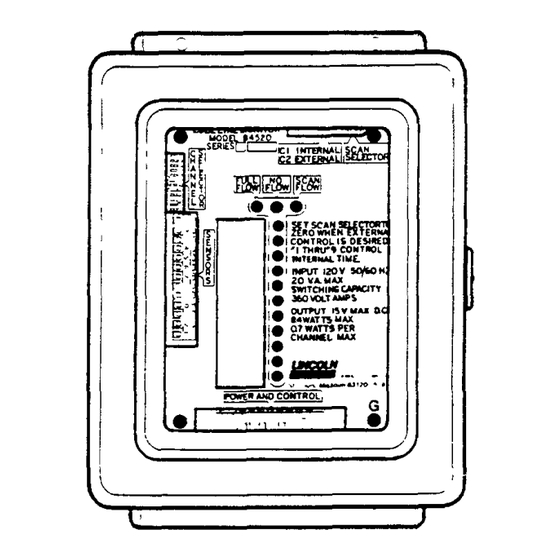

Model No.
84520
LUBE LINE MONITOR
®
A PENTAIR
COMPANY
Series
"A"
U.S. PATENT
NO. 4,642,614
WITH ASSOCIATED
ACCESSORIES
OWNERS
MANUAL
IT IS THE RESPONSIBILITY
OF THE OWNER
AND/OR
OPERATOR
TO PROPERLY
USE AND MAINTAIN
THIS
EQUIPMENT.
CAREFULLY
READ AND UNDERSTAND THE
INSTRUCTIONS AND
WARNINGS
IN THIS MANUAL
BEFORE
OPERATING
THIS
EQUIPMENT.
If the operator
is not fluent in English, the instructions and warnings
shall be read and discussed in the operator's
native
language,
making
sure the operator
comprehends
the contents.
This equipment
complies
with OSHA Standards
where applicable.
SPECIFICATIONS
Power Requirements:
115 Volts AC., 12 Volt Amps
(Optional
24 V. D. C., 10 Watts)
Vibration
and Shock
Tolerance:
3G (Max.)
Temperature
32° F to 160°F
(Lubricant
Temperature)
Environment:
All Except
Hazardous
Areas
Switching
Capacity
3 Amp at 120 V.A.C., 30 V.D.C.
Internal
Scan Control:
3.2 Hours Maximum,
90 Seconds
Minimum
External
Scan Control:
NO
Maximum
Limit, 15 Seconds
Minimum
Sensors
Measures
a minimum
of .004
cu. in.
intermittant
lubricant
delivery.
WARNING
CAUTION
Shock hazard.
Turn power off
before
servic-
ing.
1.
Follow local electrical
codes concerning
equip-
ment grounding.
Use slotted,
Hex Head, green
colored terminal for connecting
grounding
con-
nector.
2. DO NOT subject sensor bodies to pressure greater
than 6,000
PSIG.
CONTENTS
Safety
instructions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..................
PAGE
1
Application
and Description
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
General
Dimensions
and Operation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
Installation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Integrated
Circuit
Locator
and Electrical
Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Service
Parts and Troubleshooting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Warranty
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
This manual
contains
IMPORTANT
WARNINGS
and INSTRUCTIONS
READ AND
RETAIN
FOR REFERENCE
LINCOLN
®
A PENTAIR
COMPANY
One Lincoln
Way
St. Louis
Missouri
63120-1578
(314) 679-4200
Section -
M36
Copyright
1988
Printed in U.S.A.
Page
-2
Rev. A
Form
411859
