Pyle PTEDK86 User Manual

Pyle PTEDK86 User Manual

Electronic drum kit
Hide thumbs

Advertisement

Quick Links

Download this manual
Visit Our Website
SCAN ME
PyleUSA.com
PTEDK86
Electronic Drum Kit
USER GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the PTEDK86 and is the answer not in the manual?

Questions and answers

Related Manuals for Pyle PTEDK86

Summary of Contents for Pyle PTEDK86

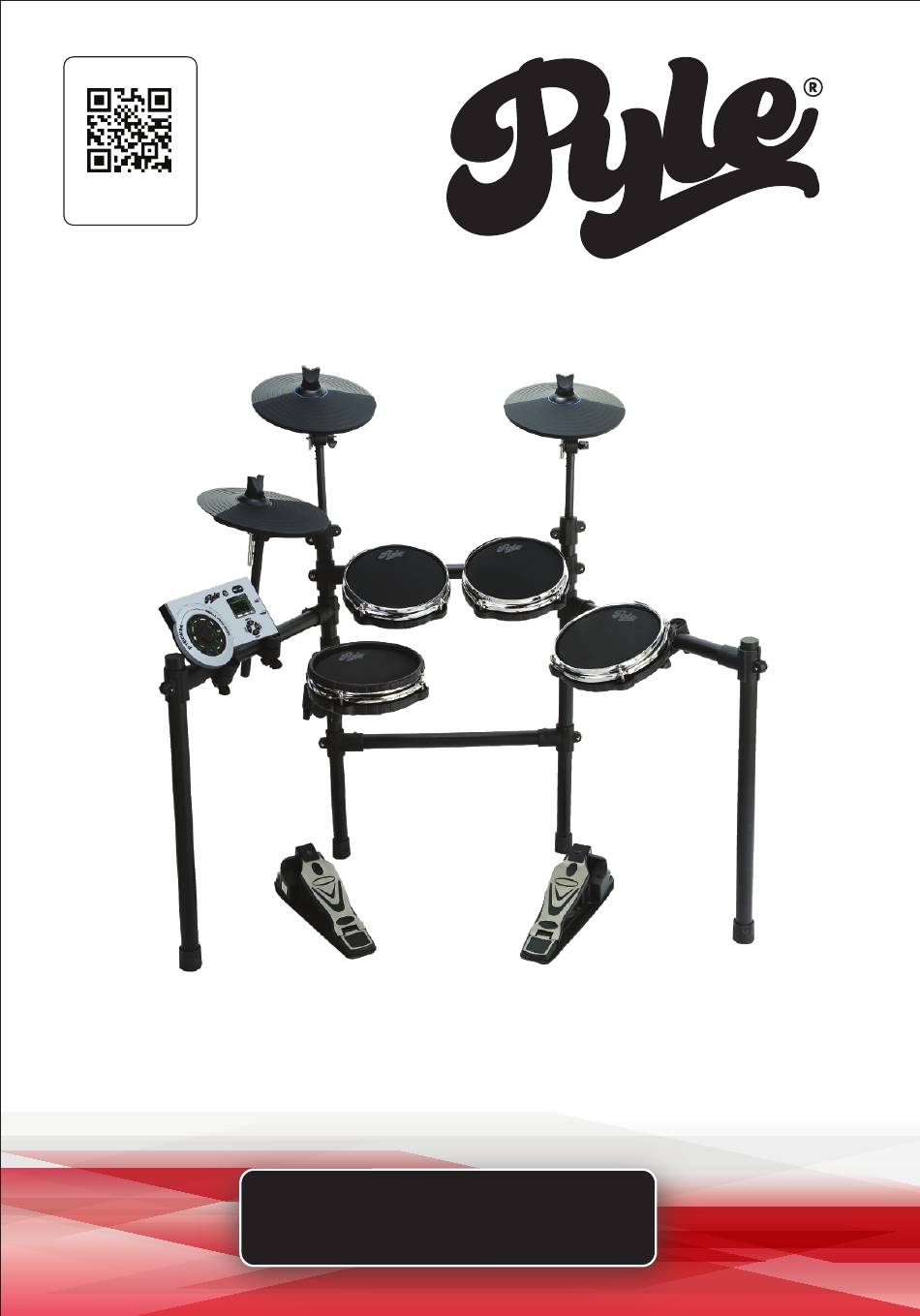

  • Page 1 Visit Our Website SCAN ME PyleUSA.com PTEDK86 Electronic Drum Kit USER GUIDE...

  • Page 2: What's In The Box

    READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE. Features: • Hassle-Free Tabletop Drum Kit • Compact, Portable & Ultra-Thin • Unique Roll-Up Design for Instant Drumming • Pre-Loaded with Selectable Drum Kits & Songs •...

  • Page 3: Fcc Information

    FCC INFORMATION WARNING: Changes or modi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 CONGRATULATIONS! Thank you for purchasing this digital drum set. The drum set has been developed to act and play like a drum set but with greater ease. Before you use the instrument, we recommend you to read through this manual. Location Turn Power OFF When Making Connections...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS FEATURES AND TECHNICAL SPECS ADJUST PAD TRIGGER Adjust trigger sensitivity ASSEMBLY GUIDE Adjust trigger crosstalk eliminate Adjusting pad curve CONNECTION Local control FUNCTION BUTTON DESCRIPTION Adjust Hi-hat sensitivity Front panel Rear panel SELECT TRIGGER Side panel HI-HAT trigger setting CONNECT WITH EXTERNAL DEVICES Kick sensor type Connect to audio system or ampli er...

  • Page 6: Assembly Guide

    ASSEMBLY GUIDE 1. Set up the drum stand. 2. Put the long cymbal tube/short cymbal tube/L shape pad rod into the drum stand. 3. Put the pads/cymbal/module to the relative position. Long cymbal tube Long cymbal tube Short cymbal tube L shape pad rod www.PyleUSA.com...

  • Page 7: Connection

    RIDE CRASH HI-HAT TOM1 TOM2 MODULE TOM3 SNARE HH CONTROL KICK PEDAL CONNECTION Caution! To prevent electric shock and damage to the device, make sure the power is switched OFF on the drum and all related device before making any connection. www.PyleUSA.com...

  • Page 8: Function Button Description

    FUNCTION BUTTON DESCRIPTION FRONT PANEL REAR PANEL www.PyleUSA.com...

  • Page 9: Side Panel

    SIDE PANEL NAME DESCRIPTION SETUP Enter the menu setting interface CANCEL Exit the current operation and return to the previous interface Numeric LED 3-segment numeric LED: content of menu POWER Power switch (press and hold to turn off) Start/stop DEMO SONG playing ┃■...

  • Page 10: Connect With External Devices

    MASTER LEVEL Adjust the master volume Quick access to the KIT home page Enter the voice page VOICE Save current settings SAVE Editor the parameters DATE- Quick access to speed adjustment TEMPO- Editor the parameters DATE+ Quick access to speed adjustment TEMPO+ Stereo headphone output connector PHONE...

  • Page 11: Connect To Headphones

    The output volume can be adjusted via the master volume knob on the instrument or that on the audio device. Connect to headphones The instrument has 1/8" stereo headphone connector, the volume is controlled by the master volume knob on the Drum Kit. www.PyleUSA.com...

  • Page 12: Connect To Mp3 Or Cd Player

    Connect to MP3 or CD player Connect the output of MP3 or CD player or other audio sources with AUX. IN connector. The volume can be adjusted by the master volume control knob on the panel. The input signal can be mixed with the drum signal, strike the pads according to the rhythm of the input signal.

  • Page 13: Connect To Computer Via Midi

    Connect to computer via MIDI MIDI IN: Receive MIDI signals from external MIDI devices or computers MIDI OUT: Sends pads signal to external MIDI device or computer Connect the MIDI keyboard via the MIDI port MIDI-IN/OUT: If external keyboard or MIDI device are used to control the drum, it needs MIDI cable one end connecting with MIDI IN of the Drum Kit, and other end with MIDI OUT of the MIDI keyboard.

  • Page 14: Connect With Power Supply

    Connect with power supply 1. Plug the power adapter into DC IN connector 2. Make sure all drum pads are connected, turn the master volume on the Drum Kit to the minimum, and then press the power button down. At which point the display will light up and enter the drum set menu.

  • Page 15: Basic Operation

    BASIC OPERATION Selecting a drum kit Power ON, numeric LED as shown in the gure 001. The Kit button light is always ON to indicate that the drum kit is currently in the operation interface. Drum sets can be switched between 【DATA+】 and 【DATA-】 . 37 sets of drum kits in all.
  • Page 16 www.PyleUSA.com...

  • Page 17: Hi-Hat Demonstration

    HI-HAT demonstration The Hi-Hat: Sound varies depending on the position of the Hi-Hat pedal Open Hi-Hat: Strike the Hi-Hat pad without pressing the pedal. Half-open Hi-Hat: Strike the Hi-Hat pad with the pedal pressed but not completely down. Close Hi-Hat: Strike the Hi-Hat pad with the pedal pressed completely down. Hi-Hat pedal close: Press the pedal completely down without striking the pad.

  • Page 18: Adjusting Demo Song Accompaniment And Drum Volume

    Adjusting DEMO SONG accompaniment and drum volume Press 【SONG】 to enter SONG setting menu, after entering, press 【PAGE】 to enter accompaniment adjustment menu. And use 【DATE+】  or 【DATE-】  to adjust DEMO SONG accompaniment volume. Press 【PAGE】  again to enter volume adjustment interface, and use 【DATE+】  or 【DATE-】...

  • Page 19: Adjusting Demo Song Tempo

    Adjusting DEMO SONG tempo Press 【TEMPO+】  or 【TEMPO-】 , use 【DATE+】  or 【DATE-】  to adjust DEMO SONG tempo. Note: When no operation returns to the previous interface within 3 seconds after adjusting the speed, pressing other keys will also exit the speed adjustment menu directly.

  • Page 20: Play Back Recording

    Play back recording Press 【PLAY】  then 【PLAY】  LED lights up, and it plays the recorded performance, press 【PLAY】  again to stop playing. If you are unsatis ed with the recorded performance, press 【RECORD】  to record once again. Note: You can record the performance but can not save. This means the recorded performance will replace the former recorded performance.

  • Page 21: Edit And Save Drum Kit Voice

    EDIT AND SAVE DRUM KIT VOICE Edit the voice Press 【VOICE】  to enter VOICE adjustment interface， 【 VOICE】  button light is always on. You can switch by hitting the pad you want to adjust. Press 【DATE+】  or 【DATE-】 to adjust the voice. Voice volume adjustment Press 【PAGE】...

  • Page 22: Voice Sound Eld Adjustment

    Voice sound eld adjustment Press 【PAGE】  to enter voice sound eld adjustment interface, and press 【DATE+】 or 【DATE-】  to adjust the parameter. Note: Sound eld adjustable range: -8-8. The negative sound eld is to the left, 0 is the center position, and the positive value is to the right. Voice sound eld adjustment Press 【PAGE】...

  • Page 23: Midi Channel Setting

    MIDI channel setting Press 【PAGE】  to enter voice MIDI channel setting interface, press 【DATE+】  or 【DATE-】  to adjust the voice MIDI channel. Note: The MIDI channel can be set according to the external equipment or software. The factory setting is preset according to the standard MIDI channel. Save the voice of drum set Press 【SAVE】...

  • Page 24: Adjust Pad Trigger

    ADJUST PAD TRIGGER Press 【SETUP】  to enter SETTING menu, press 【PAGE】  to switch setting menus. Adjust trigger sensitivity Press 【PAGE】  to enter the rst interface which is pad sensitivity adjust interface, use 【DATA+】  or 【DATA-】  to adjust, and the adjustable range is 01-08. Users can adjust the sensitivity of the drum pad according to their personal playing habits.

  • Page 25: Adjust Trigger Crosstalk Eliminate

    Adjust trigger crosstalk eliminate Press 【PAGE】  to switch the second interface （ pad sensitivity adjustment, you can use 【DATA+】  or 【DATA-】  to adjust, adjustable range: 00-16. When two pads are close, hitting one pad can cause the other pad to generate a signal.
  • Page 26 VEL CURVE Refers to the corresponding relationship between percussion strength and volume. By adjusting the parameters, it can make the percussion feel more comfortable and natural. Users can set the parameters according to their percussion habits. CURVE 1 CURVE 2 CURVE 3 CURVE 6 CURVE 4...

  • Page 27: Local Control

    Local Control Press 【PAGE】  to switch to the forth interface (local control), and you can use 【DATA+】 or 【DATA-】  to open or close. LOCAL: Local control to control the connection between the trigger and the drum module. ON: The drum pad is connected with the internal sound module, and the drum pad is tapped to produce sound, which defaults to ON.

  • Page 28: Select Trigger

    SELECT TRIGGER HI-HAT trigger setting Press 【SETUP】  to enter setting menu, and press 【PAGE】  to enter HI-HAT sensor type setting page. You can use 【DATA+】  or 【DATA-】  to set the trigger type of HI-HAT. HH1: Pedal type HH2: Simulate hi-hat Kick sensor type Press 【SETUP】...

  • Page 29: Reload Default Setting

    RELOAD DEFAULT SETTING Single user drum kit is restored to factory settings Press and hold 【SETUP】  to enter user drum kit default setting page, three indicators on the numeric LED are light up from left to right. You can use 【DATA+】  or 【DATA-】  to adjust the drum kit you want to restored, then press 【SETUP】...

  • Page 30: System Software Update

    SYSTEM SOFTWARE UPDATE Connect the module to the computer via the USB cable before operation, then select Yes by pressing 【DATE+】  or 【DATE-】 in the UPDATE option and press 【SETUP】 again. The system will have USB devices identi ed     and on My Computer in the form of a USB ash drive .

  • Page 31: Connect With External Audio Device

    Connect with external audio device This device automatically connects via channel 10 transfers drum signal to other MIDI device including notes, forces, pedal performance, etc. Note: Song playback data and metronome notes are not transferred. Record your performance with external sequencer 1.

  • Page 32: Midi List

    MIDI LIST www.PyleUSA.com...

  • Page 33: Troubleshooting

    TROUBLESHOOTING 1. Make sure the volume knob is set correctly and adjust the volume knob. 2. Check whether the audio cable between the audio source and the power ampli er or other playback No sound/sound equipment is connected correctly. is too low Replace the cable to test.

  • Page 34: Audio Source Specifications

    AUDIO SOURCE SPECIFICATIONS • POLYPHONY: 64 • DISPLAY: 3-segment numeric LED • VOICE: 320 drum and other percussion voices + 128 kinds of GM music tone • DRUM KITS: 22 preset drum kits+10 user drum kits SEQUENCER: 1. Single track recording 1000 notes 2. Normal mode:20 preset songs TEMPO FUNCTION: 1.

  • Page 35: Drum Kit List

    DRUM KIT LIST Name Name BRUSH KIT01 ROCK KIT17 KIT02 FUNK/POP KIT18 ELE1 KIT03 JAZZ KIT19 ELE2 KIT04 LATIN KIT20 COUNTRY DANCE KIT21 ORCH KIT05 KIT06 POP1 KIT22 SONGGU KIT07 POP2 KIT23 USER01 USER02 KIT08 POP3 KIT24 KIT09 HARD RCK KIT25 USER03 KIT10...

  • Page 36: Voice List

    VOICE LIST KICK SNARE25 PDLHHT15 TOMM4 SNARE26 PDLHHT16 TOMM5 KIT01 SNARE27 OPNHHT01 TOMM6 KIT02 SNARE28 OPNHHT02 TOMM7 KIT03 SNRIM1 OPNHHT03 TOMM8 KIT04 KIT05 SNRIM2 OPNHHT04 TOML1 SNRIM3 OPNHHT05 TOML2 KIT06 SNRIM4 OPNHHT06 TOML3 KIT07 SNRIM5 OPNHHT07 TOML4 KIT08 KIT09 SNRIM6 OPNHHT08 TOML5 SNRIM7...
  • Page 37 RIDE3 LOAGOGO PIATIM RIDE4 CABASA ESCRCH RIDE5 MARACS ECLK RIDE6 WHISTLE_S CIRCLE RIDE7 WHISTLE_L DOWN RIDE8 SGUIRO VOCAL1 RDBELL1 GUIRO_S VOCAL2 RDBELL2 GUIRO_L VOCAL3 RDBELL3 CLAVES VOCAL4 RDBELL4 WBLK_H VOCAL5 RDBELL5 WBLK_L VOCAL6 RDBELL6 CUICA_M VOCAL7 RDBELL7 CUICA_O1 VOCAL8 ELCRASH1 CUICA_O2 VOCAL9 ELCRASH2...

  • Page 38: Gm Drum Kit List

    GM DRUM KIT LIST Note No. Standard name Voice No. Voice Name 27－D#1 High Q High Q 28 E1 Slap SLAP 29－F1 Scratch Push SCRCH1 30－F#1 Scratch Pull SCRCH2 31－G1 Sticks STICK 32－G#1 Square Click SQCLCK 33－A1 Metronome Click CLICK 34－A#1 Metronome Bell BELL...
  • Page 39 Note No. Standard name Voice No. Voice Name 57－A3 Crash Cymbal 2 CRASH12 58－A#3 Vibraslap VSLP1 59－B3 Ride Cymbal 2 RIDE8 60－C4 Hi Bongo HIBONGO 61－C#4 Low Bongo LOBANGO 62－D4 Mute Hi Conga MUTECONGA1 63－D#4 Open Hi Conga HICONGA1 64－E4 Low Conga LOCONGA1 65－F4...

  • Page 40: Demo Song List

    DEMO SONG LIST SHUFFLE SHUFFLE ROCKBLUES DANCE SWING BOSSA RAGGE LATIN FLAMINGO www.PyleUSA.com...

  • Page 41: Register Product

    Thank you for choosing PyleUSA. By registering your product, you ensure that you receive the full bene ts of our exclusive warranty and personalized customer support. Complete the form to access expert support and to keep your Model Number: PyleUSA purchase in perfect condition. PTEDK86 PyleUSA.com/pages/register www.PyleUSA.com...
  • Page 42 Questions or Comments? We are here to help! Phone: 1.718.535.1800 PyleUSA.com/ContactUs...
