Summary of Contents for S-Track EAGLE XDP6

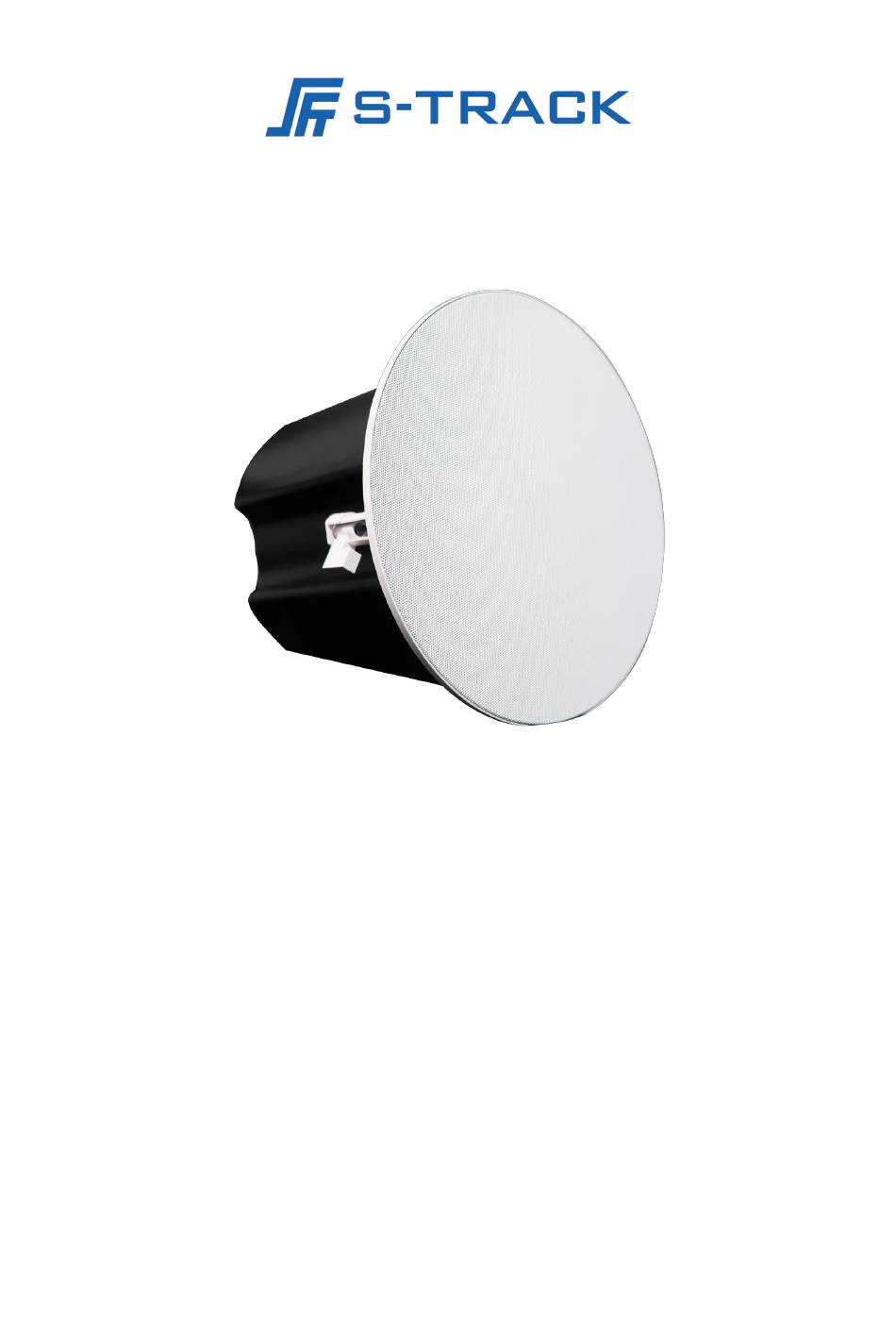

- Page 1 EAGLE XDP6 Ceiling Speaker User Manual...
-
Page 2: Table Of Contents
EAGLE XDP6 Ceiling Speaker TABLE OF CONTENTS Chapter 1 Product Introduction ......................1 Chapter 2 Specification ........................1 Chapter 3 Appearance Size ........................2 Chapter 4 Speaker Connection Diagram ....................3 Chapter 5 Installation Steps ......................... 4 Chapter 6 Dante POE amplifier module ....................6 Chapter 7 Dante POE Amplifier Module User's Guide .................7... -
Page 3: Chapter 1 Product Introduction

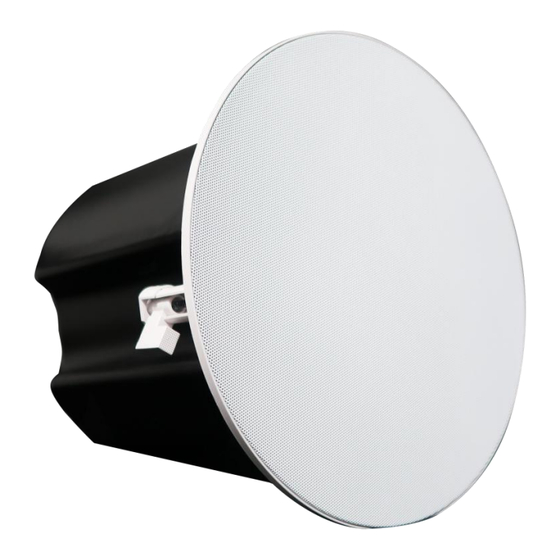

EAGLE XDP6 Ceiling Speaker Chapter 1 Product Introduction This is a POE Dante ceiling speaker with extraordinary sound quality, simple structure, easy and convenient power setting, easy installation, etc. It is suitable for indoor environments and can perform excellent background music and voice playback functions. -
Page 4: Chapter 3 Appearance Size
EAGLE XDP6 Ceiling Speaker Chapter 3 Appearance Size... -
Page 5: Chapter 4 Speaker Connection Diagram
EAGLE XDP6 Ceiling Speaker Chapter 4 Speaker Connection Diagram Correct terminal connection Attention: POE switch must be used for the speaker to function properly. -
Page 6: Chapter 5 Installation Steps
EAGLE XDP6 Ceiling Speaker Chapter 5 Installation Steps First, open a hole of 225mm in the ceiling. Detach the product net cover... - Page 7 EAGLE XDP6 Ceiling Speaker According to the pre-drilled hole, install the product on the ceiling and screw it on. After the product is fixed, re-install the net cover.
-
Page 8: Chapter 6 Dante Poe Amplifier Module
EAGLE XDP6 Ceiling Speaker Chapter 6 Dante POE amplifier module... -
Page 9: Chapter 7 Dante Poe Amplifier Module User's Guide
EAGLE XDP6 Ceiling Speaker Chapter 7 Dante POE Amplifier Module User's Guide 7.1 Steps for first time use Connect the Dante POE amplifier module to a POE-enabled Dante network switch, and then realize network-wide Dante device discovery through the Dante Controller software for... -
Page 10: Pc Main Interface Of The Software
EAGLE XDP6 Ceiling Speaker 7.2 PC Main interface of the software 7.3 Menu bar and status bar File： Import: used for scene file import, same as status bar. Export: for scene file export, same as status bar. Save: Save the scene, same as status bar Reset: reset the scene to the default value, same as status bar. -
Page 11: Equalizer (5 Bands)
EAGLE XDP6 Ceiling Speaker Marker: Device search button Connection status indication: Remarks: Connected status Remarks: Disconnected status 7.4 Equalizer (5 bands) All: Enable filters Filters 1-5: Select to enable or disable filters, green means enabled, gray means not enabled ：Yellow color indicates the current filter, you can set the frequency, gain and Q value for the current filter. -
Page 12: Limiter
EAGLE XDP6 Ceiling Speaker 7.5 Limiter POE power options: AF, AT, BT AF: 802.3 AF protocol, POE power <15W AT: 802.3 AT protocol, POE power <30W BT: 802.3 BT protocol, POE power <60W POE switch power over the protocol power will be distortion protection 7.6 High-pass and low-pass filters... -
Page 13: Temperature Monitoring
EAGLE XDP6 Ceiling Speaker 7.7 Temperature monitoring Temperature monitoring: real-time detection of amplifier module temperature 7.8 Level display Audio signal level indication... -
Page 14: Output Gain And Mute
EAGLE XDP6 Ceiling Speaker 7.9 Output gain and mute Mute: Mute audio output on/off Gain: Adjust the gain of the output audio signal, through the fader or input specific value adjustment... -
Page 15: Treble Boost And Bass Boost
EAGLE XDP6 Ceiling Speaker 7.10 Treble boost and bass boost High/Low Enhancement Adjustment: Setting of specific parameter values via fader or manual inputs. -
Page 16: Warranty Regulations
Warranty Regulations The warranty period of this product is 1 year. In the warranty period of non-man-made damage caused by the product performance failure can enjoy three packages of service. Warranty card by the sales unit stamped after the effective. The alteration is invalid! The following conditions (including, but not limited to, this) are not covered by the three-package service: 1. - Page 17 SHENZHEN S TRACK SCIENCE TECHNOLOGY CO., LTD Web: www.s-track.com.cn Tel:+86 755 29983191 Mail:service@s-track.cn Add: 9F, 1B, Shangzhi Technology Park, Guangming District, Shenzhen City, Guangdong Province, China 518107...
