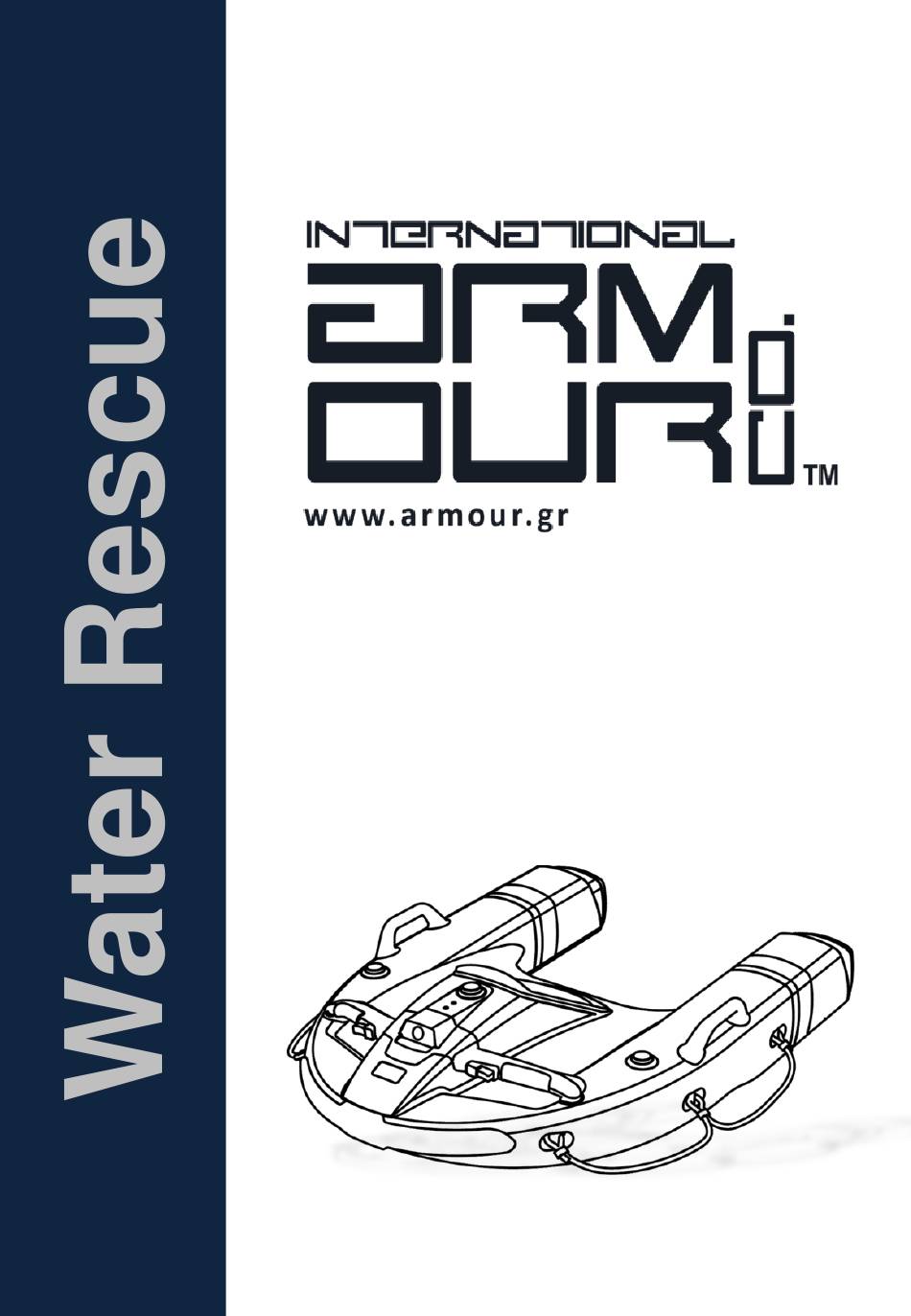

- Page 1 NEXT GEN REMOTE CONTROLLED LIFEBUOY SERIES D3 D3 & D3+ (Plus) HS CODE 9506290000 www.armour.gr www.armour.gr...
- Page 2 www.armour.gr...
- Page 3 The D3 Series can propel itself to rescue a casualty, faster than any skilled swimmer, while the rescuer can operate it with a remote controller to stay safe and dry. Bumper Camera Left hand throttle button Left hand throttle button...
- Page 4 Unlike existing indirect rescue systems and assets, the Smart LifeBuoy deploy quickly and directly – reducing the heavy burden of costs (insurance, etc) associated with deploying rescue and recovery operations by platform staff or government response. www.armour.gr...
- Page 5 4. User-Friendly Design: The lifebuoy is intuitive to operate and requires minimal training for rescuers. This accessibility is vital in emergencies where every second counts. 5. Durability: Made from high-quality materials, the lifebuoy is built to withstand harsh marine environments, ensuring longevity and reliability in rescue operations. www.armour.gr...
- Page 6 As technology evolves, the goal remains clear: to ensure that every swimmer, whether in a pool, lake, or ocean, has access to the best possible safety measures. Remote-controlled lifebuoys represent a pivotal step toward achieving this goal, embodying the perfect blend of tradition and innovation in water rescue technology. www.armour.gr...
- Page 7 INTRODUCTION www.armour.gr...
-
Page 8: Reading Tips
Important note Operation instruction Vocabulary explanation, reference information D3 series unmanned surface rescue vehicle is used for rescuing people who have fallen into water in rivers, lakes, reservoirs, coastal areas, and offshore activity areas. Quick Start Guide Used to replace traditional circular lifebuoys for active remote rescue of drowning victims, improve the success rate of rescue and ensure the safety of rescuers, and can be used in higher environmental requirements such as ships and airborne scenarios. - Page 9 13. Propeller: Provide power for D3. 14. Charging port: Used to charge D3. 15. Water detector sensor: Used to detect the device's water entry status when D3 comes into contact with the water surface, and the system automatically wakes up. www.armour.gr...
-
Page 10: Remote Controller
"cruise mode". Quickly press 6 times to power off the device. 9. Hole for lanyard: Can mount anti slip hand ropes. 10. Monitor mount: D3+ can fix the image transmission screen. www.armour.gr... - Page 11 2. TYPE-C charging port: Use the matching USB to TYPE-C charging cable to power the charging base. Remote controller wireless charging base is only available for the D3+ www.armour.gr...
- Page 12 When charging, the magnetic switch must be removed. 5. After the charging, please plug the charging port tightly with protective rubber. It is prohibited to use unofficial matching chargers to charge D3 Charger indicator light LED1 LED2 Status indication Charging GREEN Full shutdown www.armour.gr...
- Page 13 • Perform the normal maintenance process for D3 every 3 months (10 minutes operation on the water). • For safety reasons, the battery level needs to be kept low during transportation. Please discharge before transportation and use normally in water until the battery level is below 30%. www.armour.gr...
-
Page 14: Prepare The Remote Controller
• The remote control is already configured with the rescue robot one by one when it leaves the factory, so do not mix it up when using it. The last three digits of the S/N code on both nameplates are consistent. www.armour.gr... - Page 15 D3 that has been successfully paired with the remote controller and start using it. If you need to shut down, you can quickly press the button 6 times to turn off the power of the remote controller. www.armour.gr...
- Page 16 CONTROL D3 & D3+ www.armour.gr...
- Page 17 If it cannot operate normally, please contact your D3 supplier. • The first use must be practiced in a wide unmanned water area to prevent danger and damage to the D3. www.armour.gr...
- Page 18 D3 provides flipping and centering power through two propellers for manual flipping. After entering the water normally with the D3 facing upwards, if you need to reverse, you can gently pull the joystick backwards, and the two propellers provide power for the reverse. www.armour.gr...
- Page 19 If you need to control D3 to turn in the left and right directions, you can do by controlling the remote controller joystick to move left and right. The larger the movement, the greater the turning angle; Moderately increasing the throttle value in the forward direction of the joystick can achieve D3 turning while moving forward. www.armour.gr...
-
Page 20: Cruise Mode
Please try to operate the rescue robot within your field of view to avoid accidents such as collisions. When remote-controlled D3 , the actual remote control distance may vary due to factors such as the on-site environment (base station, signal tower, substation, and etc.). Please pay attention to operational safety. www.armour.gr... -
Page 21: Remote Controller Settings
10%~100%. Press the joystick lightly to confirm and press the return button to exit; Can limit the maximum throttle speed of the remote controller to 10%~100%, press the joystick lightly to confirm, and press the return button to exit www.armour.gr... - Page 22 According to the factory configuration channel address information of D3 , set the same channel and ID for the remote controller by moving the joystick up and down. After confirming that there are no errors, gently press the joystick to confirm and press the return button to exit. www.armour.gr...
-
Page 23: Screen Brightness
The screen brightness level can be set by moving the joystick up and down, divided into ten levels: 10%, 20%~100%. Select the corresponding brightness and lightly press the joystick to confirm. Press the return button to exit and return to the main interface. www.armour.gr... -
Page 24: Sleep Time
When D3 runs normally until the battery level drops to 20%, the remote controller will prompt the robot with low battery level. The D3 does not have the low battery return function. If D3+ is driving normally in water and GNSS positioning is normal, it will also trigger the low battery return function. www.armour.gr... - Page 25 During the lost contact return process, after reconnecting the remote control with D3 , it is recommended to manually control it to a controllable area before use. During the automatic return process, it is not possible to avoid obstacles automatically. After the remote controller signal is connected, manually takeover will be carried out. www.armour.gr...
- Page 26 Wake up after entering the water: Grasp the handle with both hands and gently insert D3 into the water in parallel. The robot sensor will automatically wake up and turn on the device when it detects that it has entered the water. www.armour.gr...
- Page 27 MOVEMENT & TURNING The driving direction of D3 Series Lifebuoy is controlled led by the left and right throttle buttons on the joystick. The joystick controller provides three modes of operation: 1. One handed mode (default): By pressing the corresponding directional throttle button to achieve directional steering, if driving in the forward direction, you need to simultaneously press the throttle buttons on both sides of the D3 control joystick.
- Page 28 20 ℃ or above. • When preheating, D3 needs to be placed in water and run at low speed (below 3m/s) to prevent damage to the sealing components of the power system and waterproof failure due to not entering water. www.armour.gr...
-
Page 29: Troubleshooting
Water has entered the shell of the rescue robot, triggering a water Remote control or leakage alarm function STOP USING robot screen leak Contact your supplier for support warning Leakage sensor, malfunction, false alarm www.armour.gr... - Page 30 It is strictly prohibited to use unofficial parts or accessories. If you need to repair the product or replace accessories, please contact your supplier for support. Our Company is not responsible for accidents caused by the use of unofficial components or accessories. www.armour.gr...
- Page 31 D3 magnetic switch. After confirming that the equipment is powered off, use tools to carefully clean it. It is strictly prohibited to reach into the thruster for cleaning to avoid personal injury. www.armour.gr...
-
Page 32: Battery Safety Instructions
BONPET fire extinguisher for Lithium batteries. Do not store the battery for a long time after completely discharging it, to avoid the battery entering an over discharged state, which may cause damage to the battery and prevent it from being restored to use. www.armour.gr... -
Page 33: Storage Requirements
Stay away from chemical substances that can cause combustion, explosion, personal injury or property damage under certain conditions during transportation, loading and unloading, production, use, storage, and storage. www.armour.gr... - Page 34 www.armour.gr...
