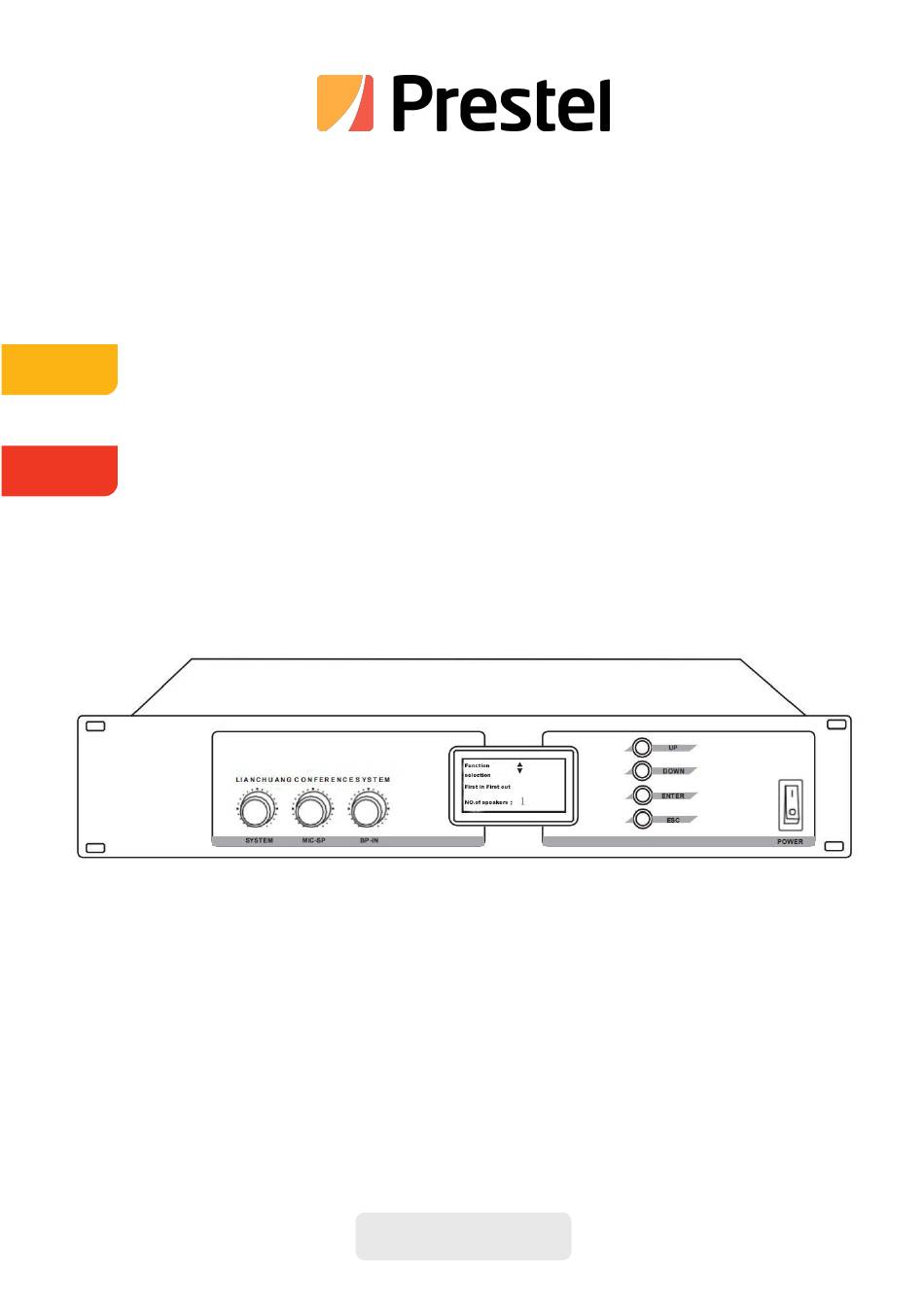

- Page 1 Prestel CUCS-3LHD Digital Conference System USER MANUAL...
- Page 2 Catalog 1）System specification....................1 2）System equipment function introduction........2,3 3）System settings...................4 4）High-speed ball (PTZ camera) function introduction (optional product)............5 5) Debug keyboard function introduction (optional product)....6 6) Video conference system engineering plan........7 7) Introduction of electronic encryption PC software (optional product)............8-16 8) Simple troubleshooting table, factory status setting table When using for the first time, it is recommended that the customer check the system first (recommended to use the first-in first-out mode, the number of...
- Page 3 1.the system description The system has conference discussion function, video tracking function, electronic sign-in/voting/election/scoring function; independent system audio output control, microphone unit Bulb bus volume control, background music input volume control; LCD display current working status and menu function. Its built-in high-capacity microcomputer system only needs to pass Through the factory's central processor panel controller settings and simple connection, high-quality and orderly video automatic tracking conference control can be realized;...
- Page 4 2.the system equipment function introduction 1) the central processor function introduction: Each central processor can be connected to 70 microphone units, and the expander can support 256 units. The video automatically tracks the electronic sign-in/vote/election/score function, and has a working mode of 1 to 6 limited mode. Out mode, free discussion mode, and chairman mode;...
- Page 5 2）Chairman / representative unit function introduction: · Adopt environmentally friendly low-power sealed touch sensor switch, without any mechanical parts, will not wear; · The international advanced fleece process in surface treatment is beautiful and fashionable, and it is not faded, deformed and durable.
- Page 6 3.the system debugging operation 1. Note: (1) The system will automatically detect after power-on, “B” will indicate that the communication is normal, and the system will send a continuous alarm sound (the connection unit is abnormal) (2) Before the system works, the number of system units should be confirmed according to the number of microphones actually connected, which can be larger than the actual number.
- Page 7 4.high-speed PTZ camera function introduction Beautiful appearance, unique shape, compact structure; stable operation, no noise; accurate positioning, no deviation jitter when stopping, high reliability; long-term stable operation, easy to use, no maintenance. With multi-point target preset, memory, auto cruise, area scan, auxiliary switch control, infrared remote control and other functions.
- Page 8 5. Digital Control Keypad Description Transmission baud rate: 2400bps Communication protocol: PELCO_D Input voltage: DC12V Communication port: RS-485 Operating temperature: 0 ° C to 49 ° C 1) the arrow keys. It can be rotated up and down 180 degrees and 360 degrees in the plane to make it easier to control the lens positioning of the high-speed pan/tilt camera ball.
- Page 9 6.the system connection diagram...
- Page 10 7.PC software introduction All settings of the system are executed with the highest instruction of the PC software. 1, installation instructions: Operating environment: PentiumII1GHz or above, memory 256M or more, Windows98se or above, the remaining space of the hard disk should be no less than 250MB. (1) The installation procedure runs completely green and does not leave any traces of running on other parts of the computer.
- Page 11 4. Welcome interface: After the communication serial port is set up, the above welcome interface can appear. You can click to quickly close the welcome interface, or you can wait for 4-7 seconds to automatically close. 5, system main interface system settings Precautions: (1) After the system is powered on, it will automatically detect.
- Page 12 ▲ "Set the number of units" to set the number of hardware units of the system, generally should match the number of system units or one or two more. ▲ “Field Assignment Unit No.” can reassign the unit number on site. Please note that when assigning, the unit number of the system cannot be repeated.
- Page 13 ▲ Click on the “Visual Settings” menu at the top of the system window and the system will enter the “Visual Settings” window. ▲Select the camera number, camera type, and communication speed before operating the dome. ▲ Click the direction button to combine the distance/aperture and speed +/- to make the camera reach the specified parameters.
- Page 14 9.the system main interface proposal list: ▲ Click on the “Proposal List” menu at the top of the system window, the system will enter the “Proposal List” window. The main function is to make a meeting proposal. ▲Click the lower list of the proposal mode at the bottom right of the window to select the type of proposal to be created.
- Page 15 10.the system main interface representative sign-in: ▲ Click on the “Representative Sign In” menu at the top of the system window, and the system will enter the “Representative Sign In” window. ▲ Click the“Sign in to start”button to enter the check-in status. At this time, the unit LED lights up. The MIC button is the check-in MIC.
- Page 16 ▲ Select a non-voting proposal and click the “Enter Vote” button at the bottom of the “Proposal List” window to enter the voting main window. ▲ To select the automatic mode, select the automatic time of the operation mode drop-down list. "Beep" is whether or not to use the countdown tone of the countdown.
- Page 17 Check "Output copy when printing" to output Word text for easy saving and editing when printing. 14. the secondary screen operation ▲ The secondary screen, also known as the second screen, is usually connected to a projector or other video device. Used to magnify the system information output. The PC should support dual graphics cards.
- Page 18 Video line connection instructions 1 foot is the speaker busbar; 2, 3 feet are audio lines; 4, 5 feet are data lines; 6, 7 feet connected to the power +; 8 feet and shielded wire are connected to the grounding wire; female male Conference line special wire welding diagram...
