- Page 1 ALL IN ONE PANEL ADMIN GUIDE Applicable Models: TC-U9AIZK-A12A/Z3 Version: 1.0 | Date: August.2023...
-
Page 2: About This Manual
About This Manual Thank you for choosing Taichuan TC-U9AIZK-A12A/Z3 all in one panel. This manual is intended for the administrators who need to properly configure the indoor monitor. This manual provides all the configurations for the functions and features of the TC-U9AIZK-A12A/Z3 smart control panel. -
Page 3: Related Documentation
Related Documentation You are advised to refer to the related documents for more technical information via the link below: http://Support-Zhuhai Taichuan Cloud Technology Co., LTD. -
Page 4: Table Of Contents
Table of Contents 1. Product Overview ....................5 2. Specifications ......................6 3. Access the Device ....................7 4. System Settings ...................... 9 4.1. Relay Setting ....................9 4.2. Ethernet Setting ....................9 4.3. WiFi Setting ....................10 4.4. Bluetooth Setting ..................10 4.5. -
Page 5: Product Overview

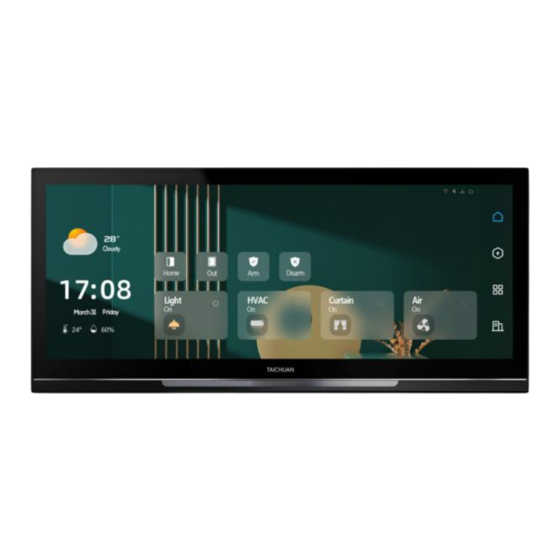

___________________________________________________________________________ 1. Product Overview TC-U9AIZK-A12A/Z3 is an Android based with a smooth touch-screen All in One smart control panel. It can be connected with Taichuan outdoor unit for audio/video communication, unlocking, and monitoring. Residents can communicate with visitors via audio/video call, and it supports unlocking the door remotely. -
Page 6: Specifications
___________________________________________________________________________ 2. Specifications Model TC-U9AIZK-A12A/Z3 Image Housing Material Alu.+PC Android 10 4 core Cortex-A53 1.6GHZ (Allwinner A133) Flash Memory 12.3 Inch IPS LCD capacitive touch screen Display Resolution 1920*720 Pixel 2xRJ45, 10/100Mbps adaptive Ethernet IEEE802.11 b/g/n Wi-Fi Tuya Zigbee 3.0... -
Page 7: Access The Device
___________________________________________________________________________ 3. Access the Device When you plug on power the device will boot up automatically . Main screen: weather state,time&date,temp&humidity;home automation&relay control. Intercom page: intercom record,view outdoor&doorbell camera,call property,call resident,etc. App list: all the installed app will show here. - Page 8 ___________________________________________________________________________ Setting page: Wipe down WiFi: on/off WiFi, long press to go to WiFi setting Bluetooth: on/off Bluetooth, long press to go to Bluetooth setting Voice assistant: OEM function, device built in 4 arrays mics Screen saver: on/off screen saver, long press to go to display setting Human sensor: on/off human sensor,when it’s on,when people come closer the screen will on automatically Smart settings:...
-
Page 9: System Settings
QR code to Smartlife or Tuya). 4.2. Ethernet Setting Taichuan All-in-one smart control panel inbuilt 2 RJ45 ports to allow you to set one Ethernet for intercom and the other for internet. -
Page 10: Wifi Setting
___________________________________________________________________________ 4.3. WiFi Setting Taichuan All-in-one smart control panel can connect to WiFi network for mobile app remote control, cloud talk and home automation.To access WiFi connection,trigger WiFi switch,choose available WiFi network,enter password and access. 4.4. Bluetooth Setting Taichuan All-in-one smart control panel inbuilt Bluetooth to Bluetooth devices. -
Page 11: Display Setting
___________________________________________________________________________ 4.5. Display Setting Parameter Set-up: Screen brightness: to adjust screen brightness Off screen time: to set screen rest time, support to set 1 min,2 mins,5 mins,10 mins,30 mins Screen protector: to trigger screen saver, support to set 1 min,2 mins,5 mins,10 mins,30 mins 4.6. -
Page 12: Theme Setting
___________________________________________________________________________ 4.7. Theme setting Taichuan All-in-one smart control panel provides 4 default wallpaper for home screen. 4.8. Time setting Time format setting,automatically syncing and set time manually. 4.9. Language Setting You can set or change the language for screen display,more languages is on the way. -
Page 13: Elevator Setting
__________________________________________________________________________ 4.10. Elevator Setting Taichuan All-in-one smart control panel inbuilt RS485 port for elevator control, this feature needs to work with elevator company for protocol docking. 4.11. About device Find out more equipment information on About device. 4.12. Intercom port... -
Page 14: Engineering Setting
__________________________________________________________________________ 5. Engineering Settings You can access to advanced settings for more configuration of video intercom settings, smart home settings and other settings on device Settings > About device, quickly tap Kernel version 3 times, enter password, the default password is 123456. 6. -
Page 15: Video Intercom
For intercom setting, please refer to intercom setting manual TC5000 management center admin guide. 8. Smart Home Taichuan All-in-one smart control panel inbuilt Smartlife(default) or Tuya smart home app to manage your smart home devices. Third party apps are supported,the Smart Home icon can be customized to your own app,long press... -
Page 16: Add Camera
__________________________________________________________________________ 9. Add Camera（coming soon） Taichuan All-in-one smart control panel supports third-party cameras, to add camera on device Monitor Camera, find ADD CAMERA, choose HK、DH (Hik,Dahua), input relative information and save. Note: Dahua default account:admin password: abcd123456 or 12345678 device port：554(RTSP) -
Page 17: Smart Scene Settings
__________________________________________________________________________ 10. Smart Scene Setting Taichuan All-in-one smart control panel supports smart home linkage, you can set different scenarios per your need on Scene Mode. Parameter : At home: when trigger back home mode, the preset devices will open. ... -
Page 18: Install Apk
__________________________________________________________________________ 11. Install APK Taichuan All-in-one smart control panel supports to install third-party apps,there are 4 main ways to install apps: 1. Via 3000 Management Center 2. Install APK through ADB environment command 3. Install APK through browser on monitor 4. -
Page 19: Firmware Upgrade
__________________________________________________________________________ 12. Firmware Upgrade To upgrade firmware, download software “PhoenixCard” to your PC, insert empty SD card, unpack the firmware package, choose the firmware image and burn, when the loading bar turns green, means burn card successfully. After you burn the card, insert the card to the TF card slot(device power off state),when power in it will automatically upgrade, when the loading bar turns green, it's successfully upgraded, after all the process must take out the card or it will upgrade again next time you turn on the device. -
Page 20: Abbreviations
__________________________________________________________________________ 13. Abbreviations ACS: Auto Configuration Server Auto: Automatically AEC: Configurable Acoustic and Line Echo Cancelers ACD: Automatic Call Distribution Autop: Automatical Provisioning AES: Advanced Encryption Standard BLF: Busy Lamp Field COM: Common CPE: Customer Premise Equipment CWMR: CPE WAN Management Protocol DTMF: Dual Tone Multi-Frequency DHCP: Dynamic Host Configuration Protocol DNS: Domain Name System... -
Page 21: Faq
A6:No, but you can connect electrical lock to outdoor panel, Taichuan outdoor panels have relay component. Q7:Can I communicate other indoor monitor with indoor monitor? A7:Taichuan device can communicate with each other, no matter it is indoor monitor or door phone. Of course indoor monitor can call to other indoor monitor. -
Page 22: Contact Us
__________________________________________________________________________ 15. Contact US For more information about the product, please visit us at www.taichuan.com or feel free to contact us Sales email: globalmarket@taichuan.com Technical support email: globalmarket@taichuan.com Telephone: +86-756-8665853 We highly appreciate your feedback about our products...
