Summary of Contents for Carrefour CCOS20V2A

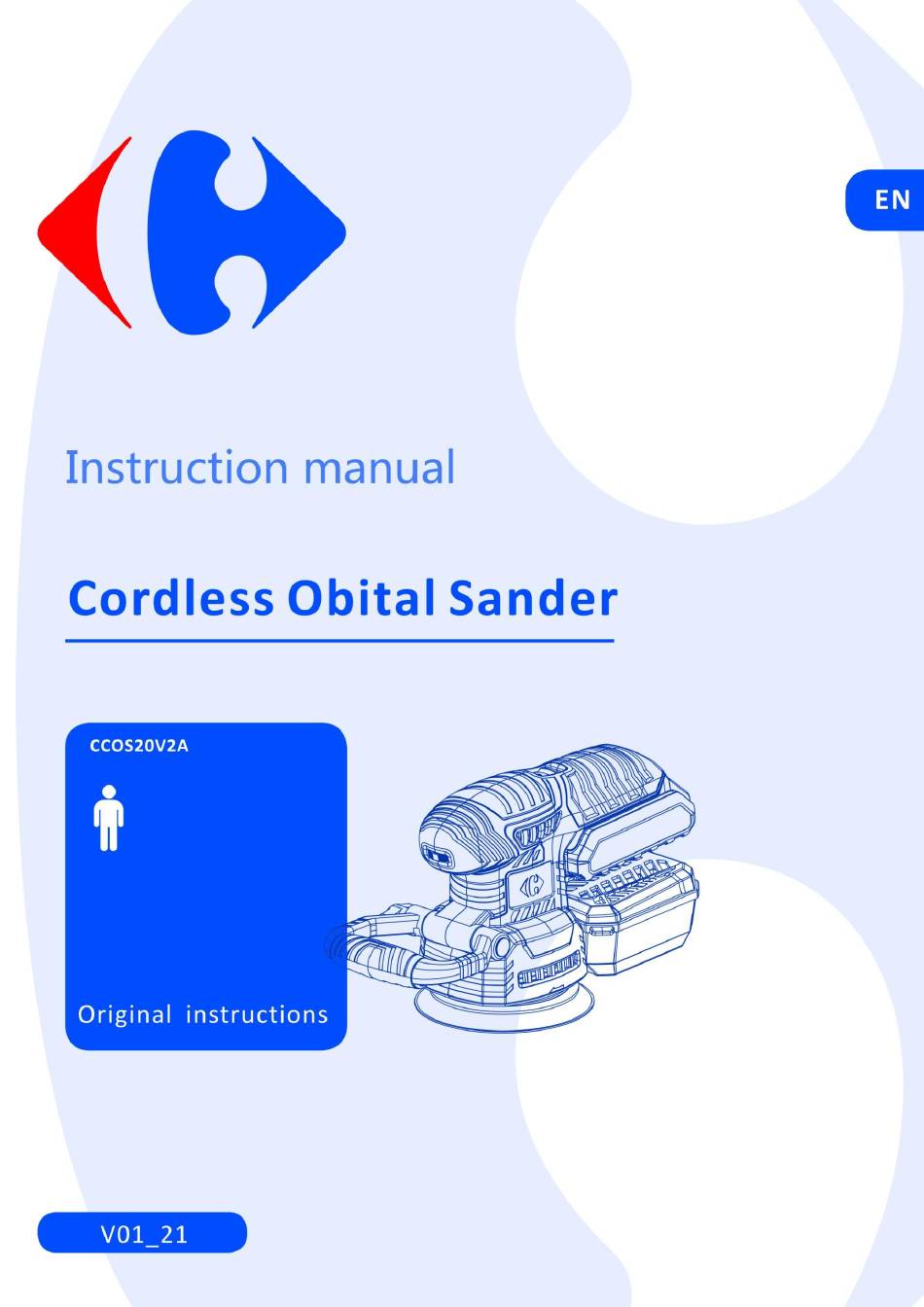

- Page 1 (DY94429)
- Page 2 Congratulation on your purchase. The quality team at CARREFOUR cares for its products to meet conformity and performances. Paying close attention to your satisfaction, our experts work all day on the improvement of our products. For assembly and/or maintenance and/or use of your product, you can use: These products are available in CARREFOUR stores.
- Page 3 Pictograms used Warning symbols with information on damage and injury prevention Read the operation instructions carefully. Read and understand all instructions before operating the product. Follow all warnings and safety instructions Electrical products must not be disposed of with the domestic waste. Protect the rechargeable battery from sunlight and heat (max.50ºC) Protect the rechargeable battery from water and moisture Protect the rechargeable battery from fire...
-
Page 4: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................... 5 PRODUCT DESCRIPTION ........................10 INTENDED USE ............................13 BEFORE USE ............................13 OPERATION ............................15 CLEANING & MAINTENANCE ......................... 16 STORAGE AND TRANSPORTATION ......................16 REPLACEMENT PARTS /ACCESSORIES ....................16 TROUBLESHOOTING ..........................17 DISPOSAL ............................. 17 DECLARATION OF CONFORMITY ...................... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 6 power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 7 temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. 6. Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
-
Page 8: Safety Instructions For Charger
d) Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and this is risk of explosion. e) Allow a hot battery to cool before charging. f) Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. -
Page 9: Vibration And Noise Reduction
children without adult supervision. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • Only use this charger CCH20V to charge the battery pack CBA20V2A. -
Page 10: Product Description
PRODUCT DESCRIPTION (Fig.A) -
Page 12: Technical Data
OVERVIEW (Fig.A) 9. Screw 1. ON/OFF switch 10. Additional handle 2. Battery release button 11. Speed setting wheel 3. Tab on the dust box 12. Battery level indication (LED) 4. Dust box 13. Battery charge level button 5. Reducer for external extraction appliances 14. - Page 14 CHARGING THE BATTERY PACK (FIG. B) Note: The battery can be damaged in case of improper charging. Remove the charger's mains plug before inserting or removing the battery. The battery is partially charged upon delivery to avoid damage to the battery caused by a deep discharge.
-
Page 15: Operation
WARNING! Remove the battery pack before carrying out any work! 1. You can attach the sanding sheet (7) to the sanding plate using the Velcro. 2. Make sure that the extraction holes on the sanding sheet (7) match up with those on the sanding plate (8). -
Page 16: Cleaning & Maintenance
6. Clean the sanding sheet every once in a while using a vacuum cleaner. 7. Sand hard-to-reach places with the front or side edge of the sanding sheet on the sander plate. 8. Guide the sander over the workpiece in parallel and use overlapping sanding motions. 9. -
Page 17: Troubleshooting
All 20V team shares the compatible charger and battery pack of 20V platform. TROUBLESHOOTING Warning! Only perform the steps described within these instructions. All further inspection, maintenance and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. -
Page 18: Declaration Of Conformity
Datum van afgifte en plaats: Firmado por y en nombre de: Lugar y fecha de expedición: Carrefour Marchandises Internationales - CMI - SAS au capital de 40.000€ 93 Avenue de Paris - 91300 MASSY - France RCS Evry 385 171 582... -
Page 19: Warranty
WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 20: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 21: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 22 (DY94429)
