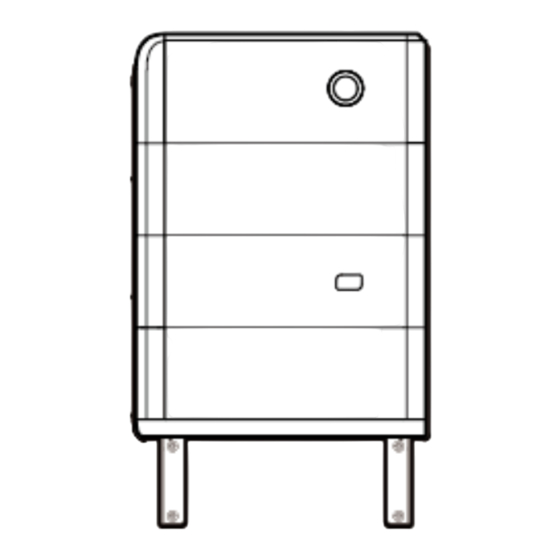

- Page 1 Sigen EV DC Charging Module Installation Guide SigenStor EVDC 12 (5S2, 7.5S2, 10S2) SigenStor EVDC 25 (5S2, 7.5S2, 10S2) Version: 01 Release date: 2024-06-20...
-
Page 2: Appearance And Dimensions
Only trained or qualified persons with electrical engineering knowledge can work directly on the equipment. • • Operators should be familiar with national and local laws, regulations, and standards, and the compositions and operating principles of relevant systems. Before performing operations, carefully read the document and the operation requirements and precautions in the Precautions section. If •... - Page 3 2 Inspections Before Installation • Check whether the components are entirely supplied against the packing list and whether the appearance is in good condition. For any problem, contact your sales representative. Check and ensure the completeness of personal protective equipment and installation tools; replenish if necessary. •...
-
Page 4: Site Requirements
3 Site Requirements The warranty applies when the equipment has been installed properly for its intended use and in accordance with the operating instructions. Installation Environment Installation Location • Do not install the equipment in a smoky, flammable, or explosive •... - Page 5 There will be errors in the actual distance under different installation environments, and the figure is for reference only.
- Page 6 4 Installation 4.1 Inverter + SigenStor EVDC + Battery Pack 4.1.1 Adding SigenStor EVDC Do not perform operations on the equipment with power on. Before operation, make sure to disconnect all power supplies of the equipment, including power switches on the power grid side, inverters, and diesel generators. (Optional) Determine the mounting hole positions of the inverter after installing the SigenStor EVDC.
- Page 7 Historical scenario of 1 inverter + 2 battery packs • Expansion bolts required in this step are supplied by users. M8 × 120 SS sleeve expansion bolts with washers are recommended. • Obtain the wall connectors required for this scenario from the historical “Installation package”. If you can not find the wall connector, please contact your sales representative.
- Page 8 Historical scenario of 1 inverter + 2 battery packs Remove and Wall put away...
- Page 10 Remove the cable connected to the inverter and remove the inverter. Skip steps if the inverter is not wall-mounted.
- Page 11 A cascade piece has two available appearance specifications. The actual application shall prevail.
- Page 14 (Optional) Follow these steps to mount the inverter to the wall securely.
- Page 15 Reinstall the inverter cable. If the cable length is insufficient during reinstallation, please refer to the corresponding model's SigenStor Home Installation Guide for specific installation instructions. • The decorative cover used in step is supplied with the SigenStor EVDC. Male •...
- Page 16 4.1.2 Newly Installing All Components • Install the battery pack, SigenStor EVDC, and inverter in sequence. • This section introduces the installation procedure of SigenStor EVDC only. For detailed instructions on installing the inverter and battery pack, please refer to the SigenStor Home Installation Guide for the specific model. Determine the mounting hole positions of the inverter after installing the SigenStor EVDC.
- Page 17 Floor Mounting • You do not have to mount the inverter to the wall when there are one SigenStor BAT. • INV1 is the mounting hole on the left side of the inverter for wall installation, while INV2 is the mounting hole on the right side for wall installation.
- Page 18 Install the SigenStor EVDC. Install the inverter.
- Page 21 (Optional) Follow these steps to mount the inverter to the wall securely.
- Page 22 Before installing the decorative components, please ensure the inverter cable is securely and properly connected. Please refer to the corresponding model's SigenStor Home Installation Guide for specific wiring operation procedures of the inverter. • The decorative cover used in step is supplied with the SigenStor EVDC.
- Page 23 4.2 Inverter + SigenStor EVDC 4.2.1 Adding SigenStor EVDC Do not perform operations on the equipment with power on. Always cut off the power supply before operation. Users can add the SigenStor EVDC to the Sigen Hybrid series inverters. Remove the cable connected to the inverter and remove the inverter.
- Page 24 Please follow the operation steps hereby precisely. If this step is not followed, there may be high voltage on the equipment after the equipment is powered on, and touching Position 1 as shown in the figure will cause personal injury.
- Page 26 Reinstall the inverter cable. Please refer to the corresponding model's Installation Guide for specific installation procedures.
- Page 27 4.2.2 Newly Installing All Components Wall...
- Page 28 Please follow the operation steps hereby precisely. If this step is not followed, there may be high voltage on the equipment after the equipment is powered on, and touching Position 1 as shown in the figure will cause personal injury.
- Page 30 Connect the inverter cable. Please refer to the corresponding model's SigenStor Home Installation Guide for inverter details.
- Page 31 5 Installation of Charging Socket and Placement of Charging Connector Wall...
- Page 32 Wall...
-
Page 33: Creating A New System
6 Power On 1. Turn on the upstream switch of equipment. Please visit https://www.sigenergy.com and go to "Partner" → 2. Turn the “DC SWITCH” of the inverter to the “ON” position. (This "Register Now" and sign up for your account. - Page 34 Creating New Systems in Both SigenStor EVDC and Other Devices Create a new system as instructed on the screen. • • Please refer to the corresponding model's SigenStor Home Installation Guide or corresponding inverter's Installation Guide for operation procedures. Adding SigenStor EVDC to an Existing Power Station Please contact our technical engineers to add SigenStor EVDC to the Existing Power Station.
- Page 35 FAQ How to remove and install the charging connector cable of the SigenStor EVDC? Remove the charging connector cable After removing the charging connector cable, do not damage the cable label.
- Page 36 Install the charging connector cable Please make sure that the cable is properly connected and the screws are tightened to prevent equipment damage.
- Page 37 Therefore, description in this document is provided for reference purpose only and constitutes neither an offer nor an acceptance. Sigenergy Technology Co., Ltd. may change the information at any time without notice.
