Summary of Contents for Carrefour CCAG20V2A

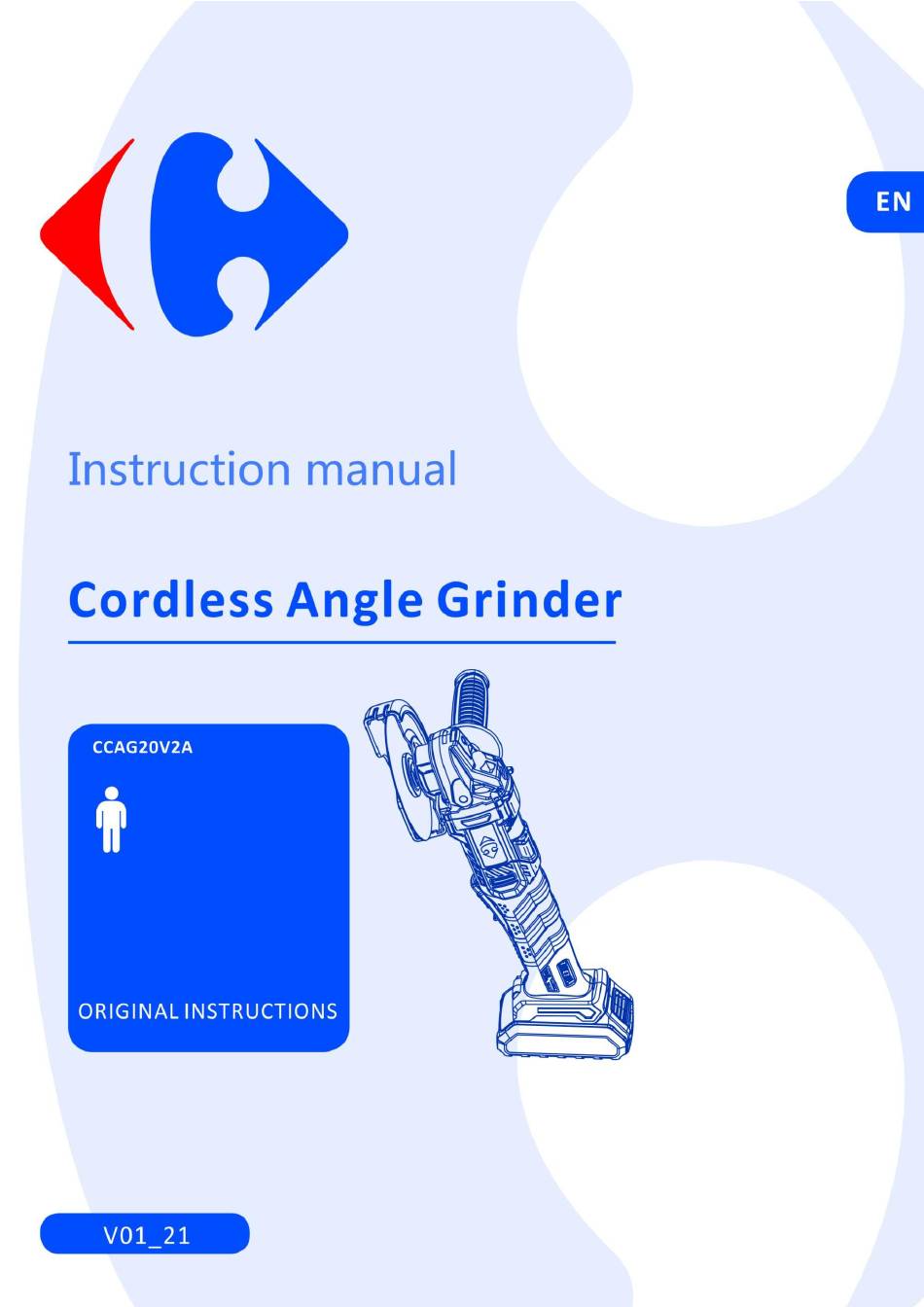

- Page 1 (DY94287)
- Page 2 Congratulation on your purchase. The quality team at CARREFOUR cares for its products to meet conformity and performances. Paying close attention to your satisfaction, our experts work all day on the improvement of our products. For assembly and/or maintenance and/or use of your product, you can use: These products are available in CARREFOUR stores.
- Page 3 Pictograms used Warning symbols with information on damage and injury prevention. Read the operation instructions carefully. Read and understand all instructions before operating the product. Follow all warnings and safety instructions. Electrical products must not be disposed of with the domestic waste. Protect the rechargeable battery from sunlight and heat (max.50ºC) .
-
Page 4: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................... 5 PRODUCT DESCRIPTION ........................12 INTENDED USE ............................15 BEFORE USE ............................15 OPERATION ............................18 CLEANING & MAINTENANCE ......................... 19 STORAGE AND TRANSPORTATION ......................20 REPLACEMENT PARTS /ACCESSORIES ....................20 TROUBLESHOOTING ..........................21 DISPOSAL ............................. 21 DECLARATION OF CONFORMITY ...................... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... -
Page 6: Safety Instructions For All Operations
power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. - Page 7 a) This power tool is intended to function as a grinder or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Operations such as sanding, wire brushing, polishing are not to be performed with this power tool.
-
Page 8: Further Safety Instructions For All Operations
FURTHER SAFETY INSTRUCTIONS FOR ALL OPERATIONS Kickback and Related Warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. - Page 9 suitable for the higher speed of a smaller tool and may burst. ADDITIONAL SAFETY WARNINGS SPECIFIC FOR GRINDING AND CUTTING-OFF OPERATIONS: Additional Safety Warnings Specific for Abrasive Cutting-Off Operations a) Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut.
-
Page 10: Safety Instructions For Charger
to 40 ºC. i) The recommended ambient temperature range for tool and battery storage is from 0ºC to 50 ºC. j) The recommended ambient temperature range for tool and battery use is from -5ºC to 50 ºC. k) Remove the battery from the device before storage. l) Electrolyte leaking from the cells can cause damage to the skin, clothes or any other items exposed to it. -
Page 11: Vibration And Noise Reduction
To charge the battery, use only the charger supplied Never charge non-rechargeable batteries. During charging the batteries must be placed in a well ventilated area. VIBRATION AND NOISE REDUCTION To reduce the noise and vibration emission, limit the time of operation, use low-vibration and low noise operating modes as well as wear personal protective equipment. -
Page 12: Product Description
PRODUCT DESCRIPTION (Fig. A) -
Page 14: Technical Data
OVERVIEW (Fig. A-C) 1a. lock-off device 11. Mounting ring 1b. ON/OFF switch button 12. Screws 2. Battery release button 13. Guard fixture 3. Battery pack 14. Charger 4. Battery charge level button 15. RED Charge control LED 5. Battery level indication (LED) 16. -
Page 15: Intended Use
90.7dB(A) Uncertainty K 3dB(A) Vibration emission value Vibration value determined in accordance with EN 60745-2-3 8.087 m/s Uncertainty K 1.5 m/s The declared vibration total values and the declared noise emission values have been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total values and the declared noise emission values may also be used in a preliminary assessment of exposure. -
Page 16: Removing /Inserting The Battery
1 x guard (pre-assembled) 1 x additional handle 1 x two-hole mounting spanner 1 x transport case 1 x Instruction manual CHARGING THE BATTERY PACK (FIG. B) Note: The battery can be damaged in case of improper charging. Remove the charger's mains plug before inserting or removing the battery. The battery is partially charged upon delivery to avoid damage to the battery caused by a deep discharge. -
Page 17: Adjusting The Wheel Guard
FITTING THE PROTECTIVE COVER FOR CUTTING When cutting with the cut-off abrasive wheel, always use the protective cover (8a) for cutting. 1. Slide the protective cover (8a) onto the guard (8) (see Fig. D) until the plastic clip “X” snaps into place at the end. -
Page 18: Operation
2. With thick discs (Fig F-2) The collar of the clamping nut (19) faces downwards so that a thin disc can be fitted securely onto the attachment spindle (17). Press the spindle locking button (9) to lock the attachment spindle (17). ... -
Page 19: Cleaning & Maintenance
2. Move the angle grinder with moderate pressure back and forth over the workpiece. 3. For soft material, move the roughing disc at a flat angle over the workpiece; for hard material at a slightly steeper angle. 4. Never use the rough grinding discs for cutting operation. 5. -
Page 20: Storage And Transportation
STORAGE AND TRANSPORTATION Before storing /transporting the appliance, observe the following: 1. Switch off the device 2. Hold onto the mains plug while pulling the power cable of the charger out the mains socket. 3. Allow the appliance to cool down. 4. -
Page 21: Troubleshooting
TROUBLESHOOTING WARNING! Only perform the steps described within these instructions. All further inspection, maintenance and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself. Suspected malfunctions are often due to causes that the users can fix themselves. -
Page 22: Declaration Of Conformity
DECLARATION OF CONFORMITY Carrefour Marchandises Internationales 93, avenue de Paris 91342 Massy France Herewith we declare that the product Cordless Angle Grinder Model number: CCAG20V2A(DY94287) S/N: 20210712596-20210714371 Is in conformity with the following European Directives 2006/42/EC 2014/30/EU 2011/65/EU & (EU) 2015/863 2015/35/EU... -
Page 23: Warranty
WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 24: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 25: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 26 (DY94287)
