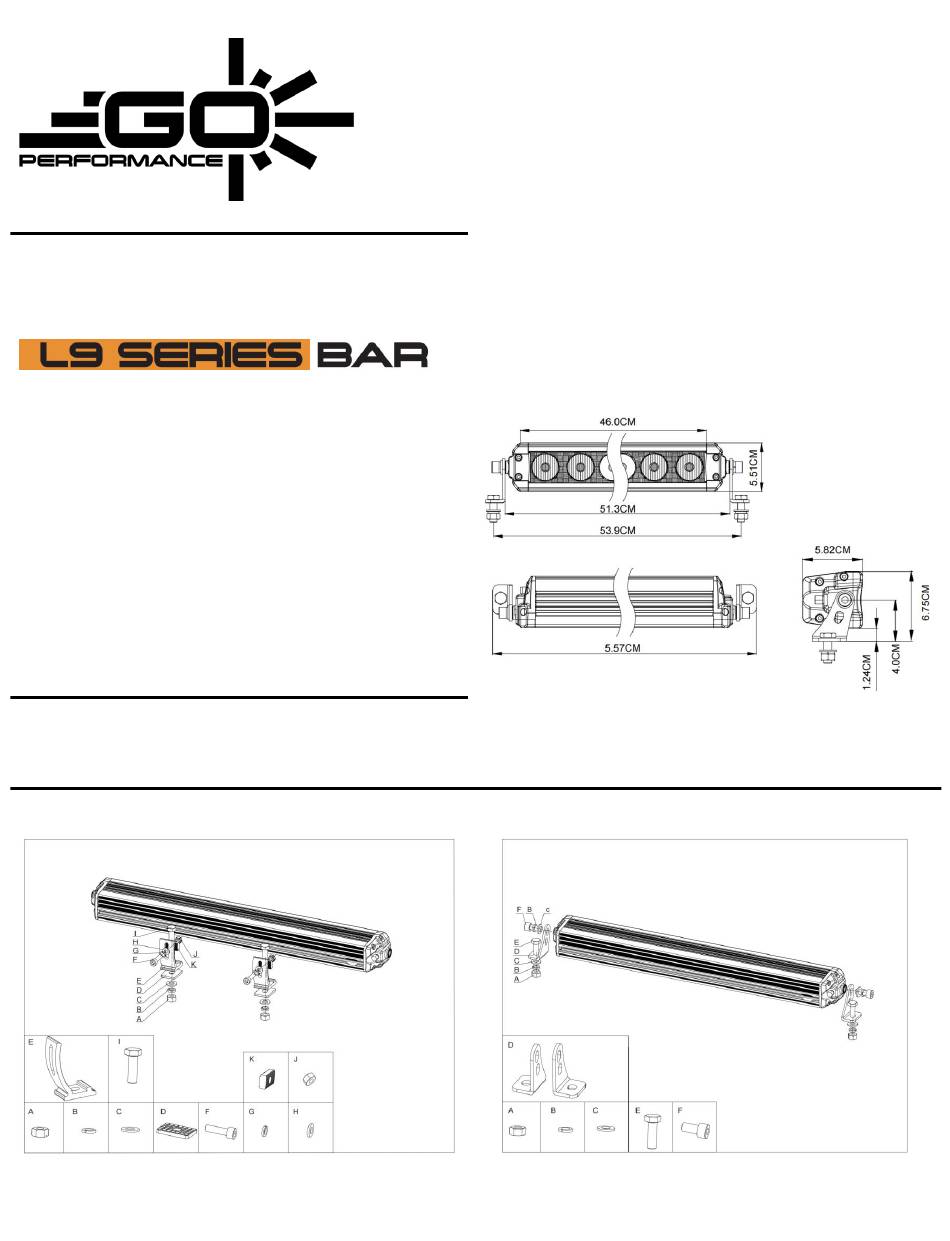

4BB816
L9 SERIES BAR
20" STRAIGHT LED LIGHT BAR
WITH BACK LITGHT
COMBO BEAM
MOUNTING INSTALL INSTRUCTION
Bottom Mounts
SKU# 4BB816 INSTALL MANUAL
WHAT'S INCLUDED:
1 x LED Light Bar
Side and Bottom Mounting Brackets
Mounting Hardware
FEATURES & SPECIFICATIONS:
Light Output: 8,400 Lumens
Power: 120W @ 13.6V DC
Current: 8.8A @ 13.6V DC
Voltage: 9 - 36V DC
Dimension (H,W,D): 5.5 x 51.3 x 5.8 CM
Beam Pattern: Driving Beam
Side Mounts
1
www.go-performance.ca
Advertisement
Summary of Contents for GO PERFORMANCE L9 4BB816
- Page 1 WHAT’S INCLUDED: 1 x LED Light Bar Side and Bottom Mounting Brackets Mounting Hardware FEATURES & SPECIFICATIONS: Light Output: 8,400 Lumens Power: 120W @ 13.6V DC Current: 8.8A @ 13.6V DC Voltage: 9 - 36V DC ...
- Page 2 INSTALL INSTRUCTION 1. Determine suitable mounting locations to install the LED light bar, wiring harness. Once all mounting locations are confirmed, connect the wires as shown above. Connect the ACC wire to the ignition or cigarette lighter in your car. Proper insulation at connections is required. 2.
