G.S.M Activate 2G/4G BATT V9 Manual

Gsm battery powered auto dialler
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

GSM
BATTERY POWERED
AUTO DIALLER
Page 1
MODEL NUMBER 2G/4G BATT V9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2G/4G BATT V9 and is the answer not in the manual?

Questions and answers

Summary of Contents for G.S.M Activate 2G/4G BATT V9

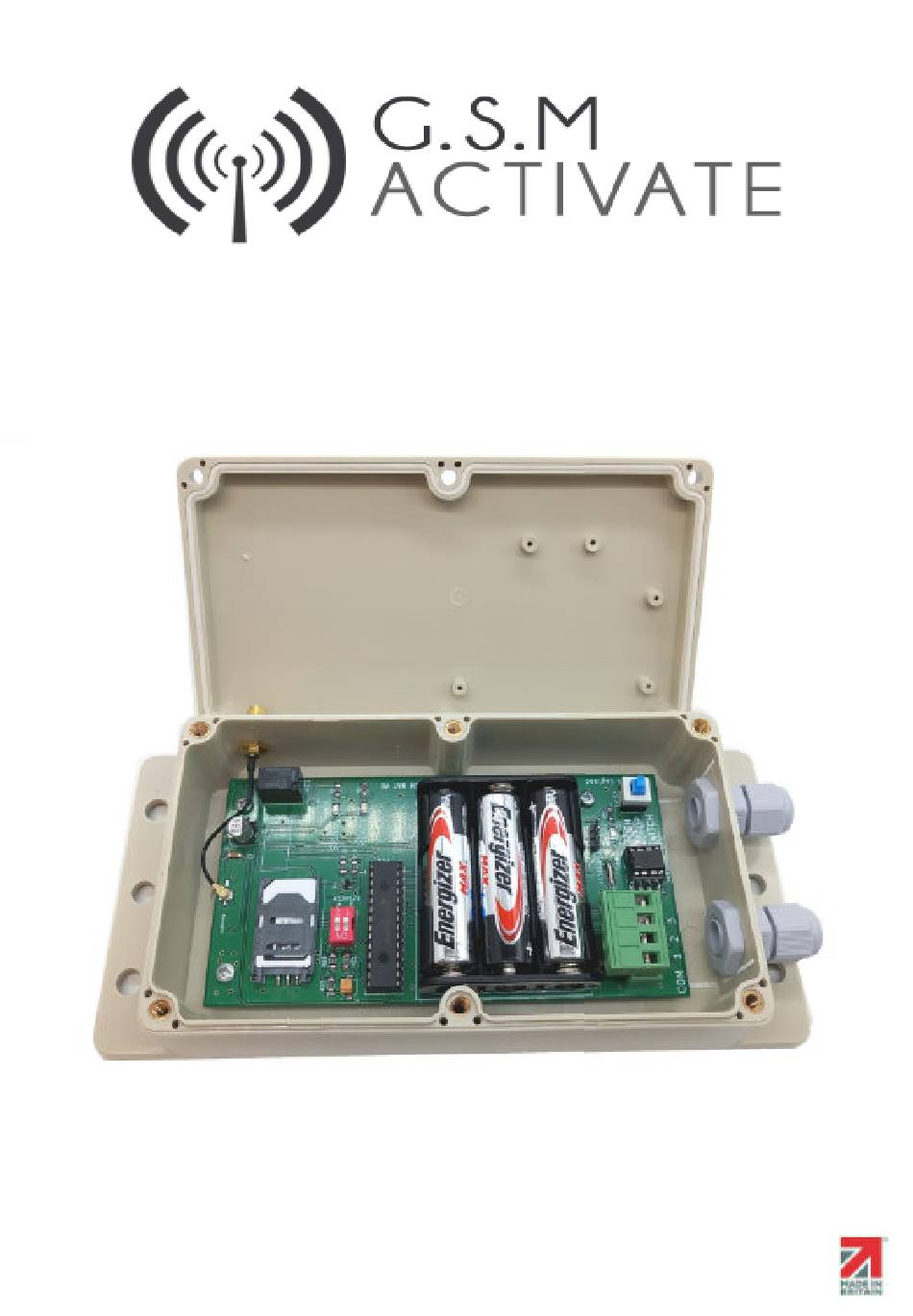

  • Page 1 BATTERY POWERED AUTO DIALLER Page 1 MODEL NUMBER 2G/4G BATT V9...

  • Page 2: Product Information

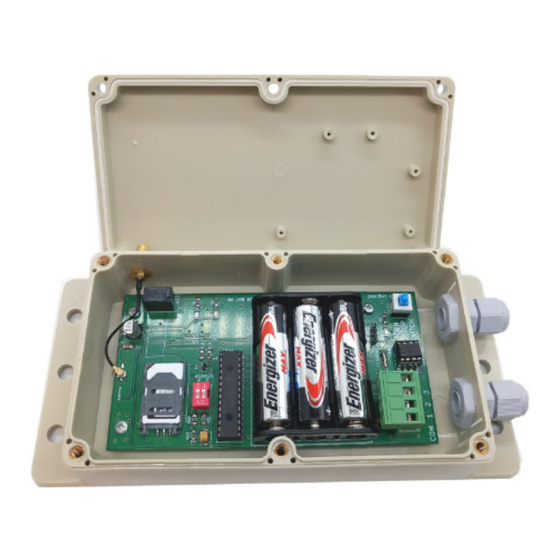

    Product Information Our GSM Battery Powered Auto Dialler is a monitoring unit that can be used in locations without power to alert the end users of various events by text (sms) and telephone calls. The unit runs from a 3 AA batteries which will last around a 1 year (or up to 50 alerts) before needing to be replaced.

  • Page 3: Signal Strength

    INSTRUCTIONS Input 3 Input 1 IMPORTANT - PLEASE READ Please make sure you disconnect the power and turn off the battery when you fit the simcard. Then slide the simcard into the holder making sure that the clipped corner of the simcard lines up with the clipped corner of the simcard holder as seen in the image above.
  • Page 4 For ease of use, we have colour coordinated the (hash) and (equals) symbols. How To Program The Unit 1. Turn ON the battery switch setup Hold down the switch for 4 seconds (RED LED will come on) This will start the boot up procedure.
  • Page 5 Programming of Message and other Functions You can now change the SMS message to a customised message of your choosing. The default message is “INPUT ACTIVATED” To change the message send the text command as follows #MESS1=YOUR MESSAGE# #MESS2=YOUR MESSAGE# Max 29 characters #MESS3=YOUR MESSAGE#...
  • Page 6 Using the Battery Dialler Trigger inputs Input 3 Switch 1 on = 4G Switch 1 on = 4G Input 2 Input 1 Switch 1 on = 4G Switch 1 off = 2G Triggering the unit Once the unit has been programmed, you can put it into ‘sleep mode’ by turning the battery switch to OFF (see above) and then back ON.

  • Page 7: Dip Switch Settings

    Battery Life The onboard battery will last for approximately 3 years in sleep mode or 50 trigger activations before it will need replacing. Upon every activation the unit will also tell the current battery level. Dipswitch Settings Dipswitch 1 ON= 4G Dipswitch 1 OFF =2G DIPSWITCH 2 NOT USED...
  • Page 8 Quick Reference Send Text Opera�on Acknowledgment #MESS1=MESSAGE# Stores a Custom Message for Input 1 Message Stored #MESS2=MESSAGE# Stores a Custom Message for Input 2 Message Stored #MESS3=MESSAGE# Stores a Custom Message for Input 3 Message Stored #SIGNAL# Gives a Signal Strength Test Score of 1 - 30 #1=NUMBER# Saves a Contact Number 1...
