Summary of Contents for banks WB12

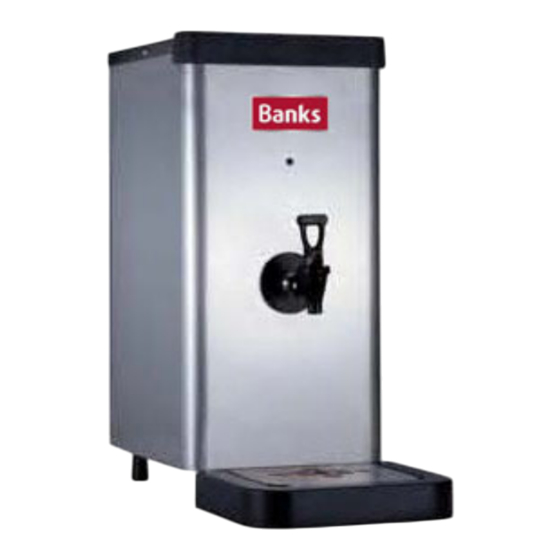

- Page 1 Banks Water Boiler (WB12) Operation Manual Please read carefully & keep for future reference...
-
Page 2: Table Of Contents
Thank you for purchasing a Banks water boiler. Please read this manual carefully to further understand the features, installation & operational details of this water boiler. Content Introduction & Technical Specification --------------------------------------------------- 3 Introduction -------------------------------------------------------------------------------- 3 Characteristics --------------------------------------------------------------------------- 3 Technical Specification ------------------------------------------------------------------ 3... -
Page 3: Introduction & Technical Specification
3. Automatic filling of water. 4. Drip tray and water hose included. 5. Power rating off 3 Kw supplied on a 13 amp plug-top. Technical Specification: Dimension Water Level Model Power Voltage/Frequency Width Depth Height(mm) Control mode (mm) (mm) WB12 240V/50HZ Probe... -
Page 4: Installation
Installation 1. The equipment should located in a well ventilated environment, at least 80 mm away from flammable objects on the left and right hand sides and at least 150 mm away from flammable objects at the rear. 2. The water pipe outlet is situated at the rear of the water boiler. Notice: Do not use a softener on the water supply to the water boiler 3. -
Page 5: Maintenance
Maintenance 1. Clean the water boiler with a wet towel. Do not hose down the water boiler. Disconnect the power while cleaning. 2. Do not use any caustic chemicals or abrasive cleaning materials to clean the boiler. 3. Check water boiler periodically for leaks, damage to the power cable etc. 4. -
Page 6: Trouble Shooting
Trouble shooting Symptoms Cause Solution Power disconnected Check power and fuse in plug Not taking in water Water supply is turned off Turn on water Water solenoid is damaged Change solenoid or blocked Control PCB is damaged Change PCB Water level probes inside Clean or change probes boiler tank... -
Page 7: Exploded Parts View
Exploded view Serial Description Serial Description Power Supply Water Box F05061 11501005 wire Cover Back guard Heating 11501004 F01162 Element Maintenance Gasket 11501007 E15155 Door Electric Temperature S08003 E05131 Module Probe Electromagnetic Top Cover S08025 S08024 Valve Assembly Assembly Bottom Plate Inner 11501006 S08015... -
Page 8: Circuit Diagram
Circuit diagram Transformer ℃ Lamp Heating element Electromagnetism... -
Page 9: Notes
Note...
