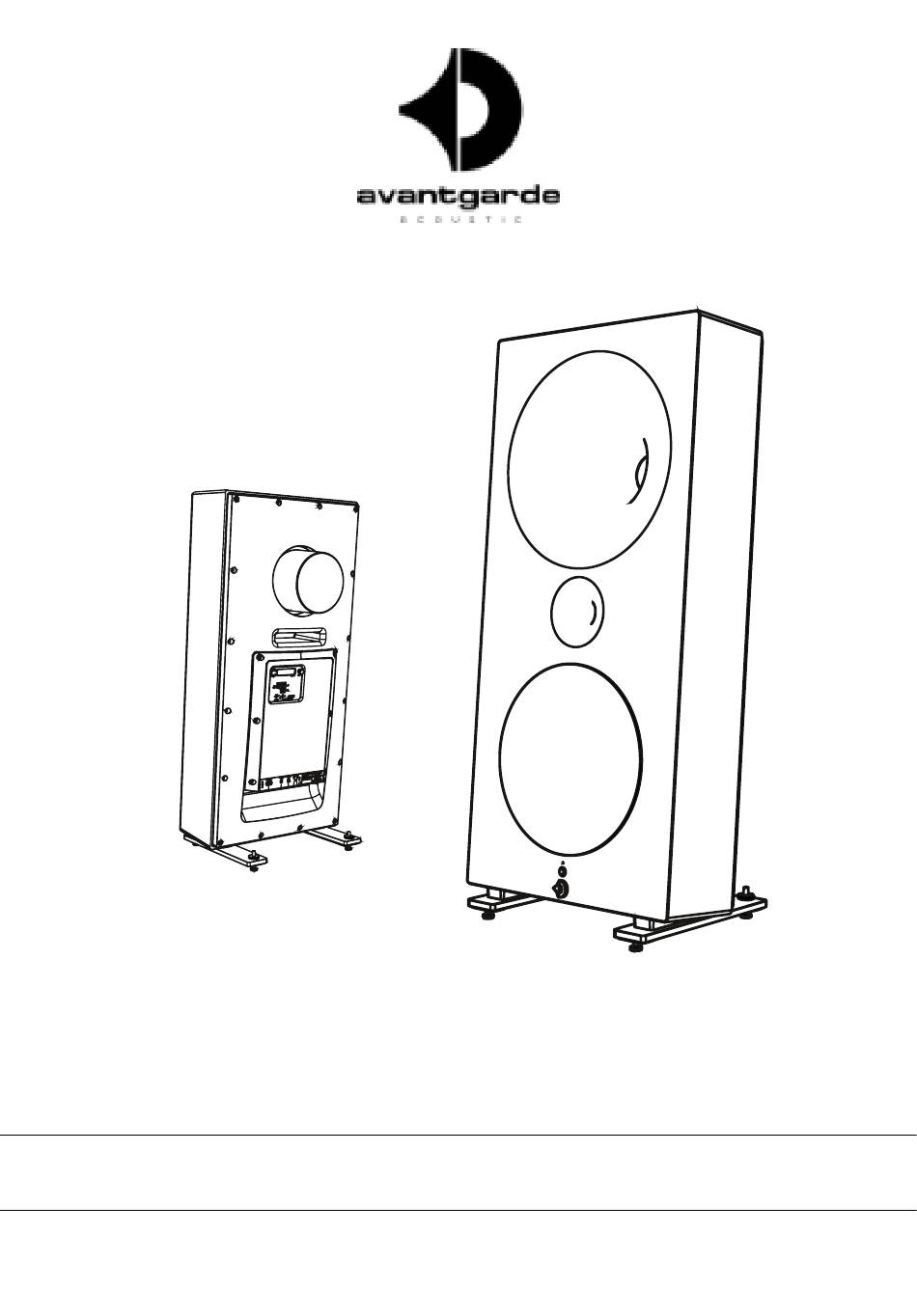

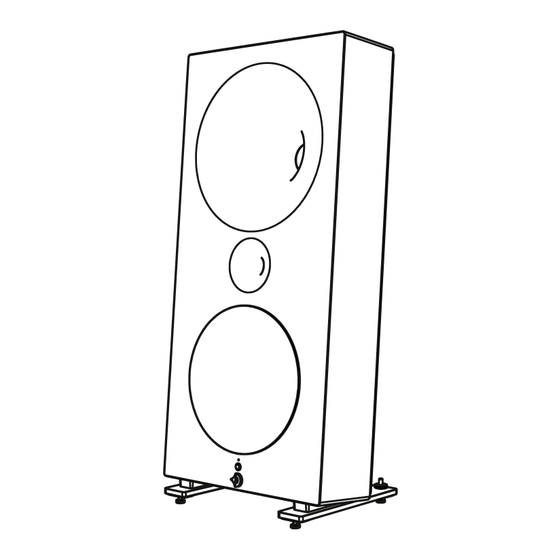

- Page 1 User Manual ZERO ITRON Version 1.1...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION SAFETY INFORMATION PRECAUTIONS ON INSTALLATION OPERATING VOLTAGE SET UP CONTENT OF PACKAGES UNPACKING SPEAKER STAND ASSEMBLY SPIKE ASSEMBLY OPERATION SAFETY PRECAUTIONS CONNECTION ITRON VERSION – BALANCED XLR POWER SWITCH SPEAKER GAIN SETTINGS POWER MODE SETTINGS OPERATION DSP SUBWOOFER AMP SUBWOOFER VOLUME DSP SOFTWARE INSTALLATION... -
Page 3: Safety Information
SAFETY INFORMATION SAFETY INFORMATION PRECAUTIONS ON INSTALLATION CAUTION Do not carry the speakers by the horn. To prevent f ire, shock or damage, do not expose the components to rain or moisture. Place the loudspeaker on a flat floor with a load-bearing capacity Conditions for operation: that adequately supports the weight of the loudspeakers. -
Page 4: Content Of Packages
CONTENT OF PACKAGES UNPACKING & SPEAKER STAND ASSEMBLY ZERO ITRON ZERO ITRON cardboard boxes with one speaker in each. When unpacking and setting up the speaker, be aware of their heavy weight! For this work we strongly recommend the assistance... - Page 5 ASSEMBLY OF SPIKES ZERO ITRON When unpacking and setting up the speaker, be aware of their heavy weight! For this work we strongly recommend the assistance of one person! Carefully tilt the loudspeaker backward when installing the f ront 2 x spikes (short).
-
Page 6: Safety Precautions
SAFETY PRECAUTIONS CONNECTION ON INSTALLATION BALANCED XLR CONNECTION The power to all components must be switched “off ” (or Line level connections feature balanced XLR connectors/terminals. disconnected f rom the household AC) before making any audio The pin assignment of these follows the EIA RS-297-A standard: connections. -
Page 7: Speaker Gain Settings
SPEAKER GAIN SETTINGS POWER MODE SETTINGS AUDIO SOUND ADJUSTMENTS MANUAL OR AUTO POWER-ON CLIP CLIP SERVICE USE SERVICE USE ONLY ONLY CLIP DSP PROGRAMMING DSP PROGRAMMING SERVICE USE SERVICE USE SERVICE USE ONLY ONLY ONLY DSP PROGRAMMING + 1.5 dB + 1.5 dB 0 dB 0 dB... -
Page 8: Subwoofer Volume
SUBWOOFER VOLUME SUBWOOFER PROGRAMMING DSP VOLUME SETTINGS DSP SOFTWARE INSTALLATION Additional settings can be programmed with the Avantgarde Control software. CLIP The corresponding software, for Windows and MacOS can be CLIP downloaded f rom the website: www.avantgarde-acoustic.de SERVICE USE ONLY SERVICE USE ONLY LAN CONNECTION TO PC... -
Page 9: Dsp User Interface
OPERATION – SUBWOOFER DSP AMP OPERATION – SUBWOOFER DSP AMP DSP USER INTERFACE DSP SETTINGS The BASS GAIN slider � sets the overall volume of the subwoofer. 30Hz 40Hz 60Hz 80Hz 110Hz 160Hz 220Hz 320Hz The BASS BOOST slider � increases the low f requency response below 45 Hz. -
Page 10: Fine Tuning
FINE TUNING FINE TUNING ROOM PLACEMENT TOE–IN & TOE OUT We recommend to place both speakers with the horns facing By facing the speakers inwards (toeing–in) or outwards (toeing– towards the listener. This setup projects the high-f requency and out) you can further affect the focus and tonal balance of the imaging precision with maximum stability into the center of the system. -
Page 11: Tilting
FINE TUNING CLEANING TILTING CLEANING OF SATIN-FINISHED LACQUER SURFACES Depending on the listening distance and seat height, it may be We recommend to regularly clean satin f inished color–coated important to tilt the speaker systems forward or backward. surfaces (for ex. speaker body) with a dry soft fabric (duster) or a soft brush. -
Page 12: Warranty
WARRANTY SPEAKER REGISTRATION Register your speaker and receive an extension of your factory war- ranties for 1 year at a time as the f irst owner. Please f ill out the warranty card: name: ........street: . - Page 13 1 year (f irst owner only). shipping box. • The Avantgarde Acoustic warranty card is f illed out and added www.avantgarde-acoustic.de to the product or, alternatively the original invoice f rom the dealer or a proof of online product registration in the Avantgarde Acoustic Lautsprechersysteme GmbH Avantgarde Customer Club.
-
Page 14: Notes
NOTES NOTES... - Page 15 Avantgarde Acoustic GmbH Nibelungenstrasse 349 D–64686 Lautertal Germany Tel: +49.6254.306 100 email: info@avantgarde-acoustic.de www.avantgarde-acoustic.de ZERO iTRON USER MANUAL Version 1.1, October 2024...
