Lectronics LTBATELIM Technical Data

LTBATELIM
Battery Eliminator (for LT, M2R, M2Ra, DCHR, DCHT, DBU, DBu-LEMO)
This battery eliminator replaces the batteries and door
on the unit, allowing it to be powered from an external
DC source. The battery eliminator is supplied in a kit
including mounting screws.
P/N 28615 (2-56 1/8)
P/N 28623 (2-56 5/16)

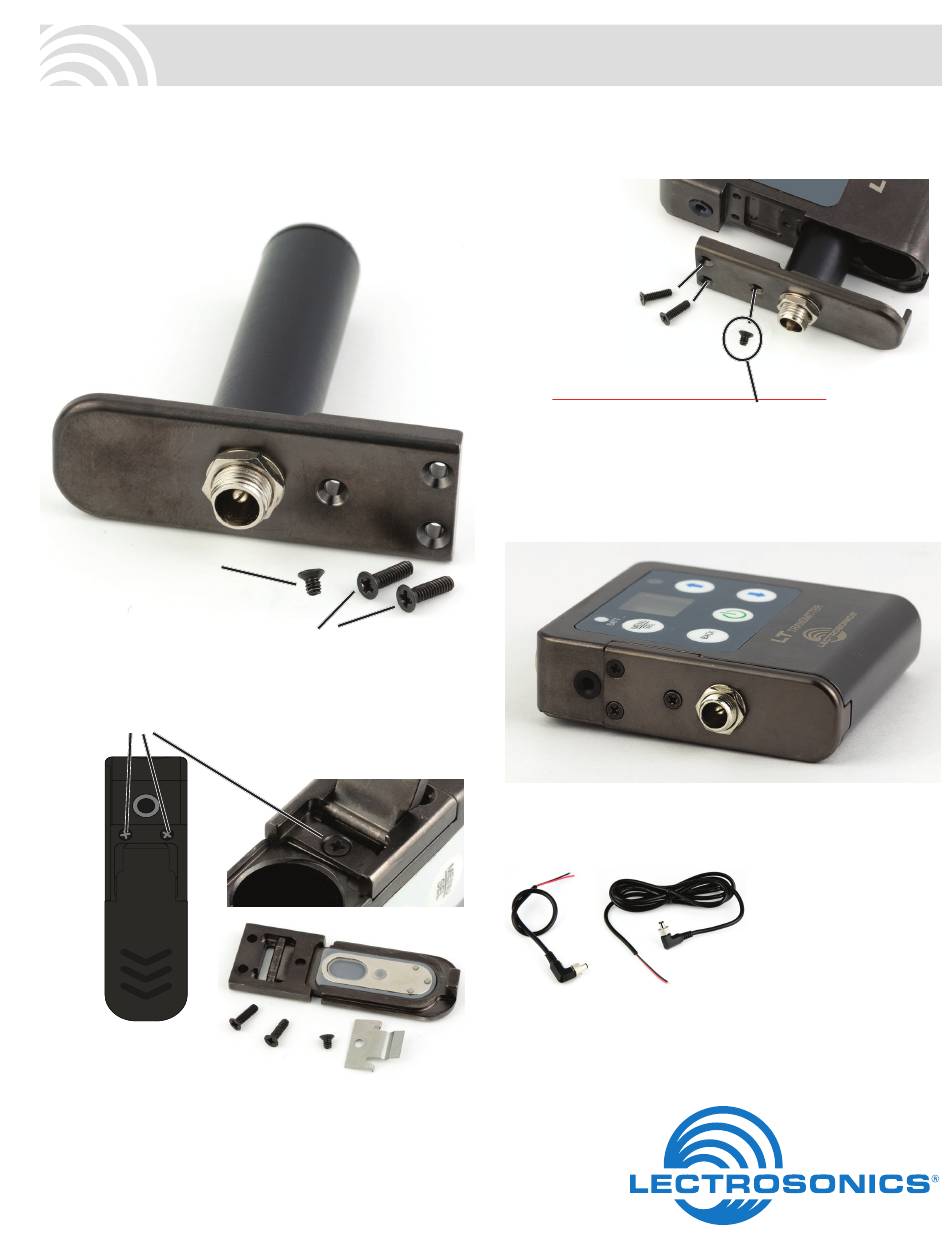

Removing the Battery Door
Remove these screws.
The battery door assembly includes the mechanical
parts shown above. Keep these parts with each other in
case you want to re-install the door later.
Save the door assembly parts
for re-installation later
Insert the battery eliminator as shown below and fasten
it with the supplied screws.
P/N 28623 (2-56 5/16)
CAUTION: Use only the shorter screw
P/N 28515 (2-56 1/8 in.) in the hole near
the connector. The longer screws may a
circuit board component.
Tighten all three screws snugly, but be careful not to
overtighten them and damage the threads.
Optional power cables:
P/N 21746 right angle, locking cable; 12 in. length
P/N 21747 right angle, locking cable; 6 ft. length
PS200A - 15" power cable, Hirose 4to DC locking con-
nector with .365 in (9.3mm) plug
PS2200A - power cable, 12", Hirose4 to dual LZR
PSLZRDUAL - LZR style plug to LZR style plug. 6ft long
TECHNICAL DATA
Rio Rancho, NM, USA
www.lectrosonics.com
