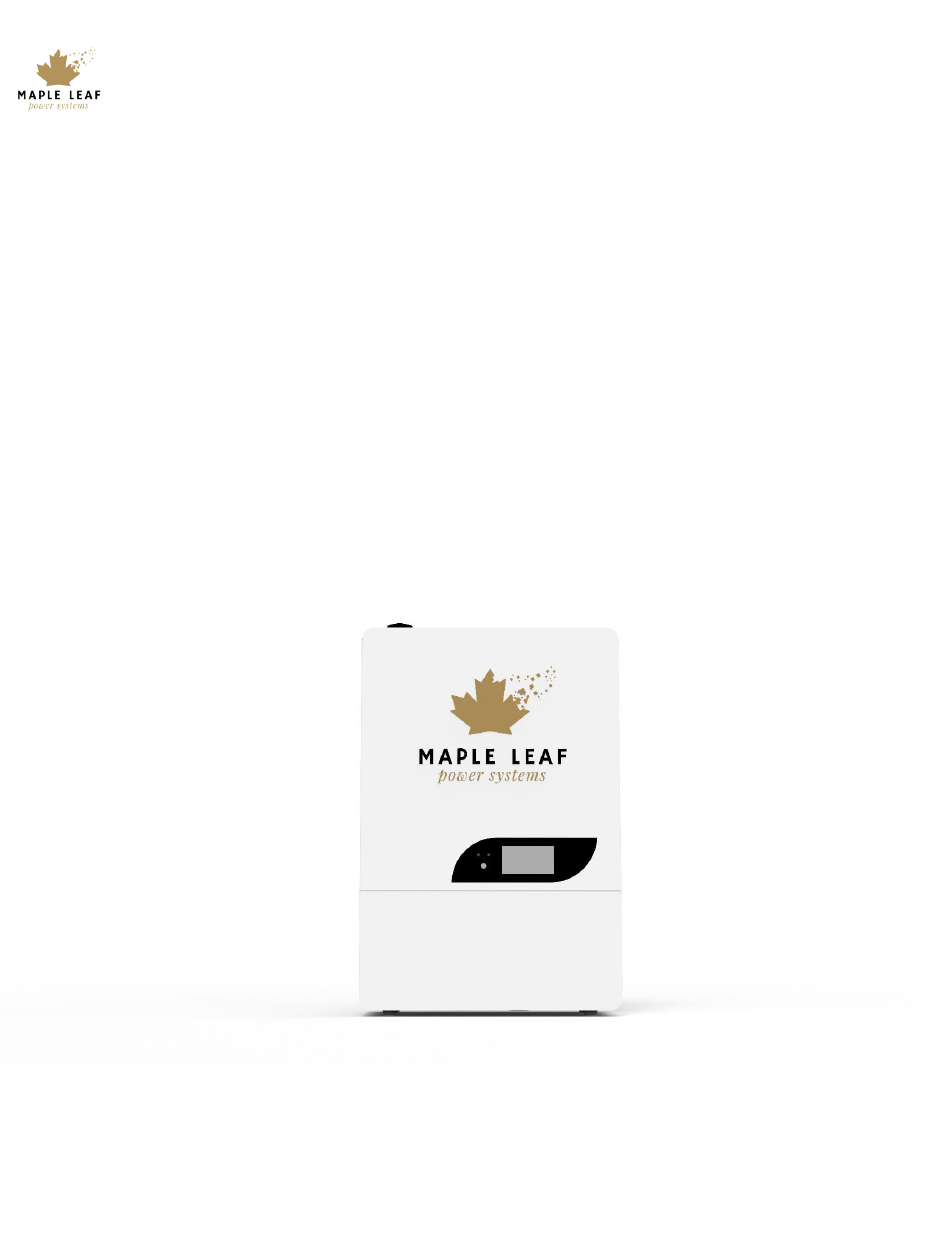

Page 1 MapleLeaf POWERWALL-51.2V100AH Updated: 2023-05-09 / 24...
Page 2: About This Product
About This Product The MAPLELEAF POWERWALL Series Battery uses the most environmentally friendly LiFEPO4 cells, which removes constraints on operating temperature and eliminates the risk of thermal runaway and fire. The built-in smart Battery Management System (BMS) integrates multiple safety concepts, including Overcharge and Over- discharge Protection, Temperature Observation, Overload Monitoring, and Cell Balancing.
Page 3: Table Of Contents
Content 1. Safety Attention ............................. 3 2. Product Introduction..........................4 2.1 Product Name ..........................4 2.2 Technical Parameter ........................4 2.3 Product pictures ..........................5 3. Storage & Transport ..........................6 4. Installation ............................. 8 4.1 Installation Preparation ........................8 4.2 Installation Steps ..........................
Page 4: Safety Attention
1. Safety Attention Improper operation could result in electrical shocks, burns, and other personal injuries, as well as equipment damage. Therefore, it is crucial to read the important security information and strictly adhere to all the safety rules outlined in this instruction manual. Below is a list of safety rules that must be followed when operating this product.
Page 5: Product Introduction
2. Product Introduction Product Name RS - W 51 XXX A - ML - 00 Label changes/software parameters Stands for MapleLeaf Version iteration updates material numbers (sorted alphabetically) Nominal Capacity XXXAh Nominal Voltage 51.2V Wall-mounted Residential Storage 2.2 Technical Parameter Item RS-W51100A Battery type...
Page 6: Product Pictures
Recommended floating charge 54.0V voltage End discharging voltage 43.2V IP rating IP55 Self-discharge rate (Sleep mode) Residualcapacity≤3%/month;≤20%/years Dimensions(W * H* D) in mm 454* 670 * 170 Battery module weight ~60.7kg operation temperature 0~45℃(32~113℉) Recommended operation 15-30℃(59~86℉) temperature Storage temperature for short time -10~45℃...
Page 7: Storage & Transport
3. Storage & Transport Storage： To ensure the proper functioning and longevity of the battery, it is important to prepare the right environment and charge it in a timely manner. Here are some guidelines to follow: • Store the battery in a dry, clean, well-ventilated and shaded warehouse. The storage temperature should be within the range of -10 to 30℃, and the relative humidity should be between 45% and 85%RH.
Page 8: Installation
4. Installation 4.1 Installation Preparation 1) Environment Requirement Application scenarios Residential energy storage systems Indoors or under a dark eave and place away Operating Environment from strong electromagnetic radiation Recommended salt spray An area 2km from the coast Operating Temperature 0~45℃...
Page 9 Modules communication cable 1pcs • Check the battery box for any signs of damage, such as cracks or dents. • Inspect the battery terminals and connections to ensure they are clean, free of dirt, fluids, and corrosion. • Verify that all battery cables and their connections are tight, intact, and not broken or frayed. •...
Page 10: Installation Steps
 This battery pack weighs about 61kg. To prevent personal injury, it is recommended to use proper lifting equipment during installation.  If the user notices any deformation of the battery pack shell during installation, they should stop the installation process and contact us immediately. ...
Page 11 1. Structure Installation 1) Install wall mounting bracket The MAPLELEAF POWERWALL series battery is designed to be wall-mounted during installation. The rack should be fixed onto the wall using anchor screws. For information on the weight and dimensions of the MAPLELEAF Lithium Battery, please refer to the product's data sheet. 2) Installation battery pack a) a) Use two people to lift the battery out of the wooden case.
Page 12 2. Cable Connection 1) Connecting the battery The battery terminals are located at the bottom of the front cover. Please ensure that the breaker on the right side of the rack is in the OFF position. Install the positive cable first and then the negative cable.
Page 13 2) Communication Port MAPLELEAF POWERWALL series battery has a self-managed Battery Management System (BMS). The Communication board has three ports which are designed to support Inverter RS 485 and CAN communication, battery parallel communication (see Parallel Connection). When batteries need to communicate in parallel, the user needs to set the battery address through the DIP switch, and the CAN communication port of the last battery needs to connect to the terminal resistor.
Page 14 4) Parallel Connection The following illustration shows how to connect multiple batteries in parallel. Please follow the procedure to parallel POWERWALL series batteries: Prepare communication cable. Each unit comes with 1pcs RJ45 cable (for inter- battery Parallel CAN port). Cables for communicating with the inverter are provided by the customer. If the cable is missing, please make sure the cable you purchase on the market meets the following standards.
Page 15 Confirm the Battery DC breaker is in the “OFF” position. Wire each battery’s Power bus to Inverter. And wire inverter’s cable to PV, Grid and Load. Use the RJ45 cables to connect the batteries’ Parallel CAN port, as illustrated in the chart below. Ensure that the communication port of the last terminal (N) is connected to 120Ω...
Page 16 5) Press the button on the front of each battery for 3+seconds one by one, until all batteries wake up. 6) Set the address of the Dial Switch. Dial Switch Module number Single module Parallel mode(Master) Parallel mode(Slave) Parallel mode(Slave) Parallel mode(Slave) Parallel mode(Slave) Parallel mode(Slave)
Page 17 NOTE!  If used for single battery without parallel, must set Address as 0.  When used for several batteries parallel, please set the master battery number as 1, and the other battery number as 2~14. 7) Touch the Upper computer to set Inverter as the following form. Inverter Setup Support Inverter Protocol Schneider Modbus, 19200bps...
Page 18 As the battery voltage increase by inverter, other battery join in to parallel one by one. After all normal batteries complete parallel, the parallel process end up, and recover normal request from inverter. 3. Wire the battery cables For connecting multiple units: Maintain the recommended distance among battery units’s side or wall- at least 12inches (300mm).
Page 19: Operation
4. System Commission If you only install single POWERWALL series battery, please follow the below steps to start up: a) Check system connection cables for correct polarity. b) Put the battery’s breaker on the “ON” position. c) Put inverter breaker in the “ON” position. d) Push the power button on the front of the unit for 3 seconds to turn on the battery LCD display.
Page 20: Discharging
5.3 Discharging  Do not discharge battery below operating voltage.  Do not discharge battery at rates greater than maximum continuous current.  Do not operate in conditions that will exceed the internal operating temperatures of the battery. 5.4 Parameter set up guide in Charger/Inverter Before commissioning the energy storage system, the appropriate controller and inverter settings must be programmed per the manufacturer’s recommendations.
Page 21: Protective Circuit Specification
6. Protective circuit specification 6.1 BMS alarm & protection parameter The Battery Management System (BMS) can monitor and optimized each single cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit, etc. Overall, the BMS helps to ensure safe and accurate operation.
Page 22 Charge over 55±3℃ Charge over temperature protection temperature Charge over temperature release 45±3℃ Discharge over temperature alarm 60±3℃ Discharge over temperature 65±3℃ protection Discharge over Discharge over temperature release 55±3℃ temperature Charge under temperature alarm 3±3℃ Charge low temperature Charge under temperature protection 0±3℃...
Page 23: Battery Information Display
6.2 Battery Information Display LCD display: Touch the power button and will automatically activate the LCD Screen. Supplementary instructions: Display Indicator Note Battery voltage Residual energy Current Negative value indicates discharging. power Positive value indicates charging. State of charge Cycle Numbers Battery temperature...
Page 24: Maintenance
OFF: Not connect to router, or battery is configured to router, but router connection fails; Rolling: One-click configuration, in this mode user can check battery status through local connections, can also configure the battery to connect to router; WIFI mark Flash: user can check the battery status through local connections;...
Page 25: Troubleshooting Under Other Situations
The possible error marks are as follows: Error signal Troubleshooting Reduce charging voltage or stop charging. Battery High-Voltage Low power, please charge immediately. Battery Low-voltage Stop charging or discharging until battery temperature fall Battery High-temperature below the recover temperature. Stop charging or discharging until battery temperature rise Battery Low-temperature above the recover temperature.
Page 26: Other Chemical Reaction
If the discharge time is much shorter than the normal after full charged, even battery is charged correctly, and this may indicate it is time to change the battery. Contact US Maple Leaf Power Systems. Web：www.MapleLeafPowerSystems.com. 25 / 24...
