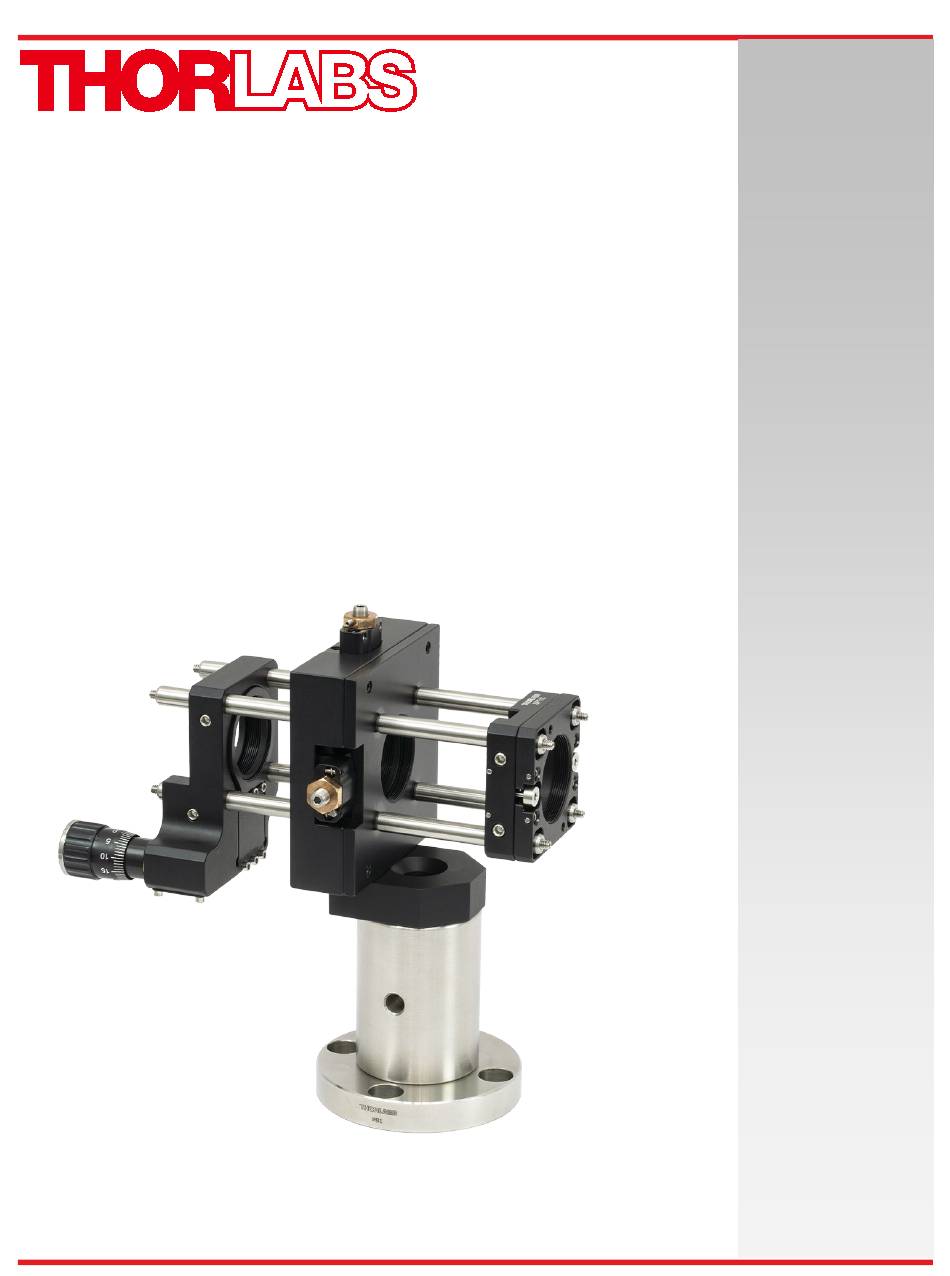

- Page 1 KT311(/M) Spatial Filter System User Guide...
-
Page 3: Table Of Contents
3.1. Partial Disassembly of the KT311(/M) ................. 3 3.2. Coarse Alignment of the Beam Path ................4 3.3. Placement of the KT311(/M) in the Optical Path ............4 3.4. Fine Alignment of the Optical Path................5 3.5. Installation of the Focusing Lens ................5 3.6. -
Page 4: Chapter 1 Warning Symbol Definitions
Spatial Filter System Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal Frame or Chassis Terminal... -
Page 5: Chapter 2 Safety
Spatial Filter System Chapter 2: Safety Chapter 2 Safety WARNING Never look directly into a laser. It is recommended that the laser power be limited to a few milliwatts during the alignment process. Page 2 TTN238234-D02... -
Page 6: Chapter 3 Operation Instructions
Alignment mirrors maybe purchased separately (see Section 3.7). Alignment of the spatial filter involves: stripping down the KT311(/M), coarse alignment of the beam to the table, placement of the KT311(/M) in the beam, fine alignment of the optical path, installation of the focusing lens, and installation and adjustment of the collimating lens. -
Page 7: Coarse Alignment Of The Beam Path
“B” to adjust the height of the laser beam so that it is 4.19" (105.6 mm) above the optical bench. At this point it is assumed that the laser beam is pointed in a direction that will allow the KT311(/M) to be inserted close (within a few inches) to the mirror mount. -
Page 8: Fine Alignment Of The Optical Path
Spatial Filter System Chapter 3: Operation Instructions 4. Once the stripped down KT311(/M) is in alignment, three table clamps should be used to secure the KT311(/M) in position. Thorlabs’ CL series table clamps are recommended. Check the alignment of the beam through the system to ensure movement of the KT311(/M) did not occur during clamping 5. -
Page 9: Installation And Adjustment Of The Collimating Optic
Spatial Filter System Chapter 3: Operation Instructions light will pass through the pinhole. The light passing through the pinhole will create a spot. This spot should be used as a guide to peak the laser with the XY translator. 3. Slide the Z translator until the beam is focused through the pinhole. Slowly lock each screw on the Z translator and peak the XY translator to maintain throughput. - Page 10 Use the alignment tools to locate the centers of the locations specified below. 1. Use Mirror “B” to carefully center the beam on the input of the KT311(/M) in both the horizontal and vertical planes. Note the position of the beam at the output. Is it high or low? Or is it to the right or left? 2.
-
Page 11: Chapter 4 Mechanical Drawings
Spatial Filter System Chapter 4: Mechanical Drawings Chapter 4 Mechanical Drawings Figure 5 KT311 Mechanical Drawing Figure 6 KT311/M Mechanical Drawing Page 8 TTN238234-D02... -
Page 12: Chapter 5 Regulatory
Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 13: Chapter 6 Thorlabs Worldwide Contacts
Spatial Filter System Chapter 6: Thorlabs Worldwide Contacts Chapter 6 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to-date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. - Page 14 www.thorlabs.com...
