Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach.
A. Function
1.
Random/Learning code.
Every transmitter can control up to 4 channels (1ON, 1OFF, 2ON, 2OFF...etc). each channel can control one
2.
certain receiver
3.
Receiver has a built-in memory, it can remember the data for 10 years.

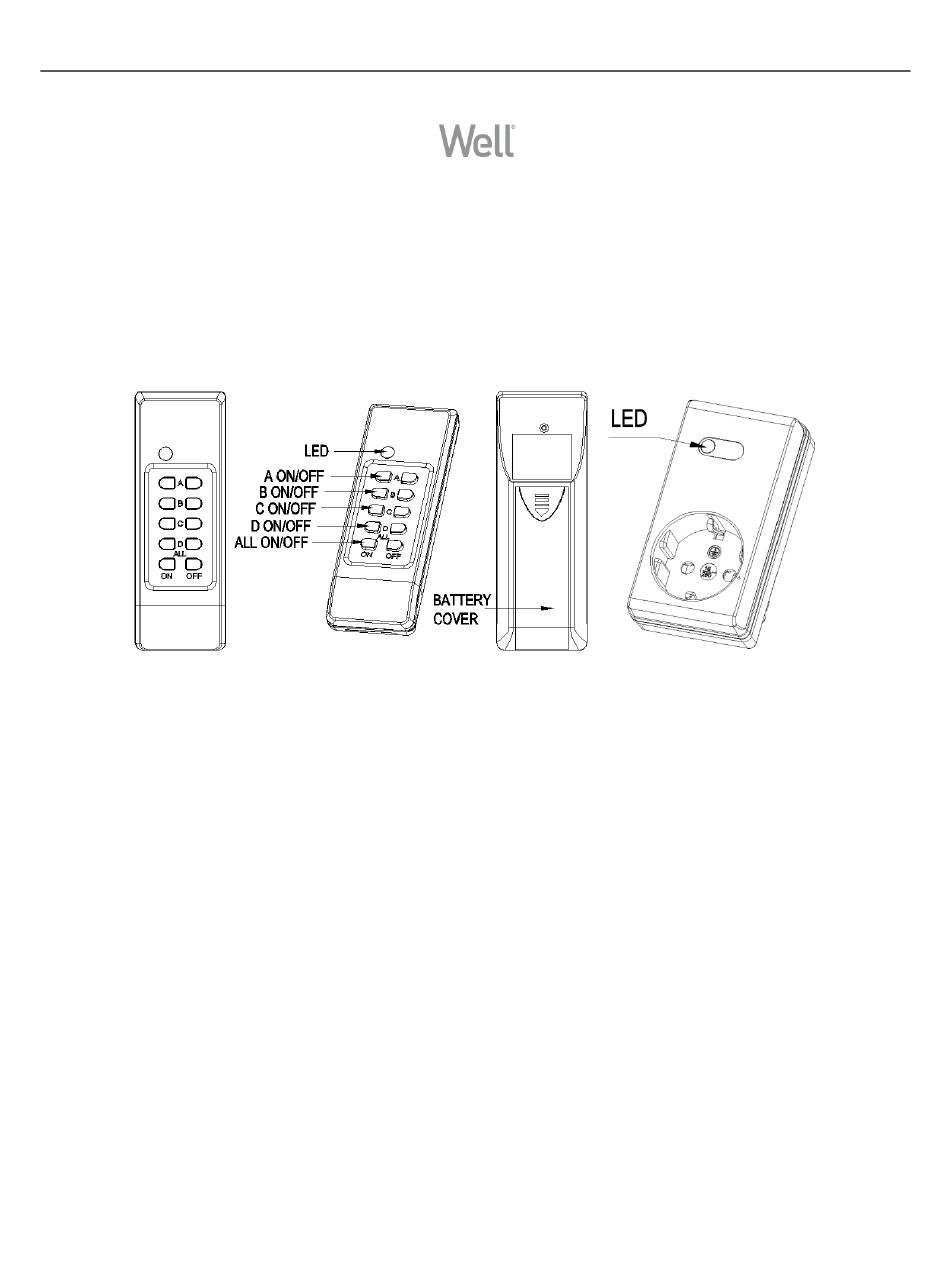

B. Diagram
C. Operation
1.
Open battery cover of Transmitter and put 2 AAA 1.5V battery in it. Then press any ON/OFF channel to check
whether it can work. If LED indicator of transmitter turns on, it means this Transmitter works well.
2.
Put Receiver into outlet, LED indicator shows slow flashing. Enter into channel selection mode.
Note: Receiver will exit channel selection mode after 29 seconds without any operation.
Press Transmitter's A ON, B ON, C ON or D ON to match with Receiver. Once successfully, LED indicator
3.
stops slow flashing, then you can turn this Receiver ON/OFF by pressing selected ON/OFF channel.
4.
Clean selected channel: Pull out Receiver and put in (LED indicator shows slow flashing as channel selection
mode), then press and hold OFF key of selected channel until LED indicator shows fast flashing (3-4
seconds), which means selected ON/OFF channel is cleaned. After that, Receiver returns to channel
selection mode. Total time is 29 seconds.
5. Clean all selected channels: Pull out Receiver and put in (LED indicator shows slow flashing as channel
selection mode), then press and hold OFF key of ALL ON/OFF channel until LED indicator shows fast flashing
(3-4 seconds), which means all selected ON/OFF channels are cleaned. After that, the LED indicator is off.
D. Specification
1. Power supply: 230VAC, 50Hz,
2. Max. Load: 16(2)A, 3600W
3. Radio Frequency: 433.92MHz
4. Range: Typically about 30m in open area.
5. Battery: 2 pc AAA 1.5V
6. Transmitter duty cycle<10%
7. Receiver category: Class 2
8. The maximum radiated power of transmitter is less than 10mW
The adaptor shall be installed near the equipment and shall be easily accessible
For Class I appliances. Pollution degree 2. Rated impulse withstand voltage: 2500V. Duty-type: S1. Single pole,
single load. 1E4. Micro-disconnection. PTI175V. Level 3.
USER'S MANUAL
WIRELESS REMOTE CONTROLLED ADAPTOR
Code: ELAD-SH/RC-WL
