SECTION 508-354-300

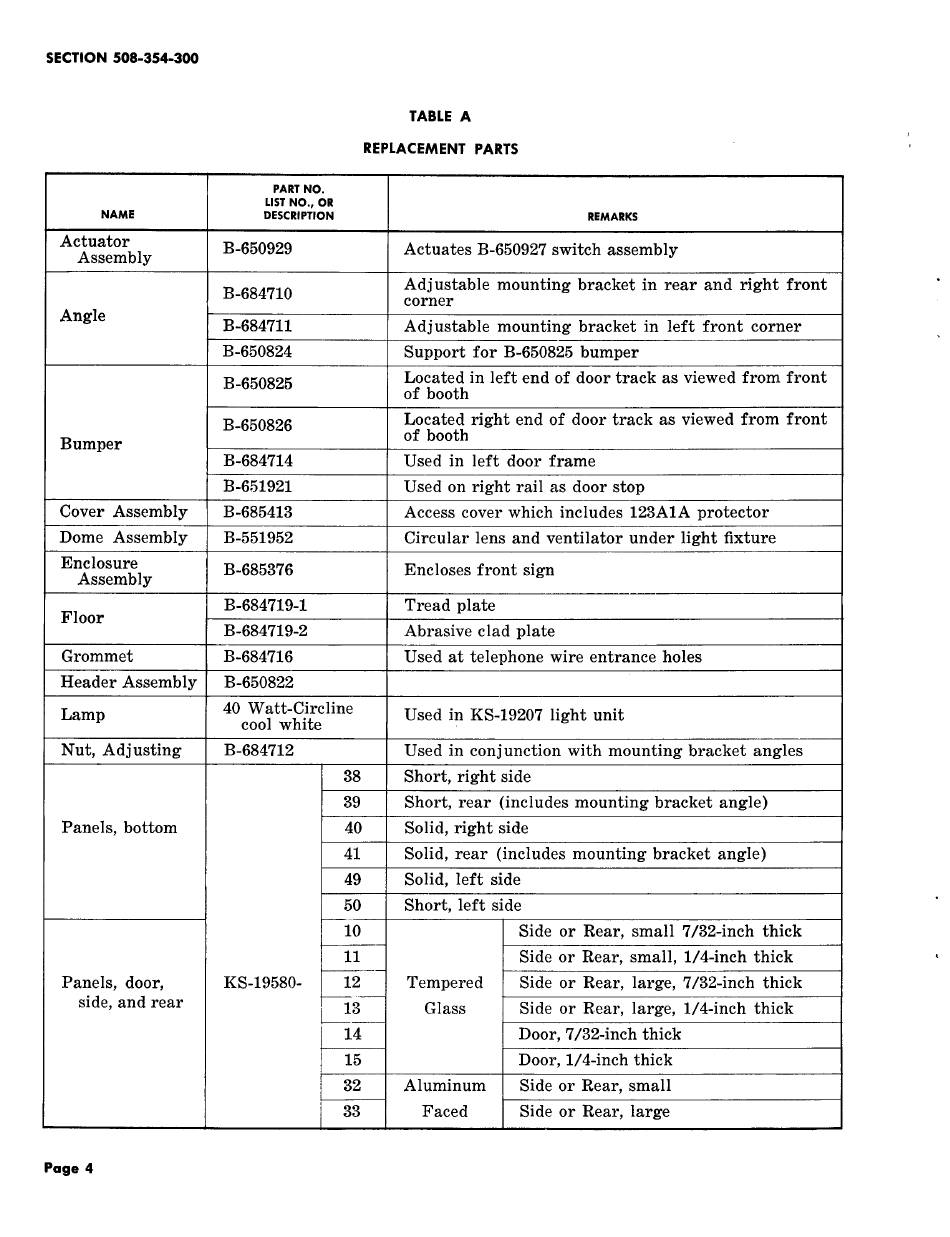

TABLE A
REPLACEMENT PARTS
PART NO.
LIST NO., OR
NAME
DESCRIPTION
REMARKS
Actuator
B-650929
Actuates B-650927 switch assembly
Assembly
B-684710
Adjustable mounting bracket in rear and right front
corner
Angle
B-684711 Adjustable mounting bracket in left front corner
B-650824
Support for B-650825 bumper
B-650825
Located in left end of door track as viewed from front
of booth
B-650826
Located right end of door track as viewed from front
Bumper
of booth
B-684714 Used in left door frame
B-651921 Used on right rail as door stop
Cover Assembly
B-685413 Access cover which includes 123A1A protector
Dome Assembly B-551952
Circular lens and ventilator under light fixture
Enclosure
B-685376 Encloses front sign
Assembly
Floor
B-684719-1 Tread plate
B-684719-2 Abrasive clad plate
Grommet
B-684716 Used at telephone wire entrance holes
Header Assembly
B-650822
Lamp
40 Watt-Circline
Used in KS-19207 light unit
cool white
Nut, Adjusting B-684712 Used in conjunction with mounting bracket angles
38 Short, right side
39
Short, rear (includes mounting bracket angle)
Panels, bottom 40 Solid, right side
41 Solid, rear (includes mounting bracket angle)
49 Solid, left side
50
Short, left side
10
Side or Rear, small 7/32-inch thick
11 Side or Rear, small, 1/4-inch thick
- - -
Panels, door, KS-19580-
12
Tempered Side or Rear, large, 7/32-inch thick
side, and rear
' 13
~-
Glass Side or R.ear, large, 1/4-inch thick
I 14 Door, 7/32-inch thick
I
:
15 Door, 1/4-inch thick
!
I
32 Aluminum Side or Rear, small
I
33 Faced Side or Rear, large
i
Page 4
