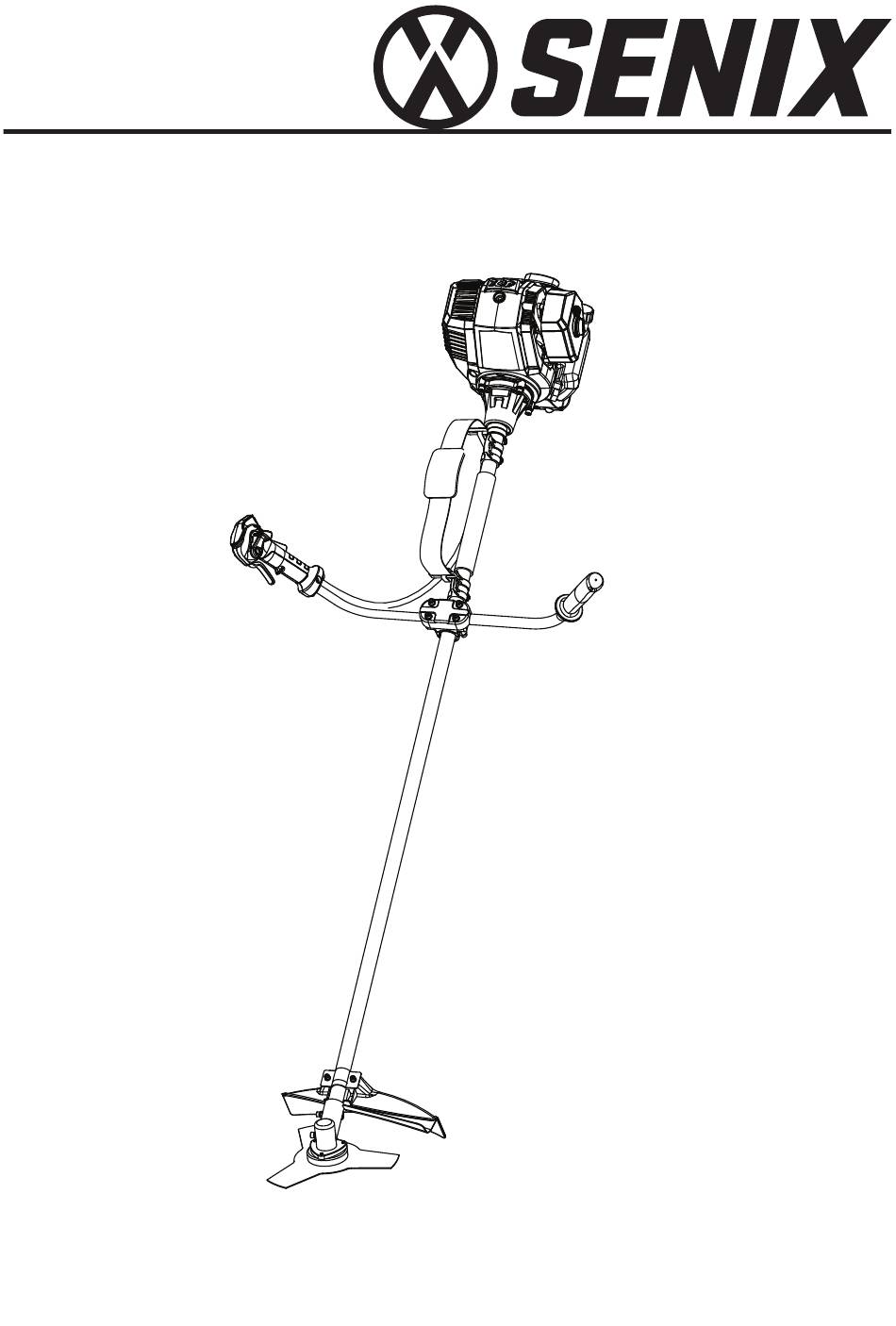

- Page 1 Model: GTBCU4QL-H Operator’s manual 46CC 4QL Brush Cutter For customer service please find all information on www.senixtools.com CAUTION: BEFORE USING THIS PRODUCT, READ THIS MANUAL AND FOLLOW ALL ITS SAFETY RULES AND OPERATING INSTRUCTIONS. ORIGINAL INSTRUCTIONS...
- Page 4 0.60 mm-0.80 mm 0.025 in.-0.31 in.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Risk of flying objects or debris. Be aware of that there is a risk of flying objects SAFETY & INTERNATIONAL SYMBOLS ......5 and/or debris when using the machine. SAFETY INSTRUCTIONS...........7 Keep bystanders away. KNOW YOUR UNIT............15 SPECIFICATIONS*............15 ASSEMBLY.................15 OIL AND FUEL..............17 Beware of foot injury by cutting attachment. -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS WARNING symbol CAN result in serious injury to WARNING: yourself or to others. Signals an EXTREME Signals a MODERATE hazard. hazard. Failure to obey a safety Failure to obey a safety DANGER symbol WILL result CAUTION symbol MAY result in serious injury or death to in property damage or injury yourself or to others. -
Page 7: Safety Warnings
can result in serious injury to the recommended that legs and feet be covered to protect from operator and/or bystanders. flying debris during operation. Inspect the entire unit for loose SAFETY WARNINGS parts (nuts, bolts, screws, WARNING: etc.) and any damage before Read all safety warnings start and operation. - Page 8 13. Never start or run the product other unstable footing location. inside a closed room or 21. Keep hands and feet a safe building. Fumes from the distance from the nylon cutting line while unit is in use. exhaust contain dangerous 22.
- Page 9 down. Never refuel when the stop operation immediately engine is running or hot. When and check the unit carefully. gasoline spills, be sure to wipe If necessary, have the unit it up completely and dispose of serviced by customer support. those materials before starting Never continue to operate a unit the engine.
- Page 10 42. Make periodic inspections are harmful to the operator and to ensure safe and efficient people around the unit. operation. For a thorough 52. Make sure that the fuel inspection of your unit, contact evaporation and exhaust gases customer support. will not drift to the face of 43.
- Page 11 using the equipment. drugs. • Never use the equipment without • Use the equipment only when the the exhaust pipe. guard hood is fitted and in good • Do not touch the exhaust pipe working order. with your hands or body. Hold the •...
-
Page 12: Vibration And Noise Reduction
or legs. • Keep a distance of 15 meters • Keep bystanders and animals at between yourself and other people least 15 m away from where you or animals. are working. If the equipment strikes a foreign body, stop the engine immediately and wait for the blade to come to a standstill. -
Page 13: Intended Use
account of all parts of the WARNING: operating cycle such as The vibration emission value the times when the tool is during actual use of the switched off and when it is power tool can differ from the running idle in addition to the declared value depending trigger time.) Note The use on the ways in which the tool... - Page 14 dust mask is not worn. • Damage to hearing if effective hearing protection is not worn. • Health defects resulting from vibration emission if the unit is being used over long periods of time or not adequately managed and properly maintained. WARNING: This unit produces an electromagnetic field during...
-
Page 15: Know Your Unit
Spark plug gap 0.6-0.8mm 3. The scope of delivery varies depending on the country and purchased variant: Model of GTBCU4QL-H. Maximum engine power, in 4. If you find that parts are missing or show damage do 1.4 kW accordance with ISO 8893 not use the product but contact your dealer. -
Page 16: Installing The Handle
2. Insert the screw (1) and tighten until the shield cause premature engine wear and failure. component (2) and the cutting head shield (3) are firmly in ADDING OIL: INITIAL USE place (Fig. 2). INSTALLING CUTTING WARNING: BLADE MODEL Attempting to start the engine before it has been properly filled with lubricant will result in equipment failure not covered by the warranty. -
Page 17: Operation
Always wear heavy, long pants, boots, gloves, and a long- fuel additives directly to the unit’s fuel tank. sleeve shirt. Do not wear loose clothing, jewelry, short pants, sandals, or go barefoot. secure hair so it is above SWITCH ON AND OFF shoulder level. -
Page 18: Tips For Best Results
• Gently push down fully on the fuel lever. Always cut at full maintenance. speed! There are no user serviceable parts in your power tool. Before and after each use, check the product and accessories (or attachments) for wear and damage. If TIPS FOR BEST RESULTS required, exchange them for new ones as described in this •... -
Page 19: Changing The Oil
6. Reinstall the oil fill plug. FREQUENCY MAINTENANCE REQUIRED CHANGING THE OIL • Clean the air filter. WARNING: Every 10 hours • Refer to Maintaining the Air Filter. Old engine oil is considered special waste and has to be disposed according to your local •... -
Page 20: Adjusting The Idle Speed
Tighten the cover screw to secure the air filter cover (Fig. fouled or dirty, replace it with replacement part #AM5C or an 13). equivalent spark plug. 4. Use a feeler gauge to set the air gap at 0.6 mm - 0.8 mm NOTE: (0.025 in. -
Page 21: Troubleshooting
the spark plug. Drain the fuel 2. Change the oil. Refer to Changing the Oil. The fuel is old tank and add (over 30 days) fresh fuel NOTE: THE ENGINE Clean or LACKS POWER OR The air filter is replace the air Do not use fuel that has been stored for more STALLS dirty...
