Velociradar
tm

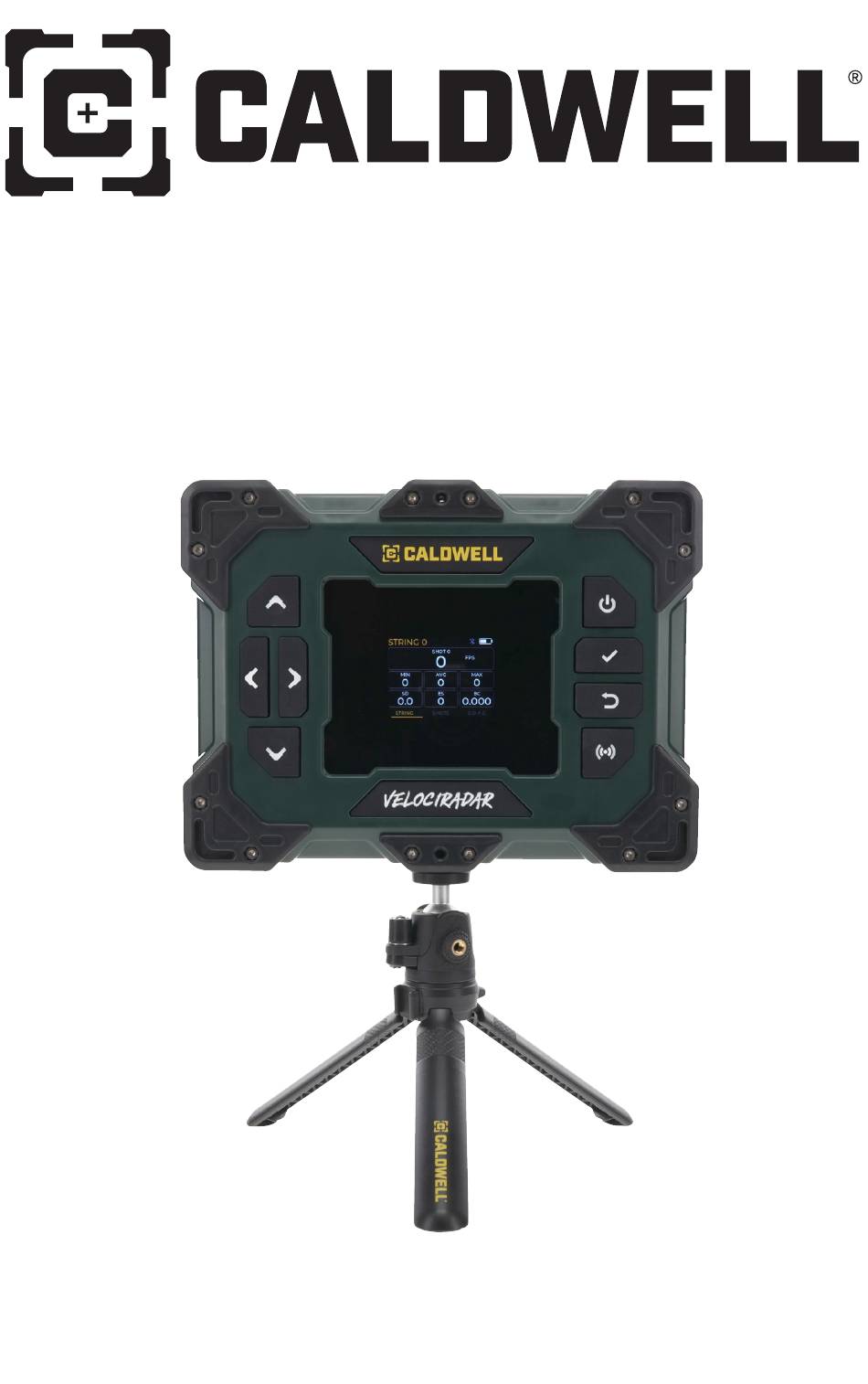

INSTRUCTIONS & SAFETY INFORMATION
Please visit www.caldwellshooting.com/warranty or contact Customer Service at
1-833-784-5520 for complete warranty terms and conditions.
For purchasing replacement parts, please contact Caldwell Customer Service
NOT WARRANTED AGAINST MISUSE, ABUSE, OR COMMERCIAL USE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Caldwell VELOCIRADAR 1134904 and is the answer not in the manual?

Questions and answers

Summary of Contents for American Outdoor Caldwell VELOCIRADAR 1134904

  • Page 1 Velociradar INSTRUCTIONS & SAFETY INFORMATION Please visit www.caldwellshooting.com/warranty or contact Customer Service at 1-833-784-5520 for complete warranty terms and conditions. For purchasing replacement parts, please contact Caldwell Customer Service NOT WARRANTED AGAINST MISUSE, ABUSE, OR COMMERCIAL USE.
  • Page 2 CONTENTS Velociradar Chronograph Ball Head Tripod Recoil Trigger USB-C Charging Cable...

  • Page 3: Safety And Warnings

    SAFETY AND WARNINGS Read thoroughly all directions and safety instructions included in the package. Failure to comply may result in an unsafe firearm condition that may cause property damage, person- al injury or death. WARNING: Target must have a safe backstop. Always follow all applicable safety rules while using the chronograph, including but not limited to: Firearm and shooting safety rules Airgun and paintball gun safety rules...

  • Page 4: Powering On/Off

    OVERVIEW Directional Buttons – Press to navigate menus. 2. Power Button – Press to turn on and off Velociradar. 3. Select Button – Press to select options and enter menus. 4. Back Button – Press to undo and exit menus. 5.

  • Page 5: Operation

    OPERATION The Velociradar Chronograph captures advanced ballistic data safely from behind the firing line. It can be set up near the firearm using the included ball head tripod and aimed using the integral peep sight. The radar is activated using the internal acoustic trigger (using muzzle blast) or by using the external recoil trigger (included), securely attached to the firearm or bow.

  • Page 6: Setup Tips

    SETUP TIPS Place 1” - 12” apart The Velociradar measures the speed and distance of the projectile while it is in the radar beam. For reliable measurement: The Velociradar should be as close to the muzzle or release point without being in danger of impact or excessive muzzle blast.
  • Page 7 USING THE PEEP SIGHT The integrated Peep Sight allows for easy aiming of the Velociradar. To use the Peep Sight: Start with the Velociradar mounted to a tripod and in the position it will be used from. 2. First, find the sight picture by holding your eye a few inches away from the Peep Sight.

  • Page 8: Smart Phone Connection

    RECOIL TRIGGER ATTACHMENT The Recoil Trigger can be used with rifles, shotguns, handguns, bows, and crossbows. In most applications it is best to securely strap the trigger to a non- moving part of the firearm or bow such as the stock, scope, grip, or riser. In the case of smaller handguns, it may be best to hold the trigger between your palm and the grip.
  • Page 9 TROUBLESHOOTING For additional troubleshooting information, please call Customer Service or visit caldwellshooting.com. ISSUE: THE RADAR DIDN’T TRIGGER Trigger Method Selection: • Check that the correct trigger method (recoil or acoustic) is selected in the settings menu of the Velociradar. • If using the recoil trigger, ensure it is securely attached to the firearm or bow and that there is sufficient recoil to activate the trigger.

  • Page 10: Firmware Updates

    FIRMWARE UPDATES Firmware updates can be found in the Caldwell App and applied to your connected Velociradar. Follow the instructions in the app. In order to perform a firmware update on the device or check for a firmware update you must navigate to the Devices tab > select your device > settings icon in the top right hand corner >...
  • Page 11 IC SAR INFORMATION STATEMENT Your Velociradar is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Innovation, Science and Economic Development Canada of the Canada Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population.

  • Page 12: Environmentally Safe Battery Disposal

    BATTERIES This product uses Lithium-Ion batteries. Misuse of batteries could cause a leak, rupture or other trouble. When throwing used batteries away, follow the disposal instructions indicated on the batteries and the local disposal laws. Do not heat or disassemble batteries. Do not put in fire or water.
  • Page 13 DÉCLARATION D’INFORMATION SUR LE SAR D’ IC Votre vélociradar est un émetteur et récepteur radio. Il est conçu et fabriqué pour ne pas dépasser les limites d’émissions d’exposition à l’énergie des radiofréquences (RF) établies par Innovation, sciences et développement économique Canada du gouvernement du Canada.
  • Page 14 Turn on and enter the home screen Steps for viewing E-Label: Step1: Select to SETTINGS Step2: Select to FCC INFO ©2024 AOB PRODUCTS COMPANY | https://www.caldwellshooting.com Product: 1134904 | Instructions: 1184286 | VER. 001...
