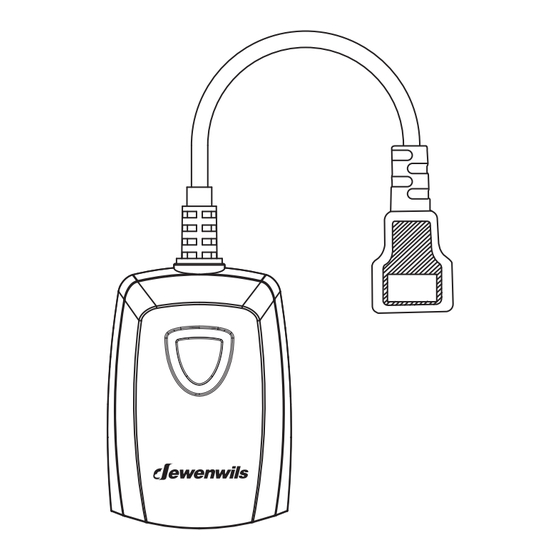

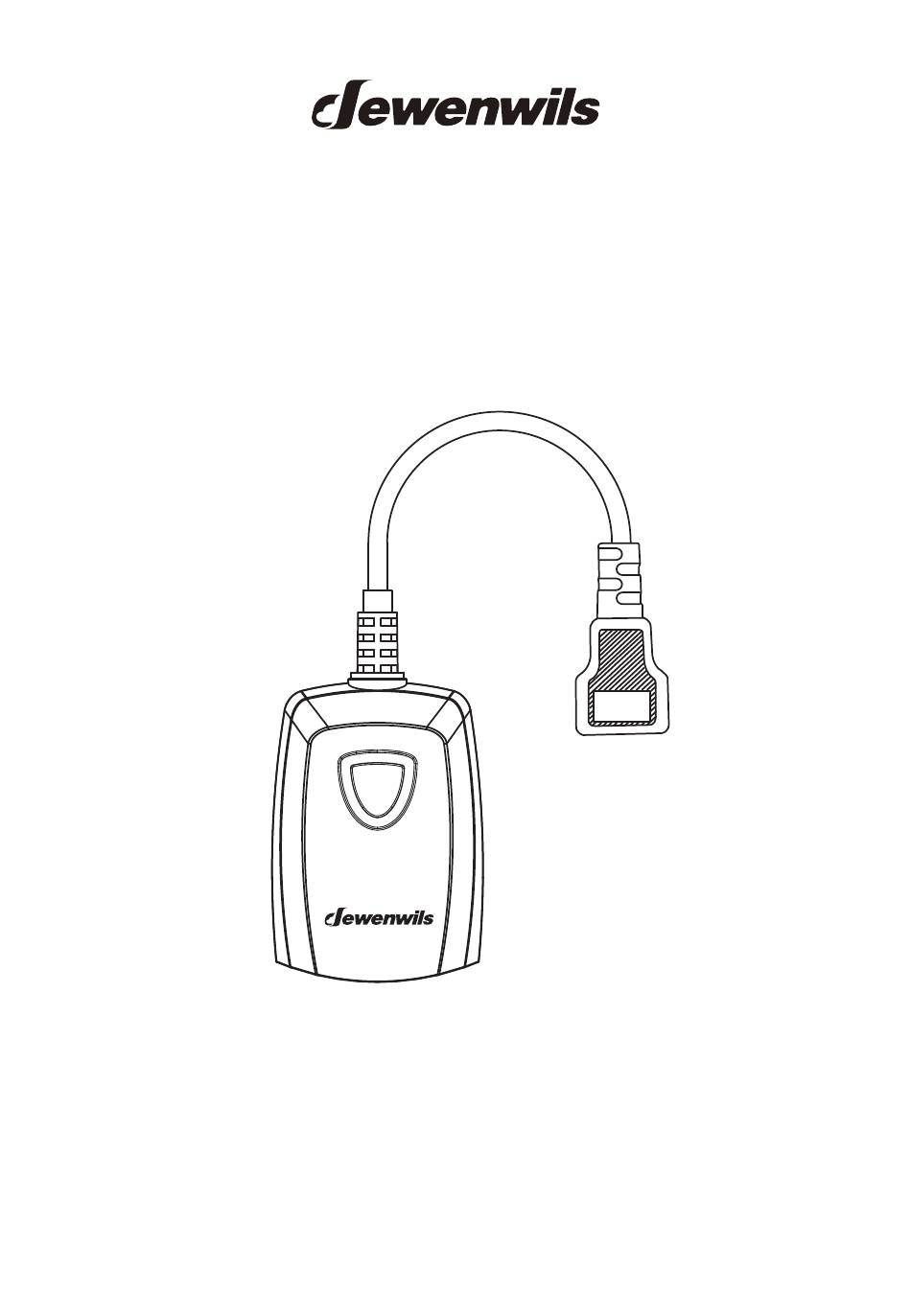

- Page 1 Outdoor Remote Control Outlet [Instruction Manual] Please pay attention to the warning signs Read the instructions with caution before operating and keep it properly V40312...
-
Page 2: Product Layout
Warning: To reduce the risk of fire, electric shock or personal injury, please strictly follow the instructions. 1. To prevent water immersion, the outlet must be mounted in a vertical position with the outlets facing downward and at least 2ft above the ground level. - Page 3 Indicator Indicator Handheld Remote Control Transmitter Indicator T urn o ff Turn on Indicator Wall Remote Control Transmitter...
- Page 4 Operating Instructions Notes: The receiver must be located within 100 feet of the remote transmitter. Actual functional range may be affected by the following factors: weather, radio frequency interference, low remote battery, and obstructions between the transmitter and receiver. 1. Remove the isolation tap in the battery compartment on the transmitter. 2.
- Page 5 Way2 2.Install Wall Plate Way1: Secure the lower housing of the wall switch to the wall using the provided mounting screws. Way2: Secure the lower housing of the wall switch inside the wall box using the provided mounting screws. 3.Attach the upper shell to the lower shell. 4.Attach the transmitter to the base.
- Page 6 5.Press the ON/OFF button on the wall switch remote control to turn the receiver on and off. Programming the Outlets Note: The transmitter and receiver have been pre-programmed for immediate use, but the configuration can be customized to meet your needs. To program a remote transmitter and receiver: 1.
-
Page 7: Replacing The Battery
No Interference Remote control outlets adopt variable learning codes technology.The codes will be changed each time after re-programming. If this remote control outlet happens to be in the same channels with other RF remote devices, just re-program it and the interference will be eliminated. Replacing the battery If you find the receiver works abnormally or the indicator on the remote control becomes dim, please replace the battery. - Page 8 ·COMPATIBLE BATTERY TYPE CR2032 LITHIUM BATTERY. ·NOMINAL BATTERY VOLTAGE 3V. ·NON-RECHARGEABLE BATTERIES ARE NOTTO BE RECHARGED. ·DO NOTFORCE DISCHARGE, RECHARGE, DISASSEMBLE, HEATABOVE(MANUFACTURER'S SPECIFIED TEMPERATURE RATING) OR INCINERATE.DOING SO MAY RESULTDUE TO VENTING, LEAKAGE OR EXPLOSION RESULTING IN CHEMICAL BURNS. · ENSURE THE BATTERIES ARE INSTALLED CORRECTLY ACCORDING TO POLARITY (+AND-).
-
Page 9: Troubleshooting
Troubleshooting In the case that one receiver is unresponsive to the remote control, please follow the steps below to resolve the issue: 1. If the wire switch receiver is unresponsive to the remote control, please refer to the "Canceling Programming" and "Programming the Receiver" sections in the manual to reprogram the receiver. - Page 10 the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 11: One Year Limited Warranty
One Year Limited Warranty Supported by our professional R&D team and QC team, we provide One Year Warranty for materials and workmanship from the purchase date. Please note that the warranty does not cover damage caused by personal misuse or improper installation. Please attatch your Order ID and Name so that our dedicated customer service team can help you better.
