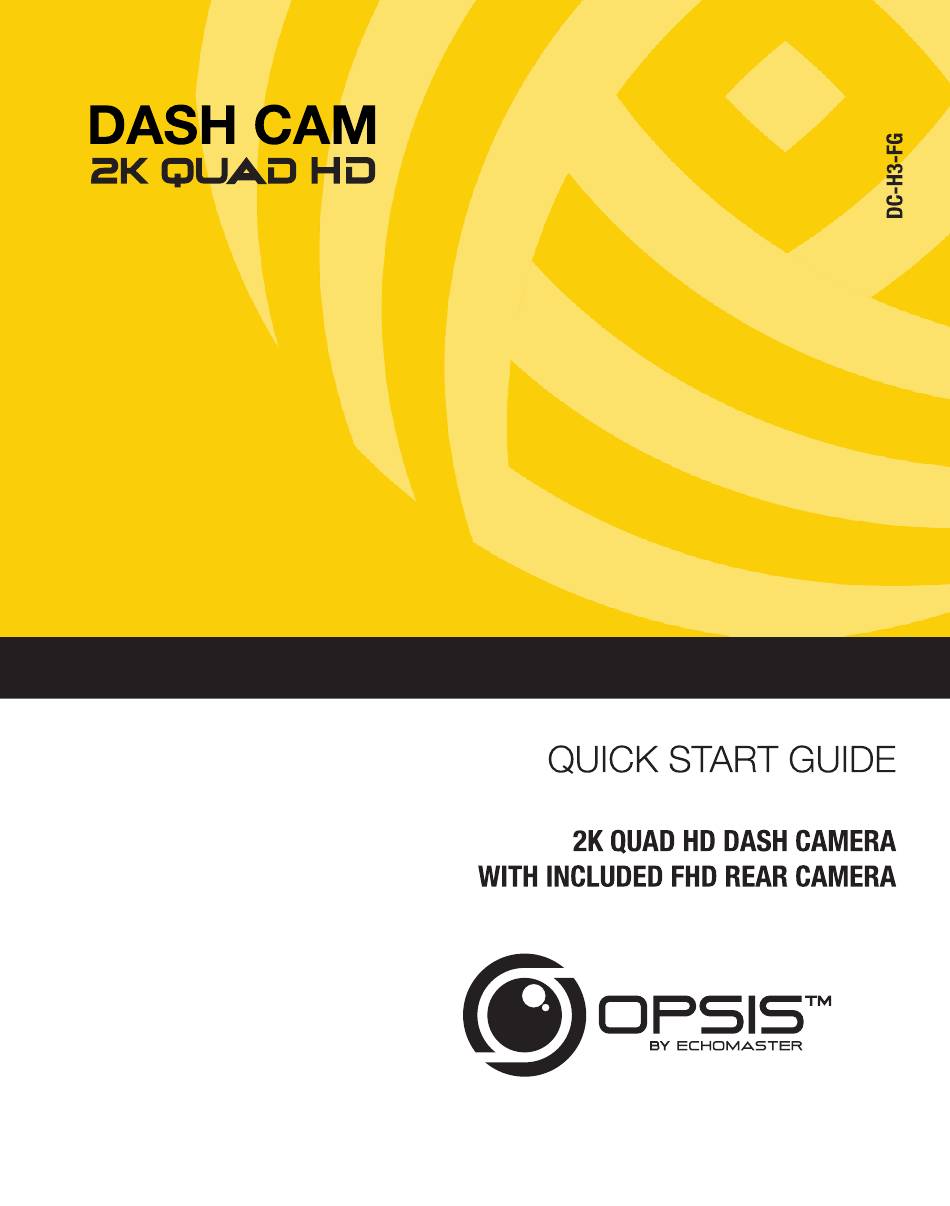

Echomaster OPSIS DC-H3-FG Quick Start Manual

Universal 2k quad hd front and fhd rear dash camera
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPSIS DC-H3-FG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Echomaster OPSIS DC-H3-FG

Summary of Contents for Echomaster OPSIS DC-H3-FG

  • Page 2 Security LED 2CH Output Port (to front camera)

  • Page 3: Mounting Holes

    Format Button Manual Record Button Speaker GPS LED Recording LED Wi-Fi LED Wi-Fi Button Audio Recording Button Power Button Mounting Holes Memory Card Slot Mounting Bracket DC-IN Power Port Reset Button 2CH Input Port (for rear camera)
  • Page 4 LED Indicator Status Definition Solid Blue LED/No LED GPS connected/GPS not connected Flashing Red LED/No LED Recording/No recording Flashing Blue LED/ Searching for Hot Spot/ Wi-Fi Solid Blue LED Connected to Hot Spot Flashing Green LED / Searching for Wi-Fi/ Solid Green LED Connected to Wi-Fi <...
  • Page 6 Records videos in 1-minute segments Continuous Recording (dual channels are supported for recording the front and rear view) Records 10 seconds before and after the incident Incident Recording (total 20 seconds) Records from 10 seconds before and 50 seconds Manual Recording after manually starting the recording (total 1 minute) Parking Mode...
  • Page 10 79.0 x 70.4 x 34.7 mm / 106.5 g Dimensions/Weight 3.11 x 2.77 x 1.36 inch / 0.23 lb microSD memory card Memory 128GB max (UHS-I) Camera Sensor 5.14 Megapixel, 1/2.8” Sony STARVIS Viewing Angle (lens) Approximately 140° (diagonally) Video QHD (2560 x 1440) / H.264 / file extension: MP4 Frame Rate Maximum 30 fps...
  • Page 11 60.0 x 25.0 x 33.7 mm / 23.7 g Dimensions/Weight 2.36 x 0.98 x 1.32 inch / 0.052 lb Camera Sensor 2.0 Megapixel, 1/2.9” Viewing Angle (lens) Approximately 130° (diagonally) Video FHD (1920 x 1080) / H.264 / file extension: MP4 Frame Rate Maximum 30 fps LED Indicator...
  • Page 16 Security LED 2CH Output Port (to front camera)

  • Page 17: Mounting Holes

    Format Button Manual Record Button Speaker GPS LED Recording LED Wi-Fi LED Wi-Fi Button Audio Recording Button Power Button Mounting Holes Memory Card Slot Mounting Bracket DC-IN Power Port Reset Button 2CH Input Port (for rear camera)
  • Page 18 Indicador LED Estatus Definición LED azul sólido/Sin LED GPS conectado/GPS desconectado GRABAR LED rojo intermitente/Sin LED Grabar/No grabar LED azul intermitente/ Búsqueda de punto de conexión/ Wi-Fi LED azul sólido Conectado a punto conexión LED verde intermitente/ Búsqueda de Wi-Fi/ LED verde sólido Conectado a Wi-Fi <...
  • Page 20 Graba videos en segmentos de 1 minuto Grabación continua (admite dos canales para grabar la vista frontal y trasera) Grabación de Graba 10 segundos antes y después del incidente incidentes (total 20 segundos) Graba desde 10 segundos antes y 50 segundos Grabación manual después de iniciar la grabación manualmente (total 1 minuto)
  • Page 24 79.0 x 70.4 x 34.7 mm / 106.5 g Dimensiones/Peso 3.11 x 2.77 x 1.36 pulgadas / 0.23 lb Tarjeta de memoria microSD Memoria 128GB max (UHS-I) Sensor de la cámara Sony STARVIS de 5.14 megapíxeles y 1/2.8” Ángulo de visión (lente) Aproximadamente 140°...
  • Page 25 60.0 x 25.0 x 33.7 mm / 23.7 g Dimensiones/Peso 2.36 x 0.98 x 1.32 pulgadas / 0.052 lb Sensor de la cámara 2.0 megapixeles, 1/2.9” Ángulo de visión (lente) Aproximadamente 130° (en diagonal) Video FHD (1920 x 1080) / H. 264 / extensión de archivo: MP4 Velocidad de fotogramas Máximo 30 fps Indicador LED...
  • Page 30 Security LED 2CH Output Port (to front camera)
  • Page 31 Format Button Manual Record Button Speaker GPS LED Recording LED Wi-Fi LED Wi-Fi Button Audio Recording Button Power Button Mounting Holes Memory Card Slot Mounting Bracket Reset Button DC-IN Power Port 2CH Input Port (for rear camera)
  • Page 32 Indicateur DEL État Définition DEL bleue fixe/absence de DEL GPS connecté/GPS non connecté DEL rouge clignotante/Aucune DEL Enregistrement/Pas d’enregistrement DEL bleue clignotante/ DEL Recherche d’un point d’accès à l’internet/ Wi-Fi bleue fixe Connexion à un point d’accès à l’internet DEL verte clignotante/ DEL Recherche du wifi/connectée au wifi verte fixe <...
  • Page 34 Enregistrement Enregistrement de vidéos par segments d’une minute (deux canaux continu sont pris en charge pour l’enregistrement de la vue avant et arrière) Enregistrement Enregistrements 10 secondes avant et après l’incident d’incidents (20 secondes au total) Enregistrement Enregistrements à partir de 10 secondes avant et 50 secondes manuel après le démarrage manuel de l’enregistrement (1 minute au total) Enregistrement en...
  • Page 38 79,0 x 70,4 x 34,7 mm / 106,5 g Dimensions/Poids 3,11 x 2,77 x 1,36 pouce / 0,23 lb Mémoire Carte mémoire microSD 128GB max (UHS-I) Capteur de la caméra 5,14 mégapixels, 1/2,8” Sony STARVIS Angle de vision (objectif) Environ 140° (en diagonale) Vidéo QHD (2560 x 1440) / H.264 / extension de fichier : MP4 Fréquence d’images...
  • Page 39 60,0 x 25,0 x 33,7 mm / 23,7 g Dimensions/Poids 2,36 x 0,98 x 1,32 inch / 0,052 lb Capteur de la caméra 2,0, méga pixels, 1/ 2,9’’ Angle de vision (objectif) Environ 130° (en diagonale) Vidéo FHD (1920 x 1080) / H.264 / extension de fichier : MP4 Fréquence d’images Maximum 30 images/s Indicateur DEL...
