Verkada ACC-MNT-LBRAC-1 L-Bracket Install Manual

L-bracket mount
Hide thumbs

Advertisement

Table of Contents

Install Guide
ACC-MNT-LBRAC-1 L-Bracket
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACC-MNT-LBRAC-1 L-Bracket and is the answer not in the manual?

Questions and answers

Summary of Contents for Verkada ACC-MNT-LBRAC-1 L-Bracket

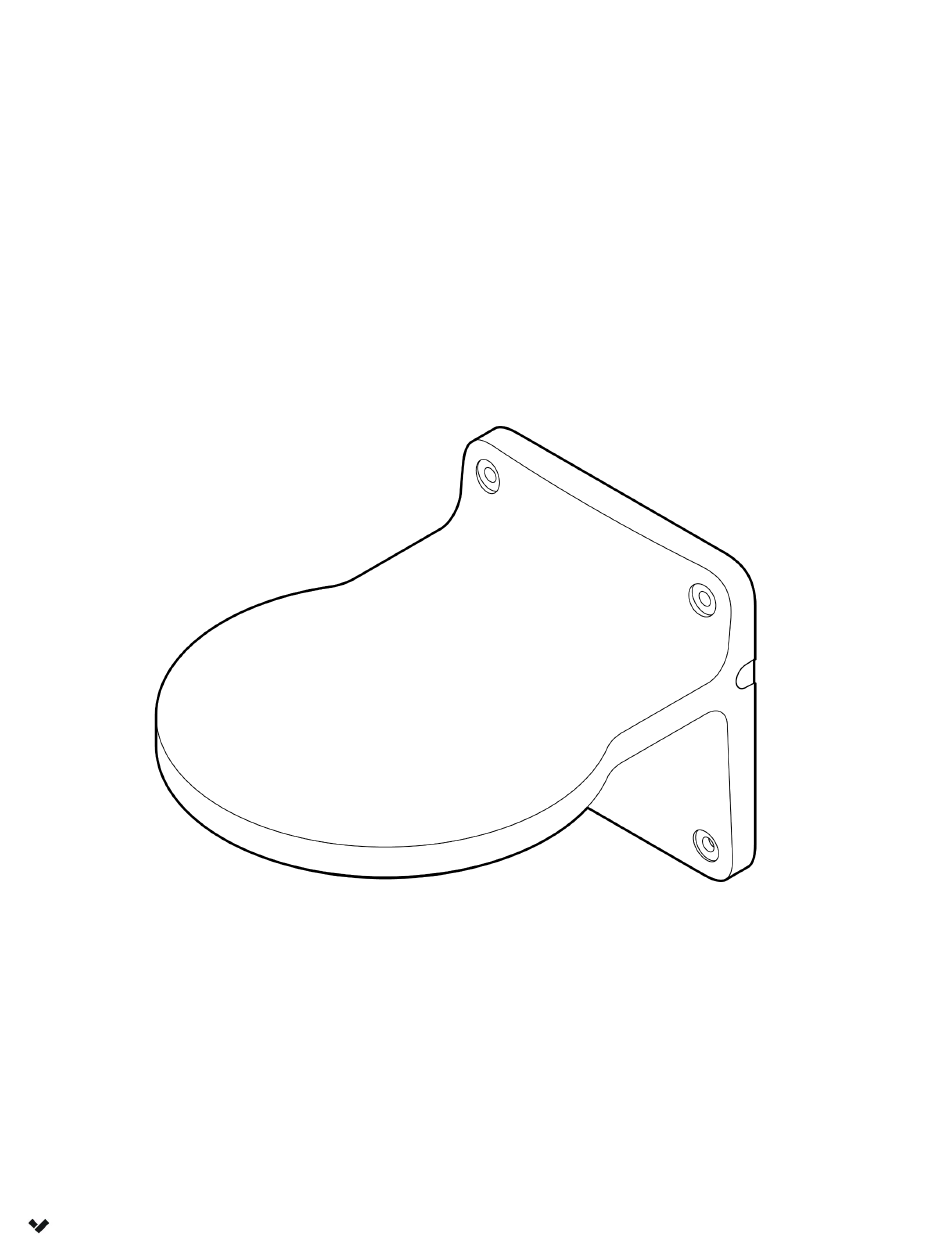

  • Page 1 Install Guide ACC-MNT-LBRAC-1 L-Bracket...

  • Page 2: Product Models

    Verkada product is granted under this document. This document may not be sold, resold, licensed or sublicensed and may not be transferred without Verkada’s prior written consent. No part of this document may be reproduced in whole or in part without the express written consent of Verkada.

  • Page 3: Introduction What's In The Box

    Length: 10mm Drive: 4mm hex (Attached to mount) Length: 13mm Drive: T10 Torx Security What you’ll need Compatible products ● A compatible Verkada product with its For a list of compatible products, please visit: https://docs.verkada.com/docs/accessories- hardware overview.pdf ● A #2 Phillips screwdriver or power drill with a #2 Phillips driver bit ●...
  • Page 4 Introduction Overview Adapter Plate Hole Patterns 4” Junction Box Double Gang Junction Box Single Gang Junction Box 3.5” Junction Box European Junction Box L-Bracket Hole Patterns 4” Junction Box CF83-E CDX2-E, CF81-E CDX2...
  • Page 5 Installation Prepare the Camera Use the provided T10 Torx Security Screwdriver to loosen the screws and lift the cover of the camera. To remove the mount plate, loosen the mount plate screws with a T10 Torx Security Screwdriver and twist the camera counter clockwise.
  • Page 6 Installation Wall Mounting 1/2 Drywall, plaster and wood paneling. For other surface materials, more specialized mounting hardware may be required. Mark the four pilot hole locations in the A-pattern, and drill 1/8” pilot holes. After drilling, clear dust from holes. Insert the wall anchors into the pilot holes until flush.

  • Page 7: Installation Wall Mounting

    Installation Wall Mounting 2/2 Retrieve the camera. Refer to the Preparation and Mounting sections of the camera install guide for accurate cable installation. Align the the camera’s blue mounting slots with the L-Bracket’s thumb screws. Make sure that the camera’s LEDs and Microphone Switch are facing away from the wall.
  • Page 8 Installation Mounting on an Accessory 1/2 Compatible Accessories: Square Junction Box, Pole Mount, and Corner Mount. Align the adapter plate to the Accessory, using hole pattern A. Use the machine screws, provided with the Accessory, to attach the adapter plate. Lead the cable through the Accessory and the L-Bracket.
  • Page 9 Installation Mounting on an Accessory 2/2 Retrieve the camera. Refer to the Preparation and Mounting sections of the camera install guide for accurate cable installation. Align the the camera’s blue mounting slots with the L-Bracket’s thumb screws. Make sure that the camera’s LEDs and Microphone Switch are facing away from the wall.
  • Page 10 Appendix Support Thank you for purchasing this Verkada product. If for any reason you're experiencing issues or need assistance, please contact our 24/7 Technical Support Team immediately. Sincerely, The Verkada Team verkada.com/support...
