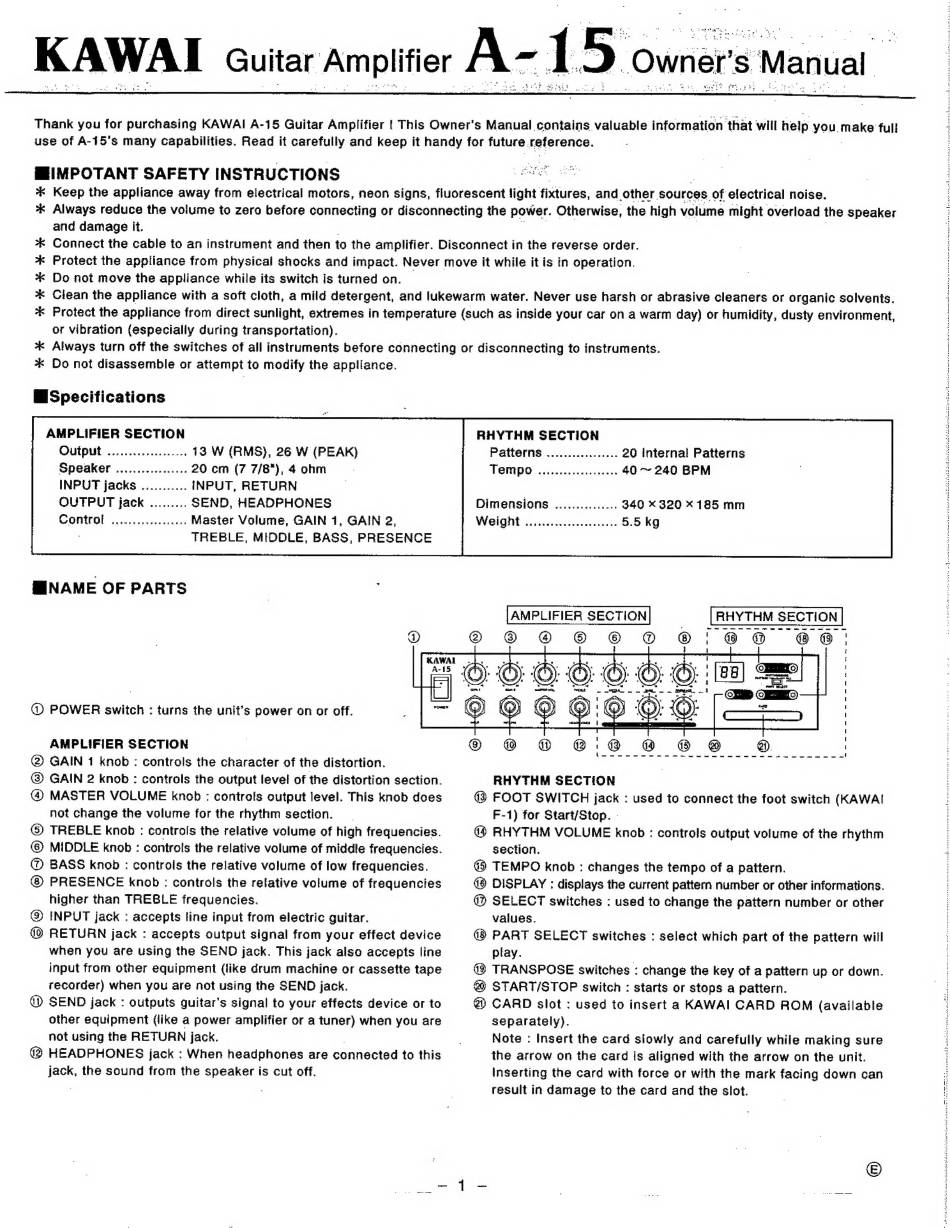

Kawai A-15 Owner's Manual

Owner's Manual
MIIMPOTANT SAFETY INSTRUCTIONS
and damage it.
æ Connect the cable to an instrument and then to the amplifier. Disconnect in the reverse order.
* Protect the appliance from physical shocks and impact. Never move it while it is in operation.
* Do not move the appliance while its switch is turned on.
or vibration (especialiy during transportation).
* Always turn off the switches of all instruments before connecting or disconnecting to instruments.
* Do not disassemble or attempt to modify the appliance.
Specifications
AMPLIFIER SECTION
Output
Speaker
INPUT jacks
13 W (RMS), 26 W (PEAK)
20 cm (7 7/8"), 4 ohm
INPUT, RETURN
SEND, HEADPHONES
Master Volume, GAIN 1, GAIN 2,
TREBLE, MIDDLE, BASS, PRESENCE
OUTPUT jack
Control
ENAME OF PARTS
@ POWER switch : turns the unit's power on or off.
AMPLIFIER SECTION
@ GAIN 1 knob : controls the character of the distortion.
@ GAIN 2 knob : controls the output level of the distortion section.
@ MASTER VOLUME knob : controls output level. This knob does
not change the volume for the rhythm section. _ _
®© TREBLE knob : controls the relative volume of high frequencies.
© MIDDLE knob : controls the relative volume of middle frequencies.
@ BASS knob : controis the relative volume of low frequencies.
PRESENCE knob : controls the relative volume of frequencies
higher than TREBLE frequencies.
@ INPUT jack : accepts line input from electric guitar.
RETURN jack : accepts output signal from your effect device
when you are using the SEND jack. This jack also accepts line
input from other equipment (like drum machine or cassette tape
recorder) when you are not using the SEND jack.
@® SEND jack : outputs guitar's signal to your effects device or to
other equipment (like a power amplifier or a tuner) when you are
not using the RETURN jack.
(2 HEADPHONES jack : When headphones are connected to this
jack, the sound from the speaker is cut off.
RHYTHM SECTION
Patterns 20 internal Patterns
40 ~ 240 BPM
AMPLIFIER SECTION
© © © © © @
RHYTHM SECTION
wee ee ee we ee eee ew ee ee ee ee eee ee eee
RHYTHM SECTION
@3 FOOT SWITCH jack : used to connect the foot switch (KAWAI
F-1) for Start/Stop.
@ RHYTHM VOLUME knob : controls output volume of the rhythm
section.
TEMPO knob : changes the tempo of a pattern.
@ DISPLAY : displays the current pattern number or other informations.
@ SELECT switches : used to change the pattern number or other
values.
(} PART SELECT switches : select which part of the pattern will
play.
TRANSPOSE switches : change the key of a pattern up or down.
@ START/STOP switch : starts or stops a pattern.
@) CARD slot : used to insert a KAWAI CARD ROM (available
separately).
Note : Insert the card slowly and carefully while making sure
the arrow on the card is aligned with the arrow on the unit.
Inserting the card with force or with the mark facing down can
result in damage to the card and the slot.
